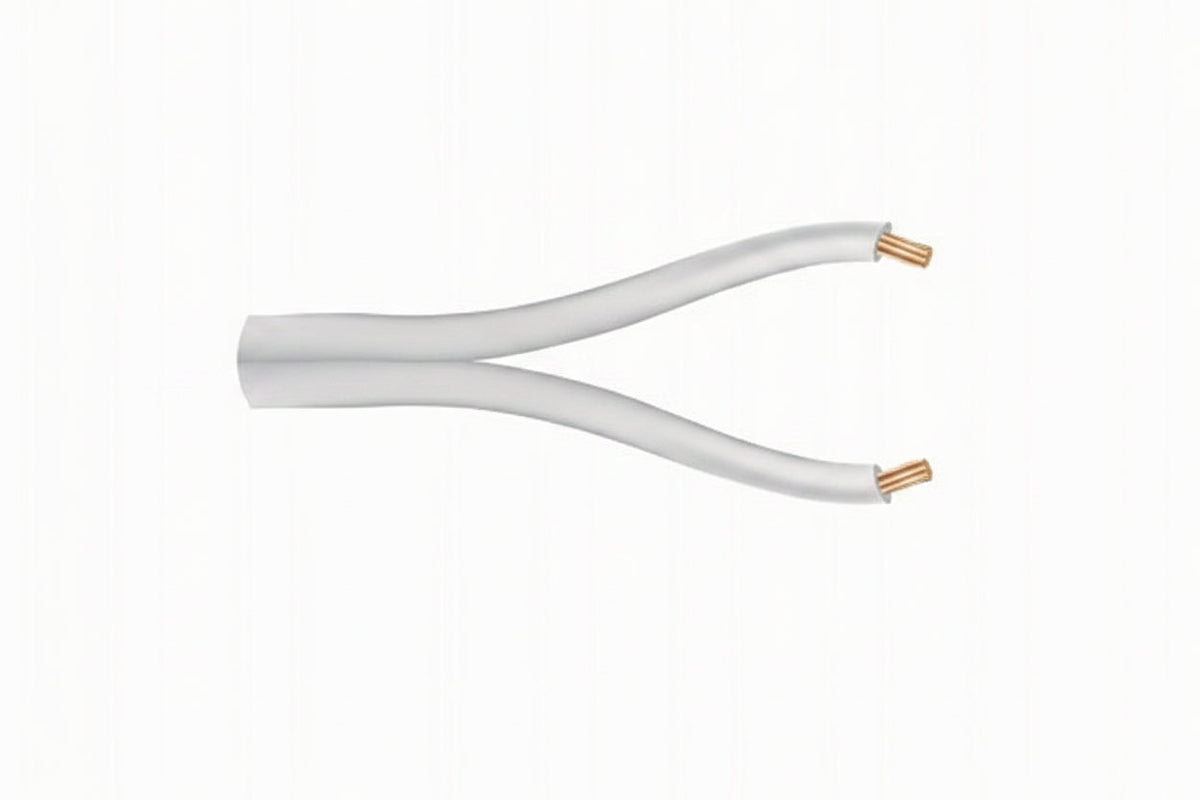

Genesis 10025001 22/2 Stranded Zip Cable, General Purpose, CM, 500' (152.4 m) Reel, White

The Genesis 10025001 is a 22/2 stranded, unshielded general purpose cable that comes on a 500' (152.4 m) reel in white. It is built for control and security wiring, and it suits installers and businesses running low-voltage circuits indoors. Bare copper conductors and printed countdown length markings make it easy to pull, measure and track what is left on the reel.

Key features

• Bare copper conductors give good conductivity and low voltage drop.
• PVC insulation covers the stranded 22 AWG conductors.
• Countdown length markings help you track how much cable you have used and how much remains.
• It is rated for 300 volts and for temperatures from -20 °C to 60 °C.
• The cable is sunlight resistant (UV) rated and is REACH/RoHS compliant.

Specifications

Brand: Genesis

Model: 10025001

Product type: Security & Control Cables

Gauge: 22 AWG

Number of conductors: 2

Number of pairs: 1

Solid or stranded: Stranded

Conductor material: Bare copper

Insulation material: PVC

Rating: CM

Length and packaging: 500' (152.4 m) reel

Shielding: No

Armored: No

Indoor/Outdoor: Indoor

Color: White

Voltage rating: 300 V

Temperature rating: -20 °C to 60 °C

Environmental certification: RoHS

TAA compliant: Yes

Country of origin: US

Weight: 3.90 lb

Installation notes

Use the countdown markings to plan each run and cut to length with a little slack at each end for terminations. Because the cable is unshielded, route it away from power wiring where practical to limit interference.
