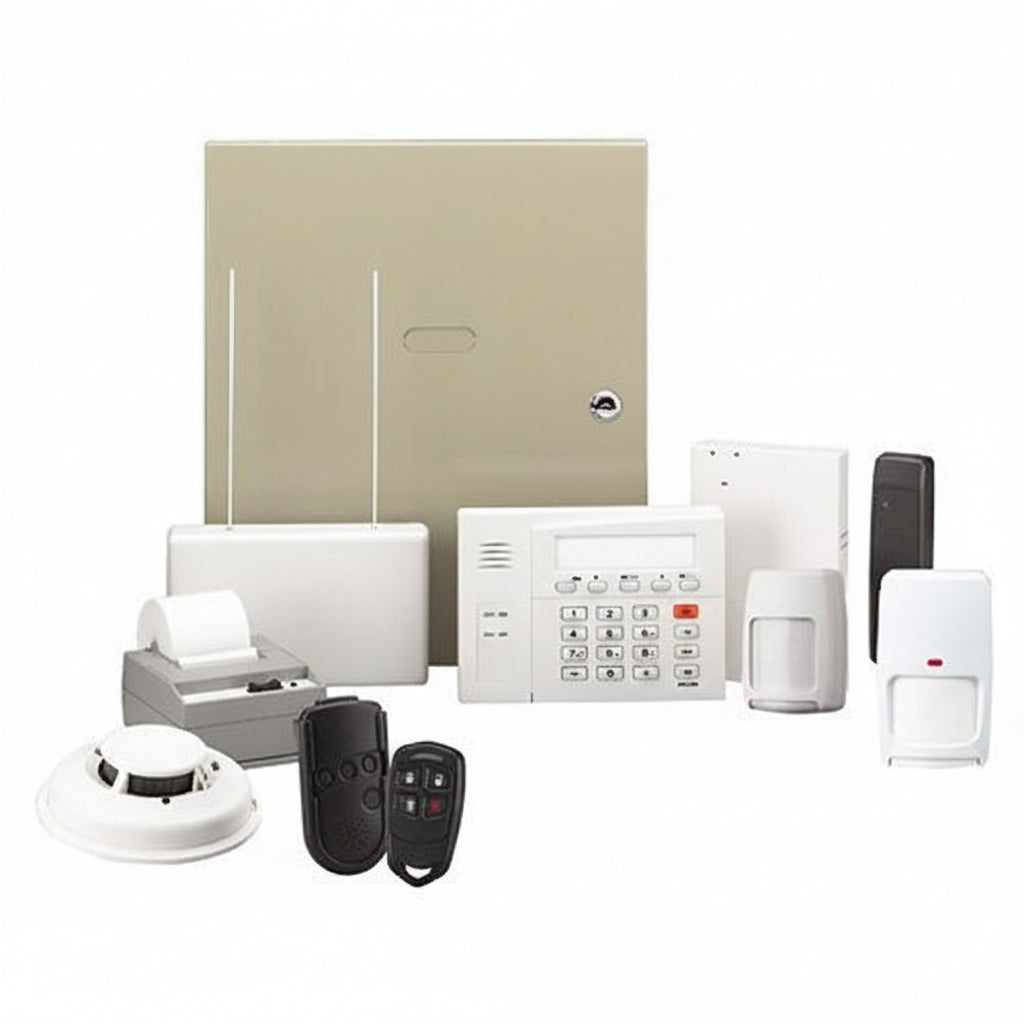

Honeywell Home VISTA-128BPT VISTA Turbo-Series Commercial Burglary Alarm

The Honeywell Home VISTA-128BPT is a UL Listed commercial burglary alarm control panel from the VISTA Turbo-Series, built for commercial installations that need a lot of zones and flexible partitioning. It combines 9 hardwired zones with a built-in polling loop interface and support for wireless zones, so one panel can cover a large site. Its eight independently controlled partitions and 150 user codes make it a fit for multi-tenant or multi-area buildings.

Key features

• Offers 9 style-B hardwired zones, with up to 119 more zones available through the built-in polling (V-Plex) loop interface.
• Supports up to 127 wireless zones using up to two 5800 series receivers, with fewer available if hardwired or polling loop zones are also used.
• Controls eight partitions independently, each acting as if it had its own separate control.
• Stores 150 user codes across seven authority levels and 32 keypad macro commands per system.
• Keeps a log of up to 512 events.
• Runs up to 16 compatible two-wire smoke detectors on zone 1, and zone 7 can be used for keyswitch arming and disarming.

Specifications

Model: VISTA-128BPT

Brand: Honeywell Home

Product line: VISTA

Product type: Burglar Alarm Communicator

Installation type: Commercial

Connectivity technology: Wired

Number of zones supported: 128

Maximum wireless zones supported: 127

User code storage: 150

Event log: 512 events

Bell circuit: One power-limited circuit, 1.7 A (max) at 12 VDC

Features: Auto-arming

Height: 14.5″

Length: 12.5″

Width: 3.0″

Country of origin: MX

Installation notes

Plan your zone layout before wiring, since the total of hardwired, polling loop and wireless zones shares the panel's overall capacity. Confirm that smoke detectors on zone 1 are compatible two-wire models, and test each partition and zone during commissioning.
