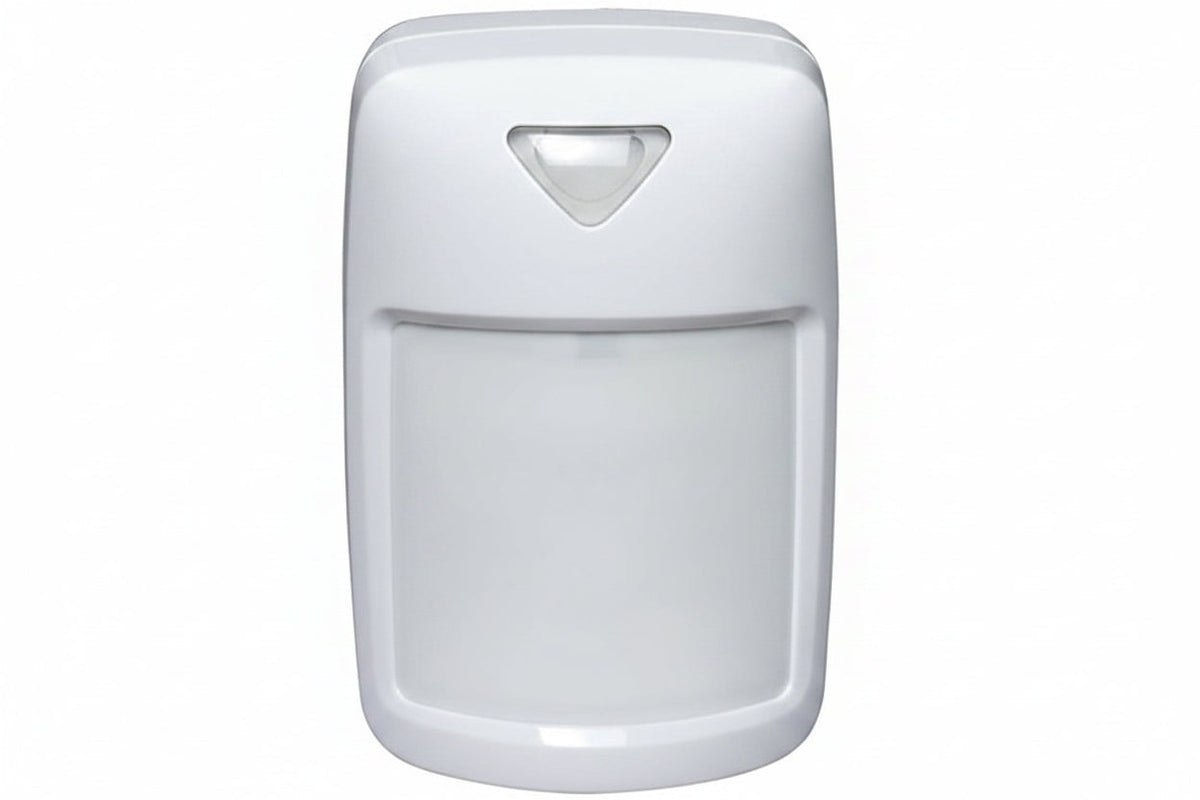

Honeywell Home IS335 Wired PIR Motion Detector with Pet Immunity, 40' 56' Range

The Honeywell Home IS335 is a wired PIR motion detector for indoor security systems, built to catch intruders while keeping false alarms down. It suits installers and homeowners who need reliable coverage in rooms with pets, since pet immunity can be switched on or off with a jumper and ignores animals up to 80lb. Sealed optics, uniform sensitivity across the coverage area and 2,000 lux of white light immunity set it apart.

Key features

• The sealed optical chamber keeps dust and insects from affecting the detector.
• A custom Fresnel lens gives consistent detection whether an intruder is directly in front of the sensor or at the edge of the protected area.
• Wide, long wall-to-wall coverage extends beyond similar products on the market.
• Pet immunity is set with a jumper, and when enabled the detector ignores pets up to 80lb while still responding to human-caused signals.
• A patented black bug guard provides 2,000 lux of white light immunity, helping reduce false alarms from lights, flashlights and reflective objects.
• It mounts on walls or in corners at heights from 7' to 9' (2.1-2.7m).

Specifications

Brand: Honeywell Home

Model: IS335

Product series: IS3000

Product type: Motion sensor

Sensor: Passive infrared (PIR)

Connectivity: Wired

Power source: DC power

Maximum motion sensing distance: 40'

Minimum motion sensing distance: 84″

Mount type: Corner mount

Mounting height: 7' to 9' (2.1-2.7m)

Indoor/outdoor: Indoor

Color: White

Dimensions (H x W x D): 3.4″ x 2.2″ x 1.7″

Weight: 2.15oz

Minimum operating temperature: 14°F

Certifications: ETL Listed to UL 639

Compatibility: Security systems

Country of origin: CN

Installation notes

Mount the detector within the listed height range and choose a wall or corner position that gives the lens a clear view across the protected area. Set the pet immunity jumper before commissioning, and keep the detector away from direct light sources and anything that could cause false triggers during walk testing.
