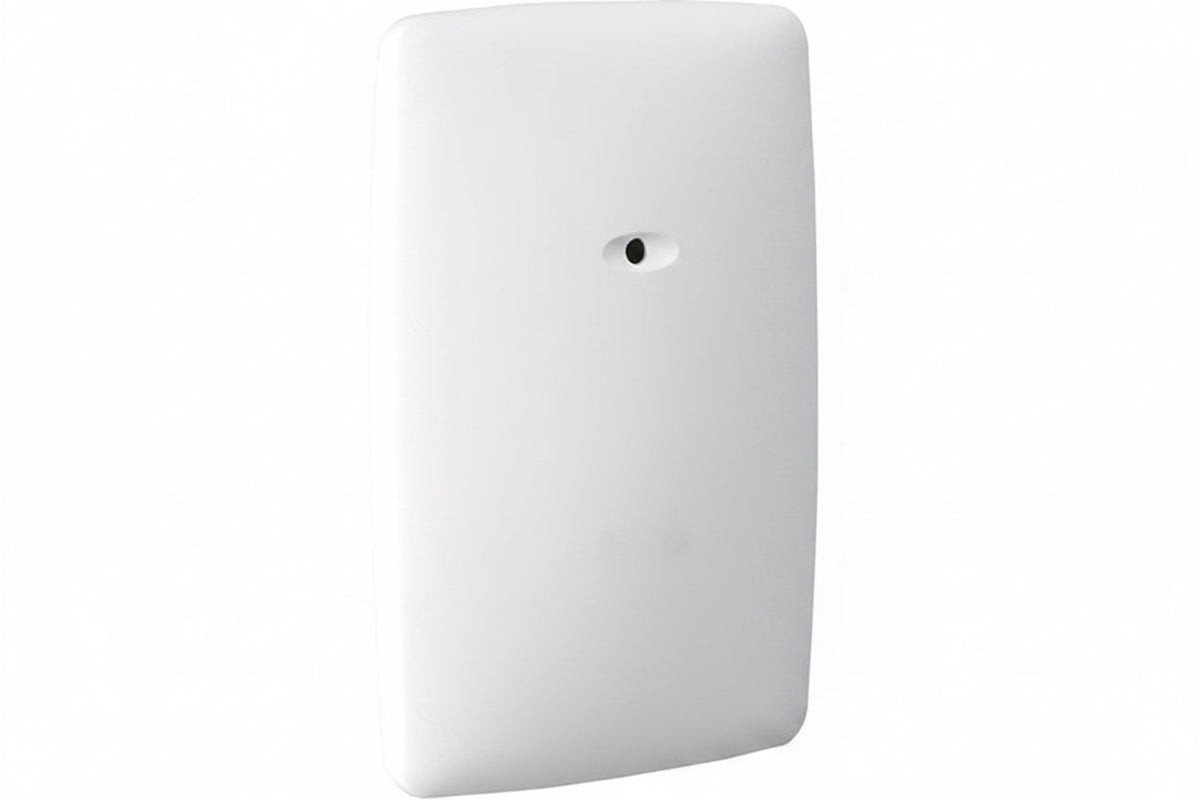

Honeywell Home FG1625T FlexGuard Glassbreak Detector with Tamper, 25' Range

The Honeywell Home FG1625T (model 0-001-027-02) is a wired FlexGuard glassbreak detector with a built-in tamper switch. It listens for the sound of breaking glass within a 25' operating audio range, which makes it a fit for installers and homeowners protecting rooms with windows or glass doors. Selectable sensitivity and a patented remote test mode stand out for setup and commissioning.

Key features

• A green/red LED indicator shows detector status.
• It is UL and ULC listed.
• The operating audio range is 25'.
• A screw retention feature simplifies installation.
• The tamperproof design guards against tampering.
• The FlexCore signal processor uses multiple domain signal analysis and is sensitive to ultra low frequencies.

Specifications

Brand: Honeywell

Model: 0-001-027-02

Product Model: FG1625

Product Name: FG-1625T Audio Detector

Product Line: FlexGuard

Product Type: Glass Break Detector

Application/Usage: Security System Sensors

Operating Audio Range: 25'

Mount Type: Wall Mount

Color: White

Material: ABS

Width: 2.80″

Height: 4.50″

Depth: 0.90″

Operating Temperature: 14°F to 122°F (-10°C to 50°C)

Certifications: UL approved; UL and ULC listed

Energy Star: No

Country of Origin: HK

Installation notes

Mount the detector on a wall with a clear line of sight to the glass it protects, and keep it within its rated 25' range. Use the selectable sensitivity and the remote test mode to confirm coverage during commissioning, and leave the tamper circuit wired into the zone.
