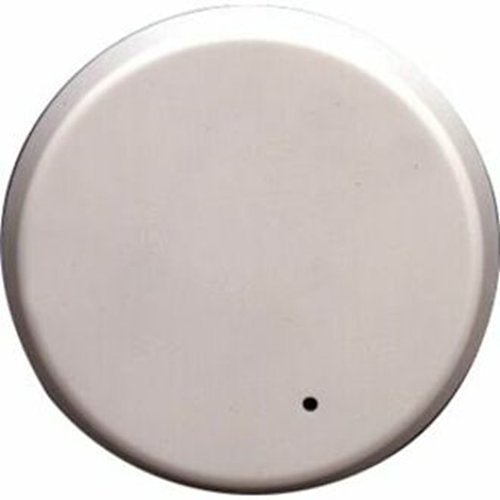

Honeywell Home FG1625R FlexGuard Glassbreak Detector with Round Case, 25' Range

The Honeywell Home FG1625R FlexGuard (model 0-001-031-01) is a wired, ceiling-mount glassbreak detector that listens for the sound of breaking glass as part of a security system. It suits installers and property owners who need to cover windows and glass doors from a single round, white, surface-mount unit. It has a 25' maximum range with no minimum range, and it is sensitive to ultra low frequencies.

Key features

• Responds to ultra low frequencies.
• Can be power-tested with a clap of the hands.
• Has an enclosed PC board, so the PCB is protected from damage during installation.
• Uses a round surface-mount design.
• Reaches out to 25' with no minimum range.

Specifications

Brand: Honeywell Home

Model: FG1625R

Part number: 0-001-031-01

Product line: FlexGuard

Product type: Glass Break Detector

Mount type: Ceiling Mount

Color: White

Maximum range: 25'

Minimum range: None

Application: Security System Sensors

Certification: UL approved

Operating temperature: 14°F to 122°F (-10°C to 50°C)

Weight: 4.50 oz

Country of origin: CN

Installation notes

Mount the detector on the ceiling with the glass you want to protect inside its 25' range, and keep it within the listed operating temperature range. After wiring, clap your hands to confirm the unit is powered before closing up the job.
