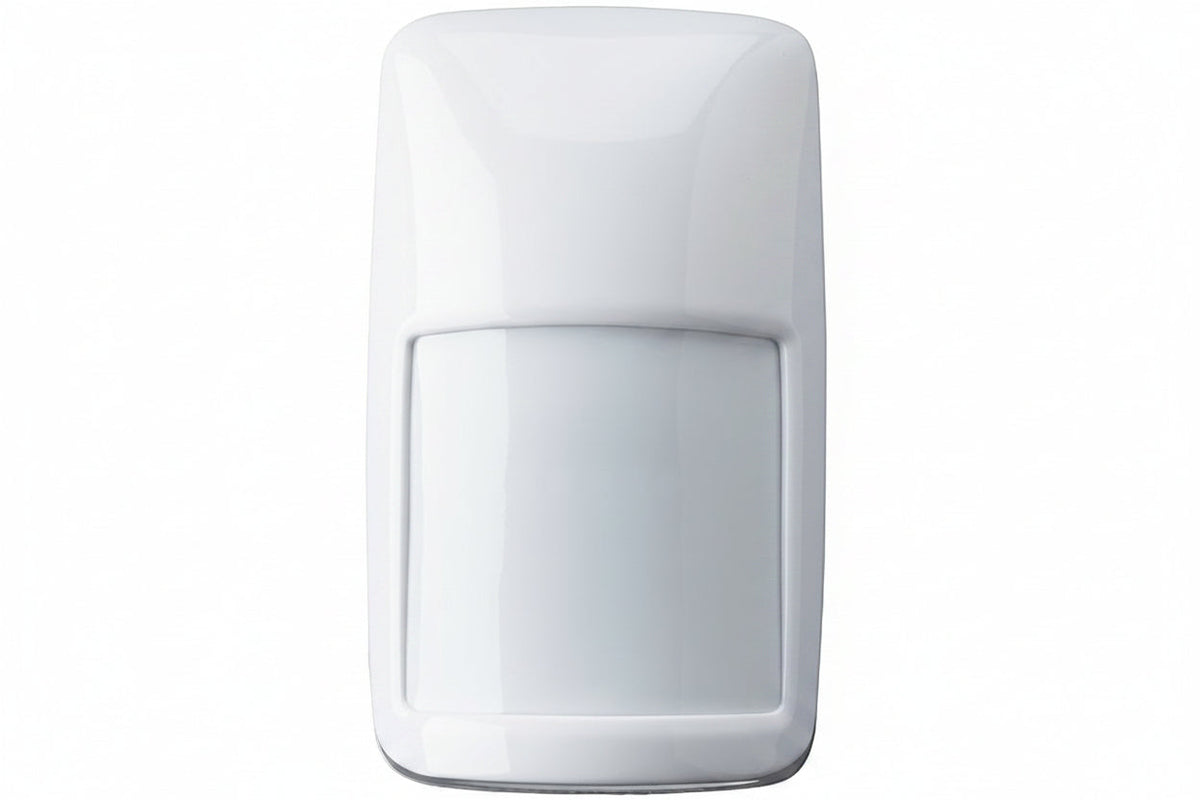

Honeywell Home DT8035V DUAL TEC Motion Sensor, 40' 56' Range

The Honeywell Home DT8035V is a wired dual-technology motion detector from the DUAL TEC line, built for motion detection in security systems. It pairs a passive infrared sensor with 10.52GHz sensing, which suits installers and businesses that want fewer false alarms from a surface-mount ceiling or wall unit. Pet-friendly selectivity, sealed optics and electronics, and UL 639 listing for intrusion-detection units are what stand out.

Key features

• Dual-core signal processing supports reliable detection while resisting false alarms.
• Uniform sensitivity optics and wall-to-wall coverage help the detector see across the protected area.
• Pet-friendly selectivity helps reduce nuisance alarms in homes with animals.
• Sealed optics and electronics help guard the internals of the detector.
• Selectable look down and flexible mountings give you options when positioning the unit.
• Integrated screw retention features keep the housing secured once installed.

Specifications

Brand: Honeywell Home

Model: DT8035V

Product line: DUAL TEC

Product series: DT8000

Product type: Motion Sensor

Application: Motion Detection for Security Systems

Features: Dual Tech

Passive infrared sensor (PIR): Yes

Operating frequency: 10.52GHz

Maximum motion sensing distance: 35'

Connectivity: Wired

Power source: DC Power

Mount type: Surface Mount

Form factor: Surface Mount

Color: White

Material: ABS

Height: 3.9″

Width: 2.2″

Depth: 1.7″

Weight: 3.60oz

Minimum operating temperature: 14°F

Certifications and standards: UL Listed: UL639, Intrusion-detection Units

Environmental certification: UL

Country of origin: CN

Installation notes

Choose a mounting location that gives the detector a clear view of the protected area, and keep it away from heat sources and direct airflow that could trigger the PIR side. Run the DC power and alarm wiring before mounting, then walk-test the coverage after installation and adjust the look-down setting as needed.
