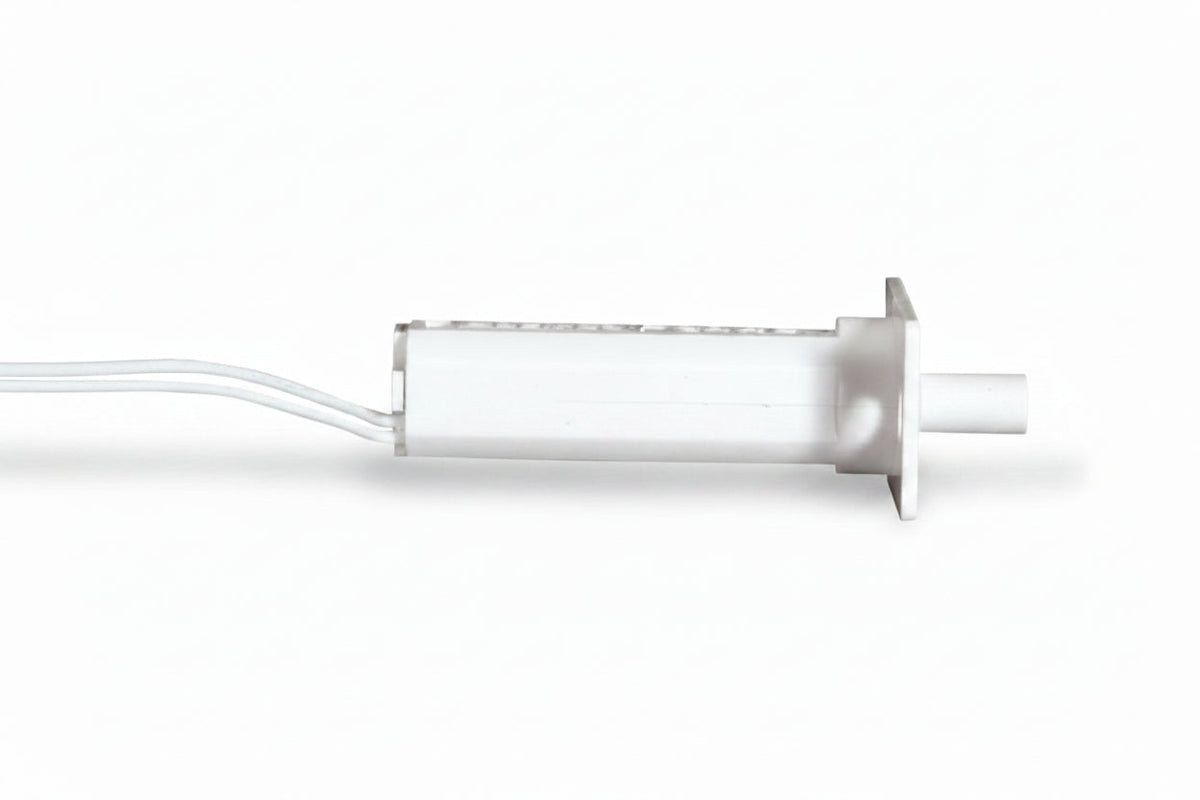

Honeywell Home 955WH Plunger Switch, White

The Honeywell Home 955WH is a white plunger switch that opens or closes a circuit when a door, window or panel moves against it. It suits installers who need a simple SPST closed-circuit switch for security sensing, or as a tamper switch on a bell/siren box or control panel. The recessed mount and its use as a tamper switch with the optional Honeywell 28-2 bracket are what set it apart.

Key features

• Works as a swinging door switch.
• Can control HV AC, security and other devices through preset events and actions.
• Can serve as a tamper switch for a bell/siren box or control panel when used with the optional Honeywell 28-2 bracket.
• Uses an SPST closed-circuit design.
• Fits windows, bell boxes and control cabinets.
• Helps protect air conditioners and other valuable appliances.

Specifications

Brand: Honeywell Home

Model: 955WH

Product name: 955 Plunger Switch

Product type: Plunger Switch

Color: White

Mount type: Recessed Mount

Switch type: SPST (Single Pole Single Throw)

Contact type: SPST (Single Pole Single Throw)

Application/usage: Security System Sensors

Length: 1.60″

Minimum operating temperature: -40°F

Country of origin: MX

Packaged quantity: 1

Package contents: 955 Plunger Switch, Adjustment Screw

Installation notes

Recess the switch so the plunger meets the door, window or enclosure firmly, and use the adjustment screw to set the plunger position. For tamper use on a bell/siren box or control panel, plan for the optional 28-2 bracket and test the circuit after mounting.
