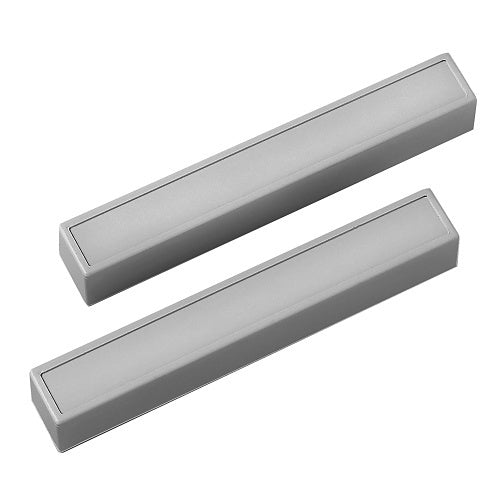

Honeywell Home 950W-GY Surface Mount Wide Gap Magnetic Contact, Gray

The Honeywell Home 950W-GY is a gray, wired surface-mount magnetic contact for security system door and window sensing. It suits installers and homeowners who want a tidy finish, since it hides the mounting screws and terminals and gives you a place to conceal an end-of-line resistor. Its wide gap of 2-1/4″ (57mm) gives extra tolerance where door or window movement makes a standard gap too tight.

Key features

• Covers the mounting screws and terminals so the finished install looks clean.
• Works well for concealing an end-of-line (EOL) resistor.
• Wide gap of 2-1/4″ (57mm) allows more room between the magnet and the switch.
• Rated for 100mA at 28VDC.
• Single pole, single throw (SPST) contact in a gray finish.

Specifications

Brand: Honeywell Home

Model: 950W-GY

Product type: Magnetic contact

Color: Gray

Mount type: Surface mount

Connectivity: Wired

Power source: DC power

Contact rating: 100mA at 28VDC

Contact type: SPST (Single Pole Single Throw)

Switch type: SPST (Single Pole Single Throw)

Wide gap: 2-1/4″ (57mm)

Standard gap: 1.75″

Length: 4.13″

Width: 0.62″

Height: 0.64″

Minimum operating temperature: -40°F

Application: Security system sensors

Country of origin: MX

Installation notes

Mount the switch on the frame and the magnet on the moving door or window, keeping them aligned within the rated gap. Fit the EOL resistor, if your panel requires one, under the cover while wiring, then walk-test the zone to confirm it opens and closes reliably.
