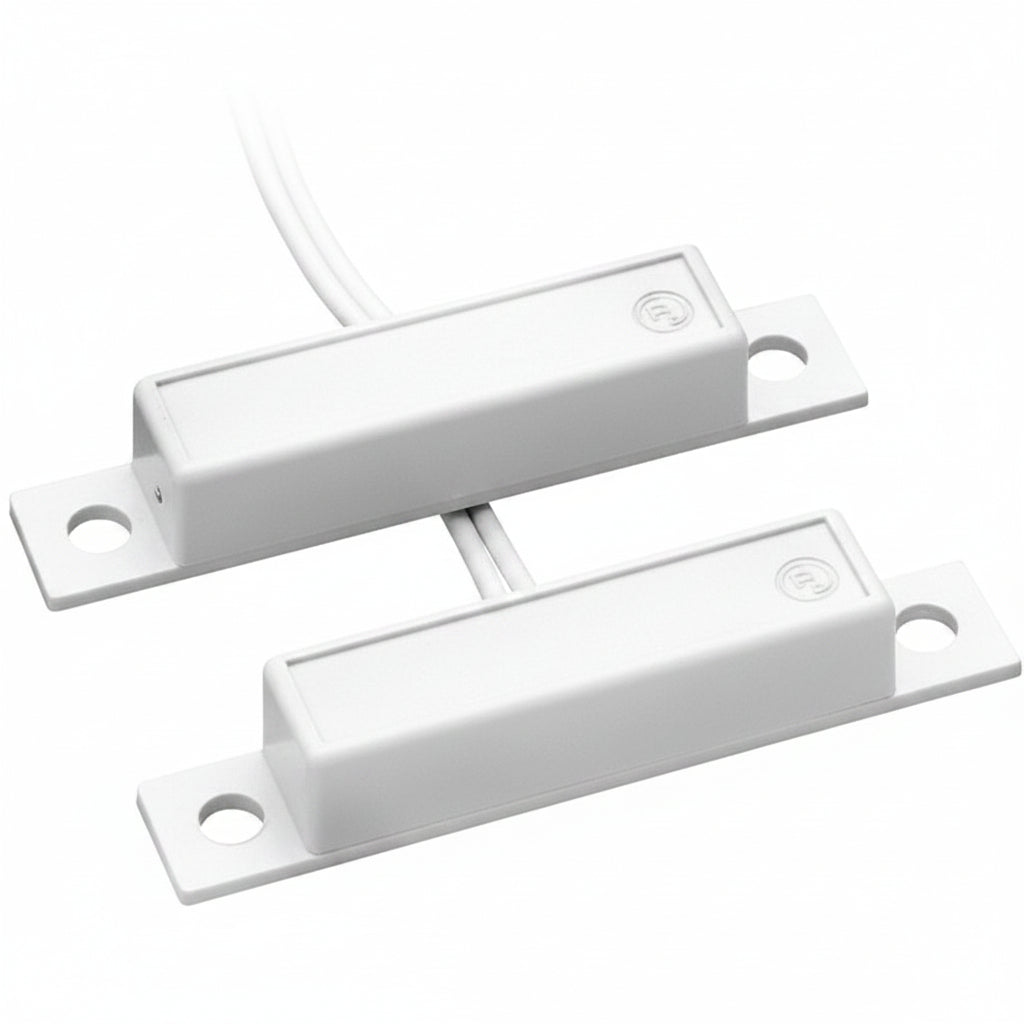

Honeywell Home 949WH Surface Mount Magnetic Contact with Leads, White

The Honeywell Home 949WH is a white, surface-mount magnetic contact with attached leads, used as a door or window sensor on a wired security system. It suits installers and homeowners who want a screw-mounted contact with external test points built in. Its 1-1/4″ (32mm) standard gap and included spacers and mounting screws make it ready to fit on a typical opening.

Key features

• It is a wired magnetic contact that comes with cables already attached.
• It mounts to the surface with screws.
• External test points are standard.
• The standard gap is 32mm.
• Spacers and mounting screws are included.

Specifications

Brand: Honeywell Home

Model: 949WH

Product type: Magnetic Contact

Color: White

Mount type: Surface Mount

Connectivity: Wired

Power source: DC Power

Contact rating: 100mA at 28VDC

Contact type: SPST (Single Pole Single Throw)

Switch type: SPST (Single Pole Single Throw)

Standard gap: 1-1/4″ (32mm)

Cable length: 15.00′

Length: 2.00″

Minimum operating temperature: -40°F

Application: Security System Sensors

Country of origin: MX

RoHS compliant: Restricted Substances Not Used

Package contents: 949WH Magnetic Contact, Spacers, Mounting Screws

Installation notes

Mount the contact and its magnet on the frame and the moving door or window so they line up across the gap, using the included spacers if the surfaces need to sit further apart. Run the leads without sharp bends, and use the external test points to confirm the contact opens and closes before you finish the install.
