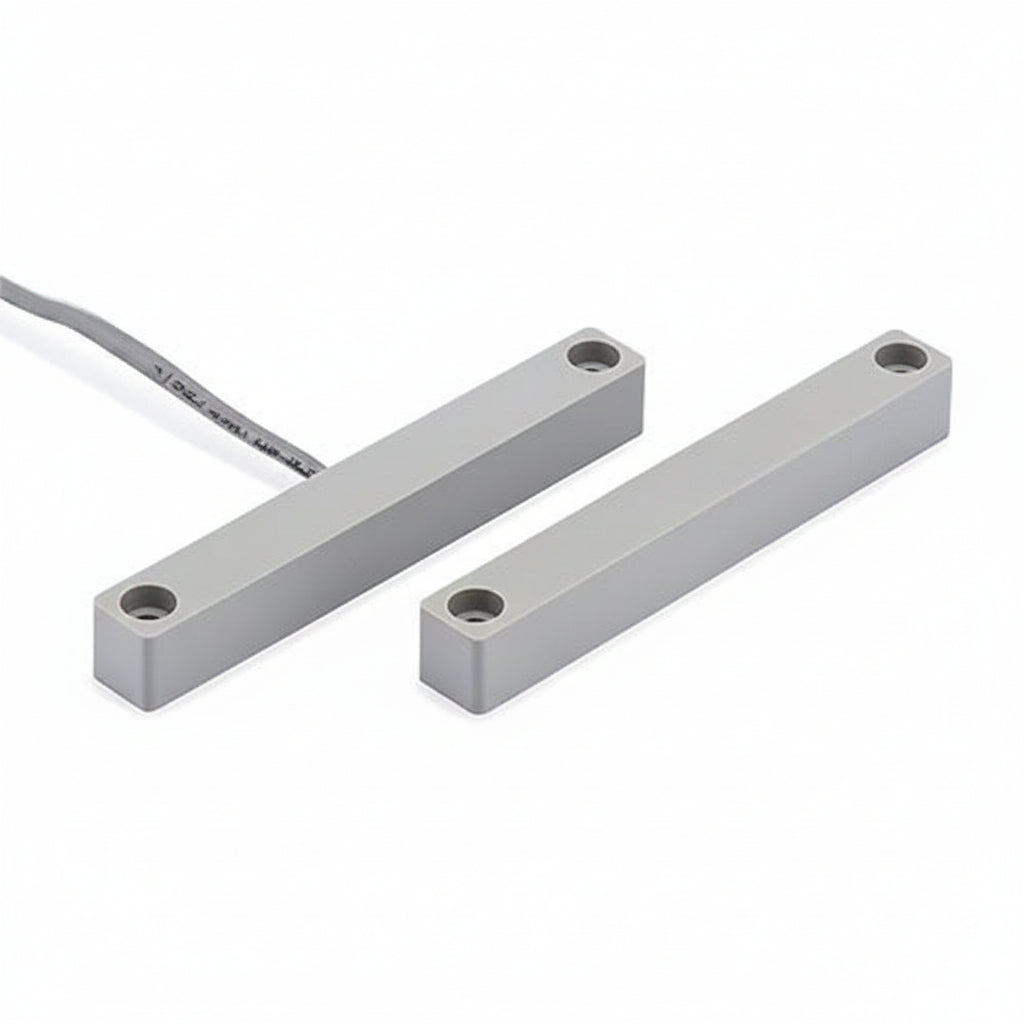

Honeywell Home 7945GY XTP Surface Mount Magnetic Contact with 6' Leads and Surge Protection, 2-1/2" Wide Gap, Gray

The Honeywell Home 7945GY XTP is a gray, surface-mount magnetic contact that monitors doors and windows for a security system. It suits installers and homeowners who want a sealed sensor with surge protection and a lead cable already attached. Its XTP contacts handle surges up to 2400V DC, and the epoxy-sealed body is completely immersion proof.

Key features

• XTP contacts withstand surges up to 2400V DC.
• A 6′ (1.8m) CLII cable comes standard.
• The epoxy-sealed construction makes it completely immersion proof.
• A wide gap of 2-1/2″ (64mm) is standard.
• It uses a Form A (SPST) reed switch.

Specifications

Brand: Honeywell Home

Model: 7945GY

Product type: Magnetic Contact

Color: Gray

Material: Plastic

Mount type: Surface Mount

Application: Security System Sensors

Length: 4.00″

Width: 0.50″

Height: 0.50″

Cable length: 1.80m

Switch type: Form A (SPST) reed

Wide gap: 2-1/2″ (64mm)

Minimum operating temperature: -40°F

Installation notes

Mount the contact on the fixed frame and the magnet on the moving door or window, keeping them aligned and within the rated gap. Plan the cable route before mounting so the 6′ lead reaches the control panel or zone wiring without strain, and test each zone for open and close before finishing.
