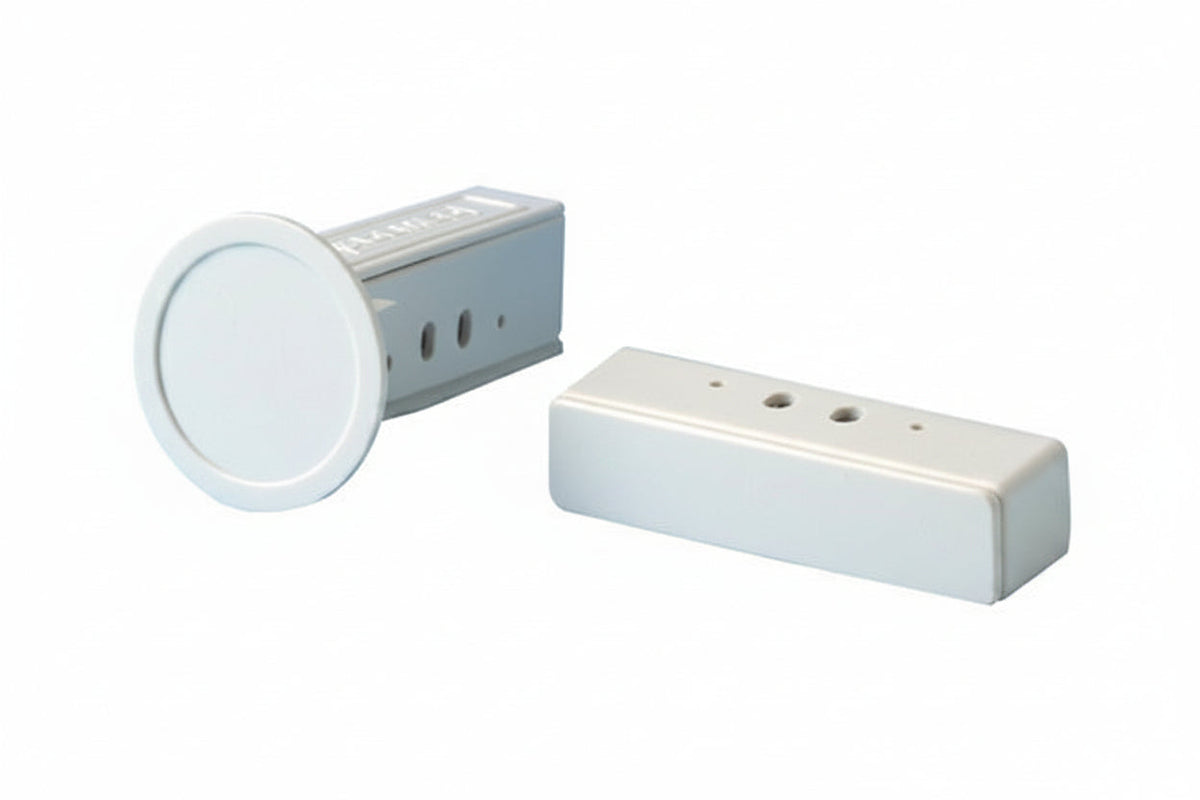

Honeywell Home 7940WH Surface Mount Universal Magnetic Contact with Screw Terminals, 2" Gap, SPST, White

The Honeywell Home 7940WH is a white surface-mount universal magnetic contact for security system sensor applications. It uses a single-pole, single-throw (SPST) switch with screw terminals, and it can be screw mounted, adhesive mounted or recessed, which makes it a flexible choice for installers working across different door and window types. Its standard 2″ gap and insulation displacement terminals, which remove the need for stripping or soldering, are what set it apart.

Key features

• Offers three mounting options: screw mount, adhesive mount or recess.
• Provides a standard SuperWide gap of 2″ (51 mm).
• Can be recessed end-to-end with a 1″ (25 mm) gap.
• Insulation displacement terminals mean no wire stripping or soldering.
• Uses an SPST switch with screw terminals for straightforward wiring.

Specifications

Brand: Honeywell Home

Model: 7940WH

Product Type: Magnetic Contact

Application/Usage: Security System Sensors

Color: White

Mount Type: Recessed Mount

Contact Type: SPST (Single Pole Single Throw)

Switch Type: SPST (Single Pole Single Throw)

Standard Gap: 2.0″

Input Voltage: 28V DC

Input Current: 100mA

Minimum Operating Temperature: -40°F

Height: 0.5″

Width: 0.4″

Country of Origin: MX

RoHS Compliant: Not Evaluated

Package Contents: 7940 Magnetic Contact, Recess Adapter Plugs

Installation notes

Choose the mounting method that suits the frame and door material, and keep the contact and magnet aligned within the rated gap. After wiring, open and close the door or window and confirm the zone reports correctly at the panel before finishing the installation.
