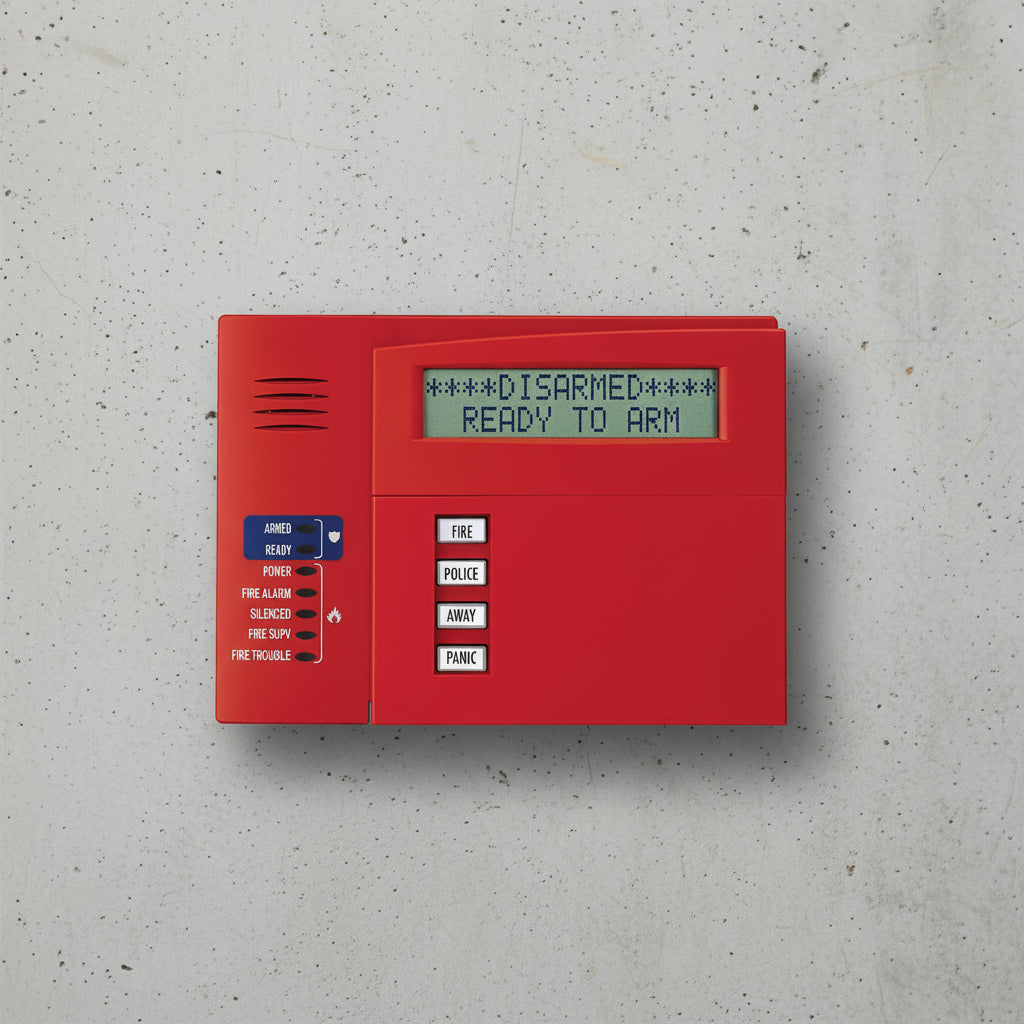

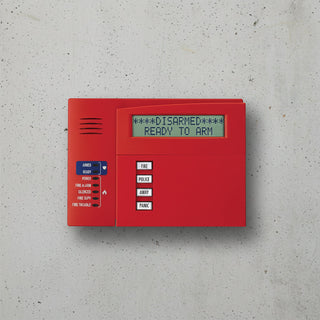

Honeywell Home 6160CR-2 High-Security/Business Fire Alpha Display Keypad, Status LEDs, UL864 Rev Listed

The Honeywell Home 6160CR-2 is a fire alarm alpha display keypad that gives users and installers a place to monitor and operate a compatible fire control panel. It suits professional commercial and high-security fire installations, and it pairs a large, easy-to-read LCD with a built-in sounder and a red removable door. It supports VISTA-32FB, VISTA-128FBP and VISTA-250FBP control panels at the minimum revisions listed by the manufacturer.

Key features

• Four programmable function keys let the system be set up for the actions users need.
• Seven status LEDs show Armed, Fire Alarm, Ready, Power, Silenced, Supervisory and Trouble conditions.
• A built-in high-quality sounder provides audible alerts at the keypad.
• The large display is easy to read.
• The red removable door suits the keypad's fire application.
• It is UL864 Rev 9 Listed, and UL/CUL and residential listed for high-security fire and burglary installations when used with the manufacturer's listed control units.

Specifications

Brand: Honeywell

Model: 6160CR-2

Product type: Keypad Access Device

Color: Red

Display type: LCD

Identification method: PIN/Passcode

Input voltage: 12V DC

Dimensions (W x H x D): 5.250″ x 7.437″ x 1.312″

Compatible control panels: VISTA-32FB Rev 5 and higher, VISTA-128FBP Rev 4 and higher, VISTA-250FBP Rev 4 and higher

Listing: UL864 Rev 9

Application: Commercial Fire System Control

Installation type: Professional Installation

Country of origin: CN

Installation notes

Confirm the control panel model and revision against the supported list before mounting the keypad, and follow the manufacturer's installation instructions for wiring and programming. Place the keypad where staff can see the display and hear the sounder, and check that all status LEDs and function keys respond during commissioning.
