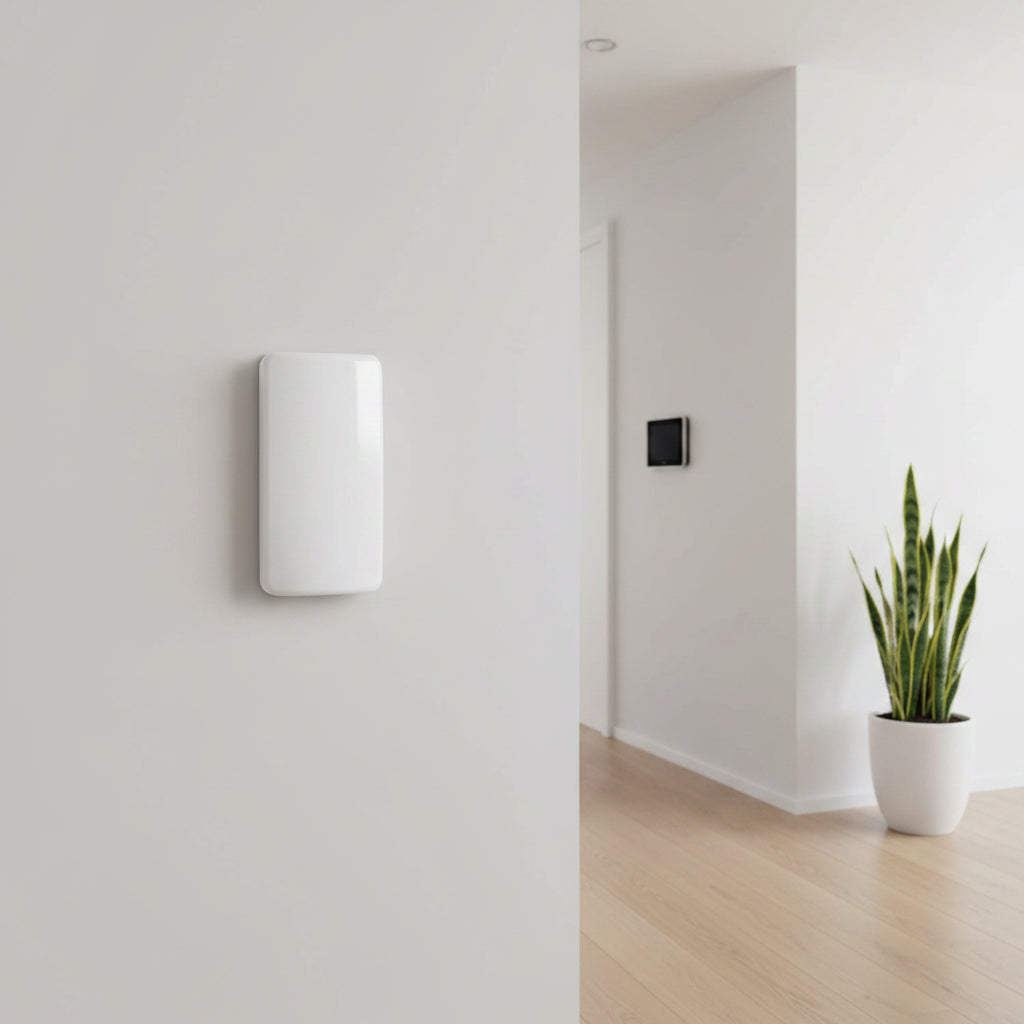

Honeywell Home 5815 Door/Window Transmitter

The Honeywell Home 5815 is a wireless door and window transmitter from the 5800 line, made to report the open or closed state of a door or window to a compatible security system. It suits residential installations and is part of the VISTA series. It has a slim white body with two reed switches and sends supervisory, tamper and low battery messages.

Key features

• The sleek, compact white housing measures 3″ H x 1-1/2″ W x 7/8″ D.
• Two reed switches are built in.
• It sends supervisory, tamper and low battery messages to the system.
• A supervised, replaceable CR123 battery is included.
• It connects wirelessly, so no signal cabling is needed.

Specifications

Brand: Honeywell Home

Model: 5815 DW

Product Line: 5800

Product Series: VISTA

Product Type: Security Wireless Transmitter

Application/Usage: Security System Sensors

Installation Type: Residential

Compatibility: Lyric Controller

Connectivity Technology: Wireless

Power Source: Battery

Color: White

Height: 3.00″

Length: 1.50″

Depth: 0.90″

Certifications & Standards: UL Listed, 985 (Residential Fire)

Installation notes

Mount the transmitter on the door or window frame and check that the reed switch lines up with its magnet before fixing anything in place. Enroll it with the system and test the signal from the final mounting spot before you finish the installation.
