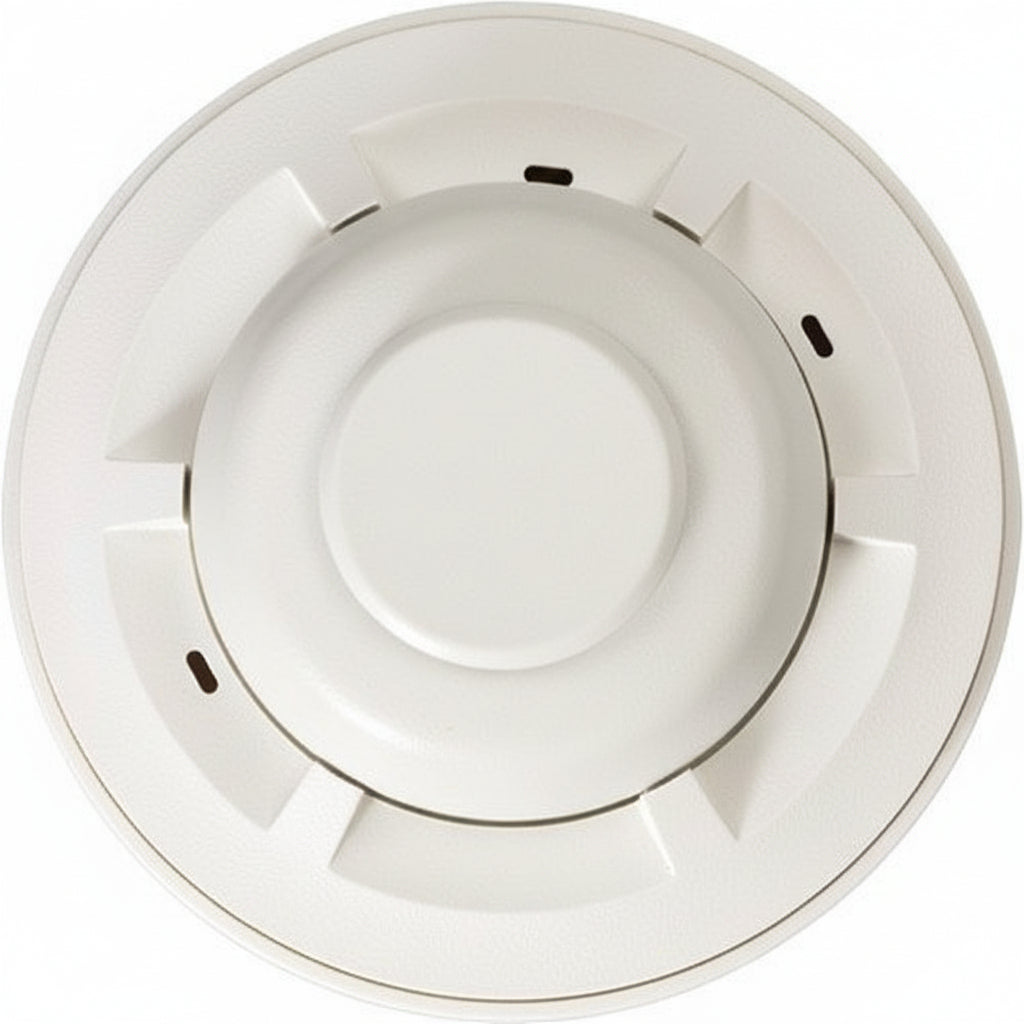

Honeywell Home 5809SS Wireless Fixed Heat and Rate-of-Rise Temperature Sensor

The Honeywell Home 5809SS is a wireless heat detector that combines fixed-heat and rate-of-rise temperature sensing for fire detection. It suits hard-to-wire spots and areas where smoke detection alone isn't a good fit, and it is aimed at installers and homeowners working with a compatible Honeywell wireless system. A built-in transmitter, low-battery reporting and a tamper switch keep the control panel informed about the sensor's condition.

Key features

• A built-in transmitter sends alarm, supervisory and battery condition messages to the system's receiver or control unit.
• It runs on a 3V lithium battery and sends a low battery signal to the control panel when voltage drops too far.
• A tamper switch triggers a trouble signal at the control if the unit is removed from its mounting base.
• It is UL Listed for residential applications, or for commercial use when paired with the 5881EH Receiver.
• The detector can be mounted on a wall or a ceiling.

Specifications

Brand: Honeywell Home

Model: 5809SS

Product Model: 5809 HEAT

Product Series: VISTA

Product Line: 5800

Sensor Type: Heat

Detectable Medium: Fire

Application/Usage: Fire Safety and Protection

Connectivity Technology: Wireless

Power Source: Battery

Battery Size: CR123A

Input Voltage: 3V DC

Mount Type: Ceiling Mount

Color: White

Width: 2.50″

Diameter: 4.50″

Installation Type: Residential

Compatibility: Lyric Controller

UL Listed: Yes

Certifications: UL 985

Certifications & Standards: CSFM

Status Indicators: Yes

Energy Star: No

Country of Origin: MX

Installation notes

Because the unit is battery powered and wireless, no cabling is needed, so you can choose a mounting spot based on where heat detection is needed. Enroll the sensor with the control panel and test that its alarm, low battery and tamper signals reach the receiver before leaving the site.
