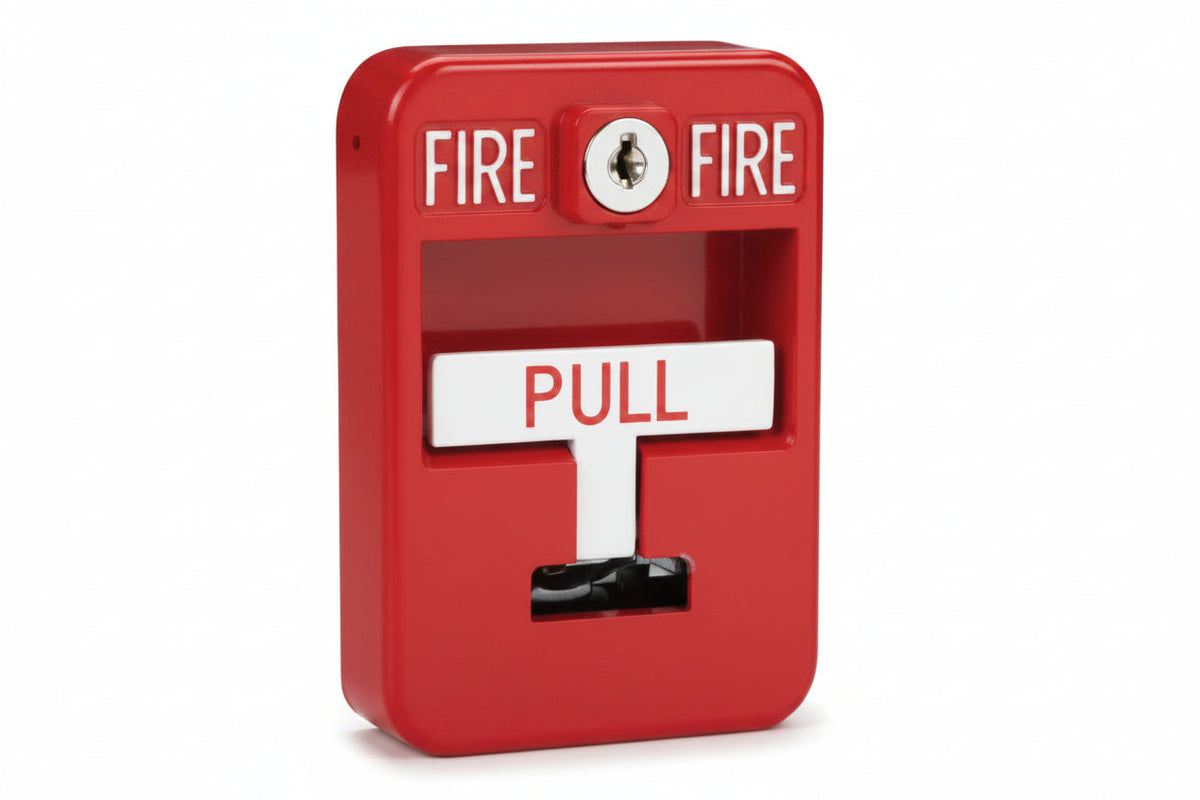

Honeywell Home 5140MPS-1 Manual Fire Alarm Pull Station

The Honeywell Home 5140MPS-1 is a red, single-action manual fire alarm pull station in a cast aluminum housing. It gives occupants a way to trigger a fire alarm system by hand, and it suits installers and facility managers outfitting UL listed fire alarm applications. Key-reset operation and a choice of surface or flush mounting make it straightforward to place and maintain.

Key features

• The die-cast aluminum housing is built for durability.
• A key resets and tests the station, so it can be checked and restored without replacing parts.
• Gold contact SPST switching is wired to screw terminals.
• It is ADA compliant.
• It is UL, CSFM and MEA listed and approved.
• Surface or flush mounting, plus a simple two-wire connection, keep installation flexible and low in complexity.

Specifications

Brand: Honeywell Home

Model: 5140MPS-1

Product type: Pull station

Pull station type: Single action

Application: Fire alarm

Print/message: Fire

Color: Red

Material: Cast aluminum

Mount type: Flush mount

Form factor: Semi-flush mount

Contact type: SPST (single pole single throw)

Features: Key lock

ADA compliant: Yes

Input voltage: 120V AC

Height: 4.74″

Width: 3.12″

Depth: 2.00″

Country of origin: CN

Package contents: 5140MPS-1 pull station, key reset test, terminal block

Installation notes

Choose surface or flush mounting before roughing in, and make sure the box and wall opening suit the style you pick. Land the two conductors firmly on the screw terminals, then use the key to test and reset the station during commissioning to confirm it signals the panel correctly.
