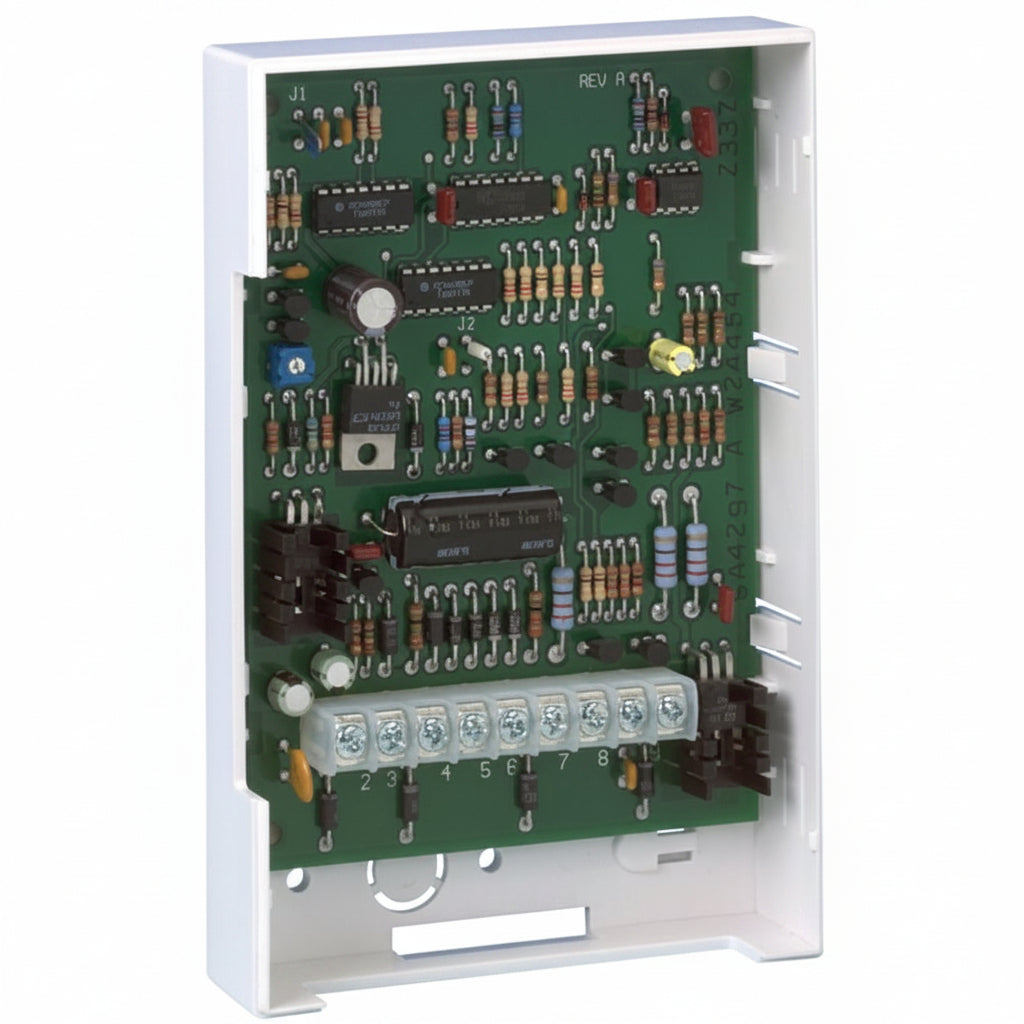

Honeywell Home 4297 V-Plex Loop Isolation/Extender Module

The Honeywell Home 4297 V-Plex Loop Isolation/Extender Module is a V-Plex module for commercial applications that does two jobs: isolating and extending the loop. As an isolation module, it lets installers group selected zones on one loop. It suits installers working on VISTA light commercial security systems, and it is fully supervised.

Key features

• Works with a system that has eight hardwired zones as standard.
• That system can expand to 120 V-Plex addressable points/zones or 128 wireless points/zones.
• The system can control eight separate areas independently, using 8 partitions.
• Supports wireless fire and burglary devices.
• Fully supervised operation.

Specifications

Brand: Honeywell Home

Model: 4297

Product Type: Module

Product Line: V-Plex

Product Series: V-Plex

Features: Fully supervised

Compatibility: VISTA light commercial security systems

Environmental Certification: RoHS

Installation notes

Plan the loop layout before mounting so you know which zones will be grouped behind the module. Confirm the wiring and zone programming at the panel, then test each grouped zone to verify supervision before handing the system over.
