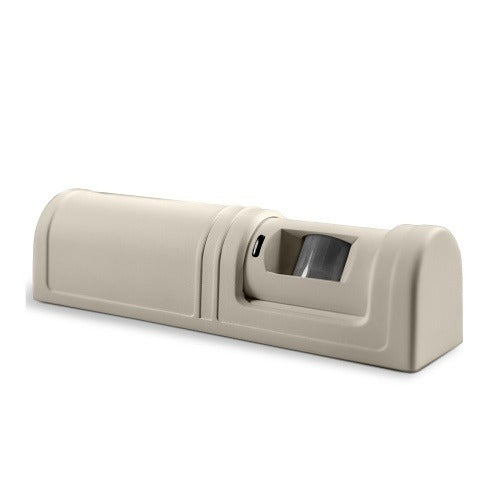

Passive Infrared Request-to-Exit Motion Sensor, 24VDC 2A Relay Output REXHP, Adjustable Range & Hold Time for Access Control

The REXHP is a high-performance request-to-exit device designed for access control and egress security applications. It uses passive infrared detection with qualified motion analysis to reliably trigger door release mechanisms when personnel approach exits. The sensor's adjustable range and customizable hold time (0.5–64 seconds) make it suitable for varied installation requirements, from tight hallways to larger atriums.

Built with advanced security features, the REXHP delivers a normally-closed or normally-open dry contact output rated at 24VDC, 2A maximum, compatible with standard access control systems. The device supports 12V and 24V DC operation and includes self-discovery and power monitoring capabilities for system integration and diagnostics.

This model replaces the earlier REXM unit and comes with a 5-year limited warranty. Manufactured in the United States, it is designed for professional security and access control installations where reliable motion detection at exit points is essential.

• Passive infrared motion sensor with qualified analysis for precise exit detection and reduced false triggers
• Adjustable range settings accommodate both short-range confined spaces and long-range open areas
• Customizable hold time from 0.5 to 64 seconds to match specific access control workflows
• Dry contact relay output (NC/NO) rated 24VDC 2A for direct integration with standard access control panels
• Dual voltage operation (12V and 24V DC) and self-discovery simplify installation and system integration
• 5-year limited warranty and USA manufacture ensure long-term reliability
