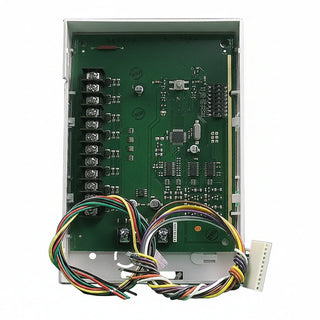

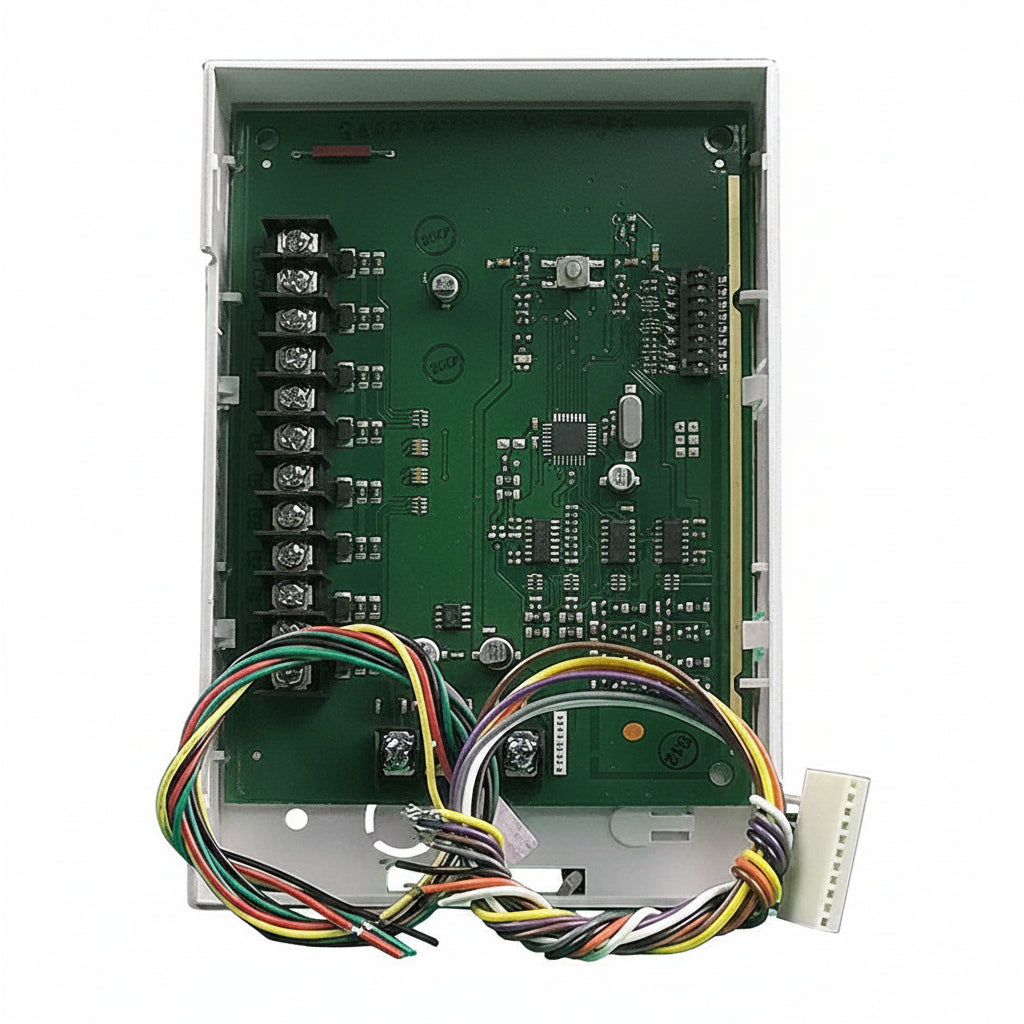

Honeywell Home 4229 Wired 8-Zone Expander Relay Board for ECP Bus Zone VISTA Control Panels

The Honeywell Home 4229 is a wired eight-zone expander relay board that adds more protection zones and two programmable relay outputs to a VISTA control panel on the ECP bus. It suits installers and system owners who have run out of zones on a VISTA-20HW or VISTA-21iP and want to extend the system without replacing the panel. It can sit anywhere along the four-wire addressable ECP bus, and it ships with the eight 1K end-of-line resistors the zones need.

Key features

• Adds up to eight Class B zone inputs to an ECP bus addressable system.
• Each zone is supervised for open, shorted or normal circuit conditions.
• Class B loops allow a broad 300 ohm tolerance.
• Two on-board programmable Form C relays provide up to two relay outputs.
• Addressing is set with simple DIP switches.
• Connects to the control's console wires and can be placed anywhere along the ECP bus.

Specifications

Brand: Honeywell Home

Model: 4229

Product type: Zone Expander Module

Product line: VISTA

Connectivity: Wired

Device supported: Control Panel

Compatibility: VISTA-21iP; supported on VISTA-20HW

Mount type: Surface Mount

Form factor: Surface Mount

Environmental certification: RoHS

Zones: 8 end-of-line supervised zones

Relays: 2 on-board programmable Form C

Included: Eight 1K end-of-line resistors

Installation notes

Set the DIP switch address before powering up, and make sure it does not duplicate another device on the ECP bus. Fit a 1K end-of-line resistor at the far end of each zone loop so the supervision works correctly, and test each zone for open and short conditions during commissioning.
