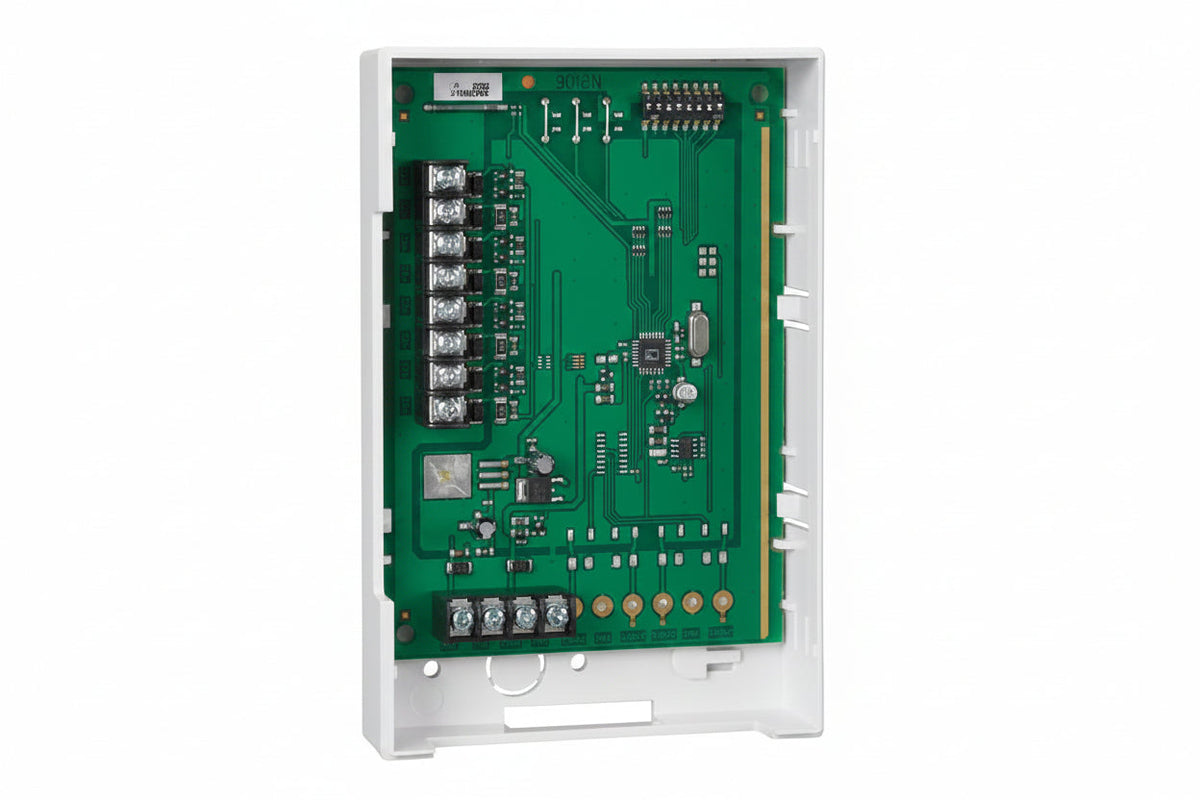

Honeywell Home 4209U V-Plex Group Zoning Remote Point Module

The Honeywell Home 4209U is a V-Plex group zoning remote point module that combines two-wire smoke detectors from one area of a protected premises into group zones. It suits installers working on large or expanded V-Plex systems, and it can be mounted remotely or at the panel. All loops are EOLR supervised, with the 2K end-of-line resistors supplied.

Key features

• Groups two-wire smoke detectors from one area of the premises into group zones.
• Can be installed remotely or at the panel.
• Supervises every loop with an end-of-line resistor.
• Includes the 2K end-of-line resistors.
• Part of the Honeywell Home V-Plex product line.

Specifications

Brand: Honeywell Home

Model: 4209U

Product Line: V-Plex

Product Series: V-Plex

Product Type: Module

Environmental Certification: UL

Country of Origin: MX

RoHS Compliant: Not Evaluated

Installation notes

Install an end-of-line resistor at the end of each loop so the module can supervise it. Decide up front which detectors belong to each group zone, and label the wiring so the zones are easy to trace during commissioning and later service.
