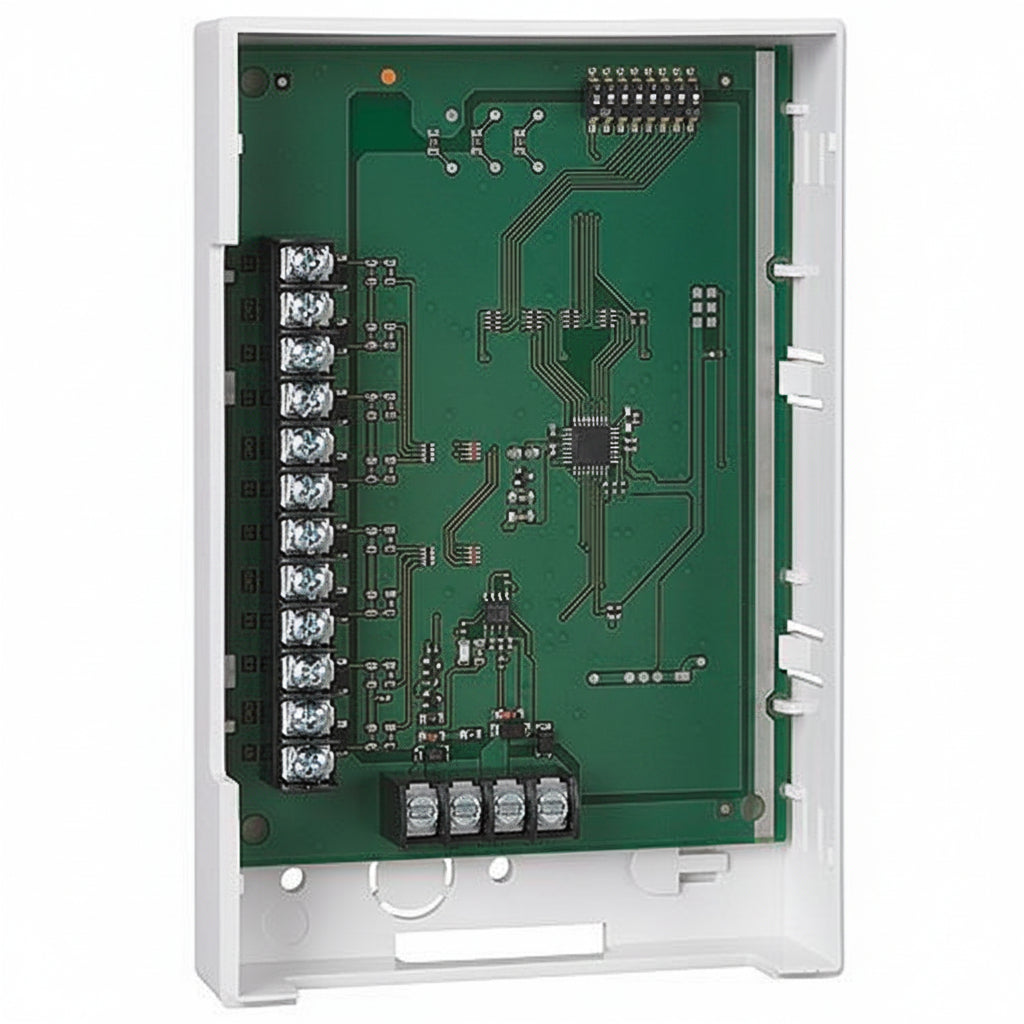

Honeywell Home 4208SN V-Plex Serialized 8-Zone Remote Point Module

The Honeywell 4208SN is a V-Plex serialized eight-zone remote point module that adds eight supervised zones to a V-Plex polling loop. It suits installers expanding a Honeywell system with a controller that supports up to 250 zones. Each zone has its own serial number set by on-board DIP switches, and fault detection on all zones is fast.

Key features

• Works with controls that support up to 250 zones.
• Gives you eight uniquely identified zones, each supervised with an end-of-line resistor; 10K resistors are supplied for all zones.
• Each zone's serial number is assigned with on-board DIP switches.
• Detects faults on all zones within 400ms of occurrence.
• Loops A and B can be programmed for fast 10ms response.
• Cover tamper protection can be enabled or disabled with the on-board DIP switches.

Specifications

Brand: Honeywell

Model: 4208SN

Product Type: Module

Power Source: DC Power

Height: 3.75″

Width: 6.43″

Depth: 0.75″

Installation notes

Set each zone's serial number with the DIP switches before connecting the module to the polling loop, and record the assignments for programming at the control. If you want to reduce current draw on the polling loop, power the module from an external DC supply instead.
