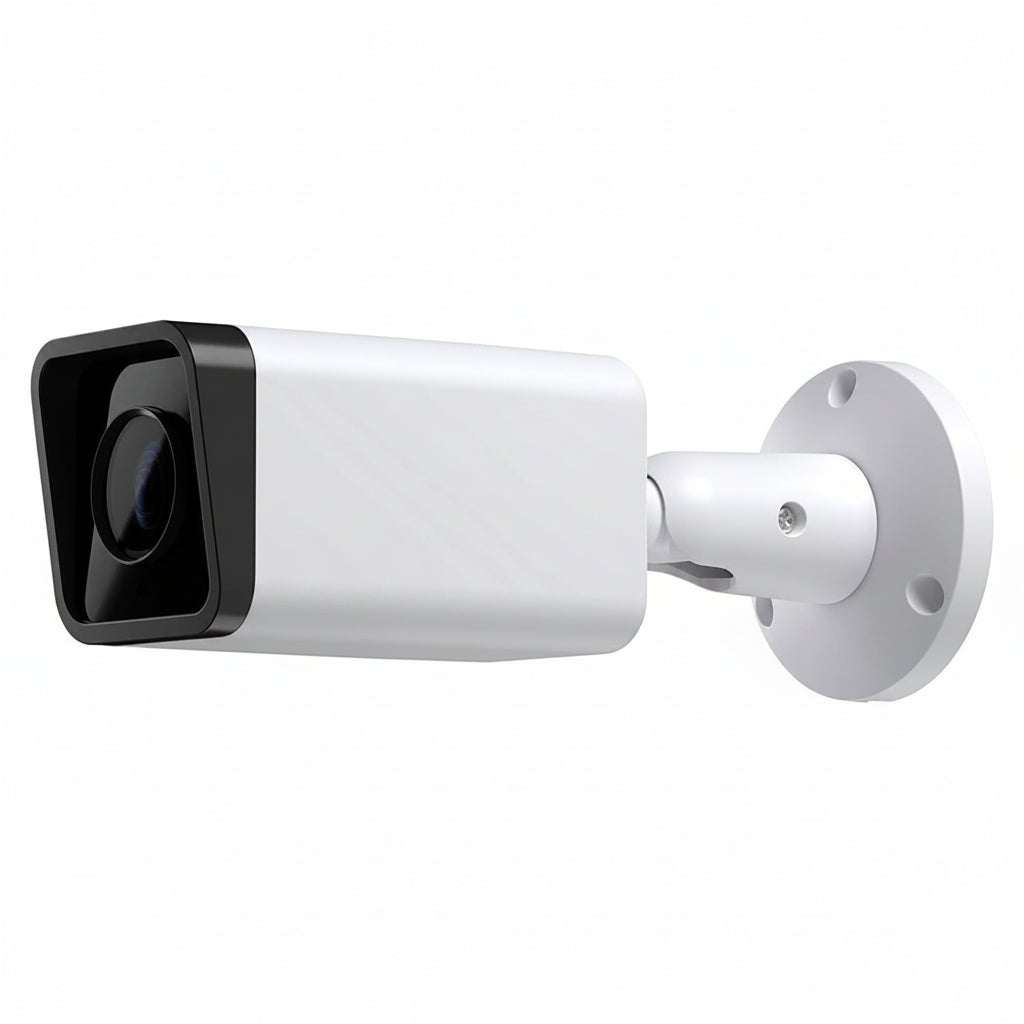

Honeywell HC35WB3R2 35 Series 3MP IP WDR IR MFZ Bullet Camera, 2.7-13.5mm Lens, White

The Honeywell HC35WB3R2 is a 35 Series bullet network camera for outdoor remote surveillance. It has a 3MP sensor, a 2.7-13.5mm varifocal lens with 5x optical zoom, and infrared night vision. It suits installers and businesses that need to adjust the field of view on site and keep watching after dark.

Key features

• The varifocal lens covers 2.7mm to 13.5mm, so you can tune the view at the camera.
• A maximum aperture of f/1.6 lets in more light for clearer images in dim scenes.
• 5x optical zoom helps with identifying and locating objects.
• Infrared night vision reaches up to 196.85 ft while drawing little power.
• Wide Dynamic Range and 2D noise reduction are built in.
• It runs on 12V DC and connects over a wired RJ-45 network port.

Specifications

Model: HC35WB3R2

Brand: Honeywell

Product Series: 35

Product Line: MB Secure

Product Type: Network Camera

Form Factor: Bullet

Color: White

Effective Camera Resolution: 3MP

Image Sensor Type: CMOS

Maximum Frame Rate: 30fps

Lens Type: Varifocal

Lens Included: Yes

Focal Length: 2.7-13.5mm

Optical Zoom: 5.0x

Maximum Aperture: f/1.6

Minimum Aperture: f/3.3

Field of View (Horizontal): 81.0°

Field of View (Vertical): 44.00°

Shortest Shutter Speed: 1/32000 Second

Longest Shutter Speed: 1/8 Second

Wide Dynamic Range: Yes

Features: 2D Noise Reduction

Night Vision: Yes

Night Vision Type: NIR Active Illumination

Night Vision Distance: 196.85 ft

Video Formats: MJPEG

Recording Formats: H.264

Video Signal Format: NTSC

Storage Type: SD Card

Connectivity Technology: Wired

Network (RJ-45): Yes

Remote Management: Yes

Input Voltage: 12V DC

Indoor/Outdoor: Outdoor

Mount Type: Corner Mount

Ingress Protection Rating: IP66

Impact Protection Rating: IK10

Durability: Waterproof

Operating Temperature: -40°F to 140°F

Operating Humidity: 90%

Diameter: 3.40″

Weight: 2.03 lb

Environmental Certification: RoHS

RoHS Compliant: Compliant

Country of Origin: VN

Installation notes

Choose a mounting spot with a clear view of the area you need to cover, and set the varifocal lens to the framing you want before closing up the camera. Confirm the 12V DC supply is correct for the camera, and seal the cable entry so the weather protection is not compromised.
