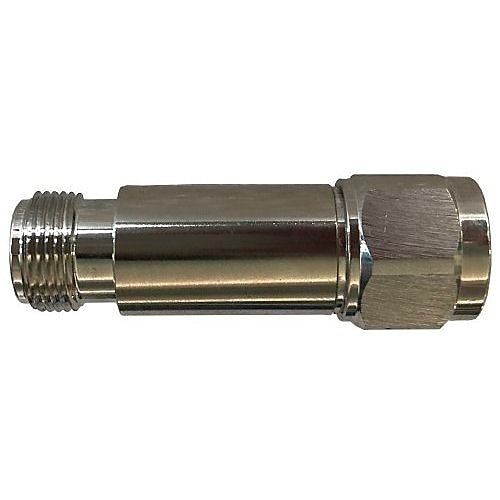

Honeywell BDA BDA-NATTEN-0510 Fiplex Attentuator, 5W, 10dB, N-Type Connectors

The Honeywell BDA-NATTEN-0510 is a passive coaxial signal attenuator from the Fiplex line, rated for 5W power. It suits installers working on distributed antenna and signal booster systems who need to reduce signal level in a coaxial run. It uses a 50 ohm nominal impedance and N male connectors as standard, with other connector types available on request.

Key features

• Passive design with no power supply needed.
• Built in a coaxial configuration.
• Nominal impedance is 50 ohms.
• Handles a power level of 5W.
• Ships with N male connectors as standard.
• Other connector types can be requested.

Specifications

Brand: Honeywell BDA

Model: BDA-NATTEN-0510

Product Type: Signal Attenuator

Product Line: Fiplex

Power Level: 5W

Nominal Impedance: 50 ohms

Maximum Frequency: 3.00GHz

Country of Origin: CN

Installation notes

Install the attenuator in line with the coaxial cable and make sure the N connectors are fully seated and tight to keep the connection reliable. Confirm the signal levels after installation, and keep the power passing through it within the 5W rating.
