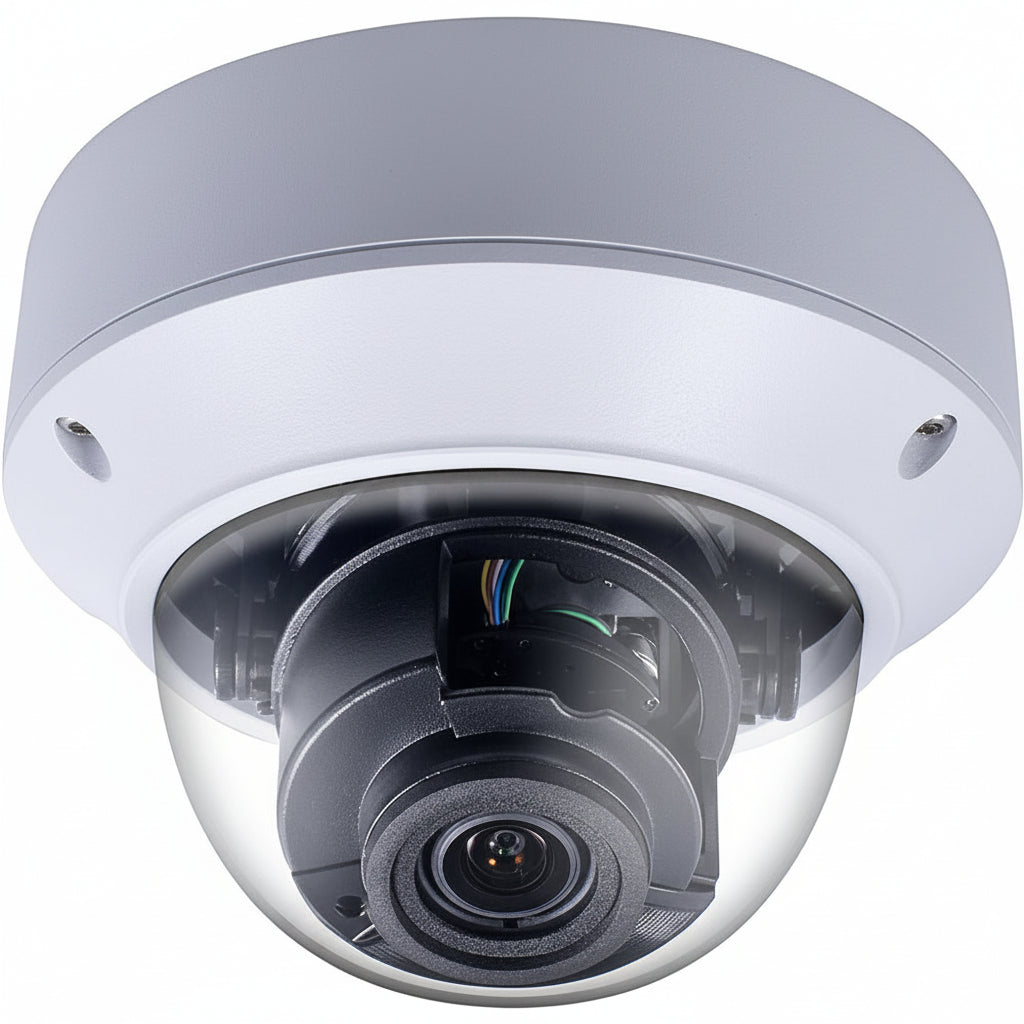

GeoVision GV-TVD8810 8MP AI H.265 Super Low Lux WDR Pro IR Vandal Proof IP Dome Camera, 2.8-12mm Motorized Lens, White

The GeoVision GV-TVD8810 (model 125-TVD8810-0000) is an 8MP outdoor IP dome camera with a motorized 2.8-12mm varifocal lens, built for around-the-clock surveillance in white. It adds AI deep learning that classifies humans and vehicles for perimeter protection, so it suits installers and businesses that want fewer false alerts at a fence line or yard. A low-light sensor, built-in infrared and an IK10, IP67 housing round out a camera made for exposed locations.

Key features

• AI Perimeter Protection and Classification identifies humans and vehicles.
• A 1/2.8″ progressive scan super low lux CMOS sensor works down to 0.003 lux.
• The motorized varifocal lens lets you adjust focus and zoom remotely.
• Intelligent IR reaches up to 40 m (130′), and the removable IR-cut filter supports day and night operation.
• Wide Dynamic Range Pro helps in scenes with strong contrast.
• Triple streams can be set to H.265, H.264 or MJPEG, with up to 20 fps at 3840 x 2160.

Specifications

Brand: GeoVision

Model: 125-TVD8810-0000

Product Model: GV-TVD8810

Product Type: IP Camera

Form Factor: Dome

Color: White

Effective Camera Resolution: 8MP

Maximum Video Resolution: 3840 x 2160

Image Sensor Type: CMOS

Lens Type: Motorized Varifocal

Focal Length: 2.8-12mm

Lens Mount Type: M14

Maximum Aperture: f/1.6

Shutter Speed: 1 second to 1/100000 second

Wide Dynamic Range: Yes

Night Vision: Yes, Infrared (IR)

Number of IR LEDs: 2

Night Vision Distance: 131.23′

Features: Audio Detection

Storage Type: Memory Card

Remote Management: Yes

Connectivity: Wired, Network (RJ-45)

Input Voltage: 12V DC

Indoor/Outdoor: Outdoor

Ingress Protection Rating: IP67

Impact Protection Rating: IK10

Operating Temperature: -22°F to 140°F

Operating Humidity: 95%

Mount Type: Bracket Mount

Diameter: 5.80″

Weight: 15.87oz

NDAA Compliant: Yes

TAA Compliant: No

Environmental Certification: RoHS

Country of Origin: TW

Package Contents: GV-TVD8810 IR Vandal Proof Dome, Waterproof Rubber Set, Screw Kit, Drill Template Paster, Torx Wrench, Download Guide

Installation notes

Use the included drill template to mark mounting holes, and seal the cable entry with the waterproof rubber set so the housing keeps its weather protection. Set the field of view and focus remotely over the network once the camera is powered and mounted, and aim it away from reflective surfaces close to the IR LEDs to reduce glare at night.
