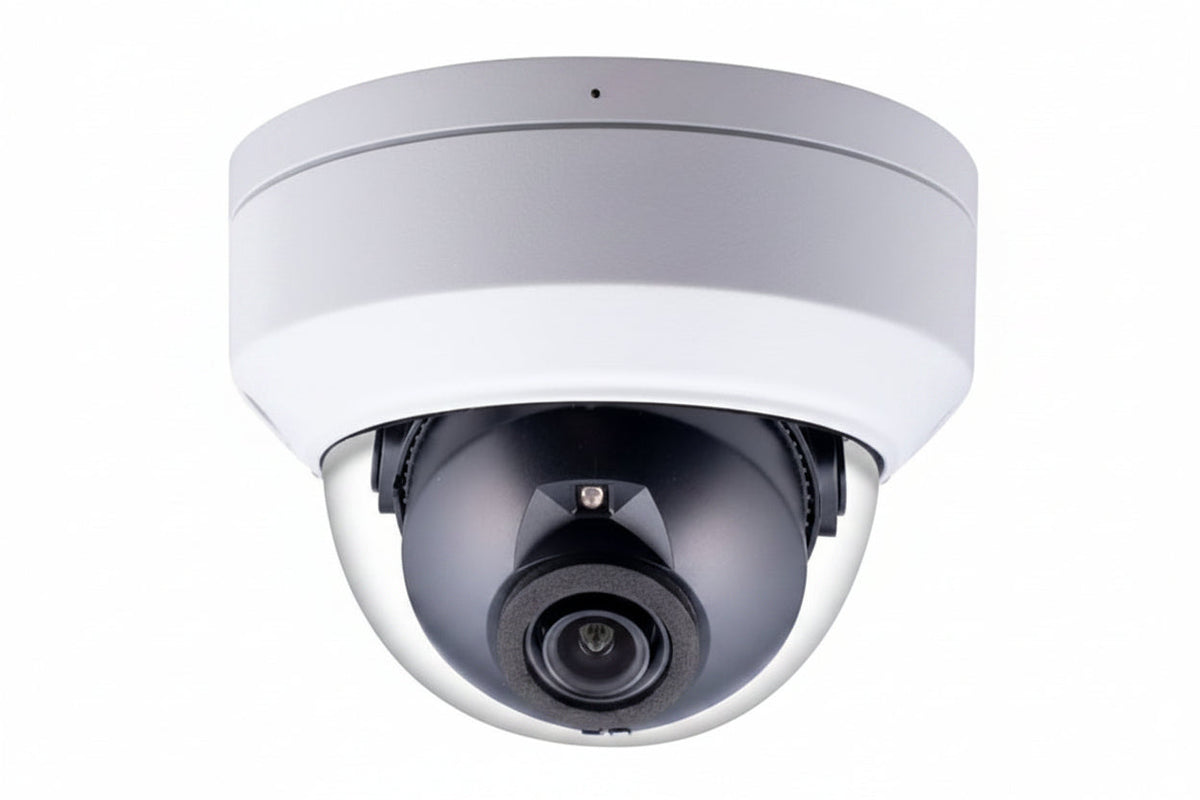

GeoVision GV-TDR2705-2F 2MP IP Mini Dome Camera, 2.8mm Fixed Lens, Low Lux WDR, White

The GeoVision GV-TDR2705-2F (model 125-TDR2705-2F10) is a 2MP H.265 IP mini dome camera for outdoor video surveillance. It pairs a 2.8mm fixed lens with low-light performance down to 0.01 lux, wide dynamic range and built-in infrared night vision. The IK10 impact rating and IP67 ingress rating make it a fit for installers and businesses who need a compact camera that holds up outdoors.

Key features

• Records up to 30 fps at 1920x1080 using a 1/2.7″ progressive scan CMOS sensor.
• Offers dual streams from H.265, H.264 or MJPEG.
• Intelligent IR lights scenes up to 100′ (30m) at night, with a removable IR-cut filter for day and night operation.
• Has a built-in microphone and a micro SD card slot (SD / SDHC / SDXC / UHS-I, Class 10) for local storage.
• Uses a 3-axis mechanism (pan / tilt / rotate) to aim the camera.

Specifications

Brand: GeoVision

Model: 125-TDR2705-2F10

Product name: 2MP H.265 Low Lux WDR Pro IR Mini Fixed Rugged IP Dome

Product type: Dome Camera

Color: White

Indoor/Outdoor: Outdoor

Effective resolution: 2MP

Image sensor type: CMOS

Lens type: Fixed

Focal length: 2.8mm

Maximum aperture: f/2

Maximum frame rate: 30fps

Minimum illumination: 0.0100lux

Wide dynamic range: Yes

Night vision: Yes

Night vision type: Infrared (IR)

Durability: Impact Resistant

Impact protection rating: IK10

Ingress protection rating: IP67

Installation notes

Because the lens is fixed, choose the mounting spot and aim the camera with the 3-axis mechanism during commissioning so the view covers the target area. Avoid placing it where nearby surfaces or glare could reflect the IR illumination back into the lens at night, and fit a compatible micro SD card before final setup if you plan to record locally.
