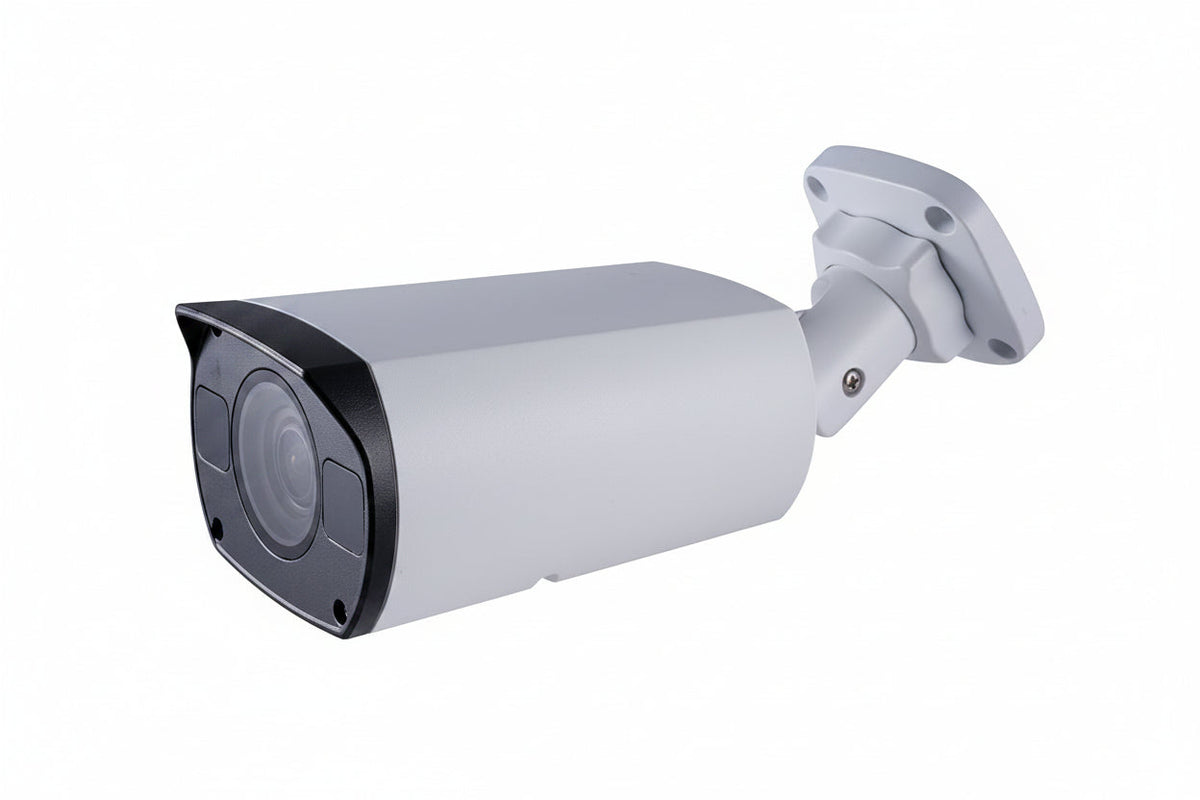

GeoVision GV-TBL4810 4MP Super Low Lux WDR IR Bullet IP Camera, 2.7-13.5mm Lens, White

The GeoVision GV-TBL4810 (model 125-TBL4810-000) is a 4MP outdoor bullet IP camera built for around-the-clock surveillance. Its motorized varifocal lens, 5x optical zoom and infrared illumination make it a fit for installers and businesses who need to adjust the view remotely and keep watching after dark. AI perimeter protection that classifies humans and vehicles, plus an IK10-rated metal casing, are what set it apart.

Key features

• AI deep learning handles perimeter protection and can classify humans and vehicles.
• A 1/3″ progressive scan super low lux CMOS sensor works down to 0.002 lux.
• The motorized varifocal lens lets you adjust focus and zoom remotely.
• Intelligent IR reaches up to 50 m (165 ft), and a removable IR-cut filter supports day and night operation.
• Triple streams are available from H.265, H.264 or MJPEG, at up to 30 fps at 2688 x 1520.
• The metal casing is vandal resistant, rated IK10.

Specifications

Model: GV-TBL4810 (125-TBL4810-000)

Brand: GeoVision

Product type: IP Camera

Form factor: Bullet

Color: White

Effective resolution: 4MP

Maximum video resolution: 2688 x 1520

Maximum frame rate: 30fps

Aspect ratio: 16:9

Image sensor: CMOS

Lens type: Motorized Varifocal

Focal length: 2.70mm to 13.50mm

Optical zoom: 5.0x

Maximum aperture: f/1.2

Lens mount: M14

Wide dynamic range: Yes

Noise reduction: 3D Noise Reduction

Shutter speed: 1 second to 1/100000 second

Night vision: Infrared (IR), 164.04′

Number of IR LEDs: 3

Storage: SD Card

Network: RJ-45, wired

Remote management: Yes

Input voltage: 12V DC

Mount type: Wall Mount

Indoor/Outdoor: Outdoor

Ingress protection: IP67

Impact protection: IK10

Operating temperature: -22°F to 140°F

Operating humidity: 95%

Weight: 2.20lb

NDAA compliant: Yes

TAA compliant: No

Environmental certification: RoHS

Country of origin: CN

Package contents: GV-TBL4810 Bullet, Waterproof Rubber Set, Screw Kit, Drill Template Paster, Download Guide

Installation notes

Use the drill template and waterproof rubber set to seal the cable entry points when wall mounting, and aim the camera away from direct light sources and reflective surfaces to limit IR glare at night. Since the lens is motorized, set the final zoom and focus remotely from the network once the camera is mounted, powered with 12V DC and connected.
