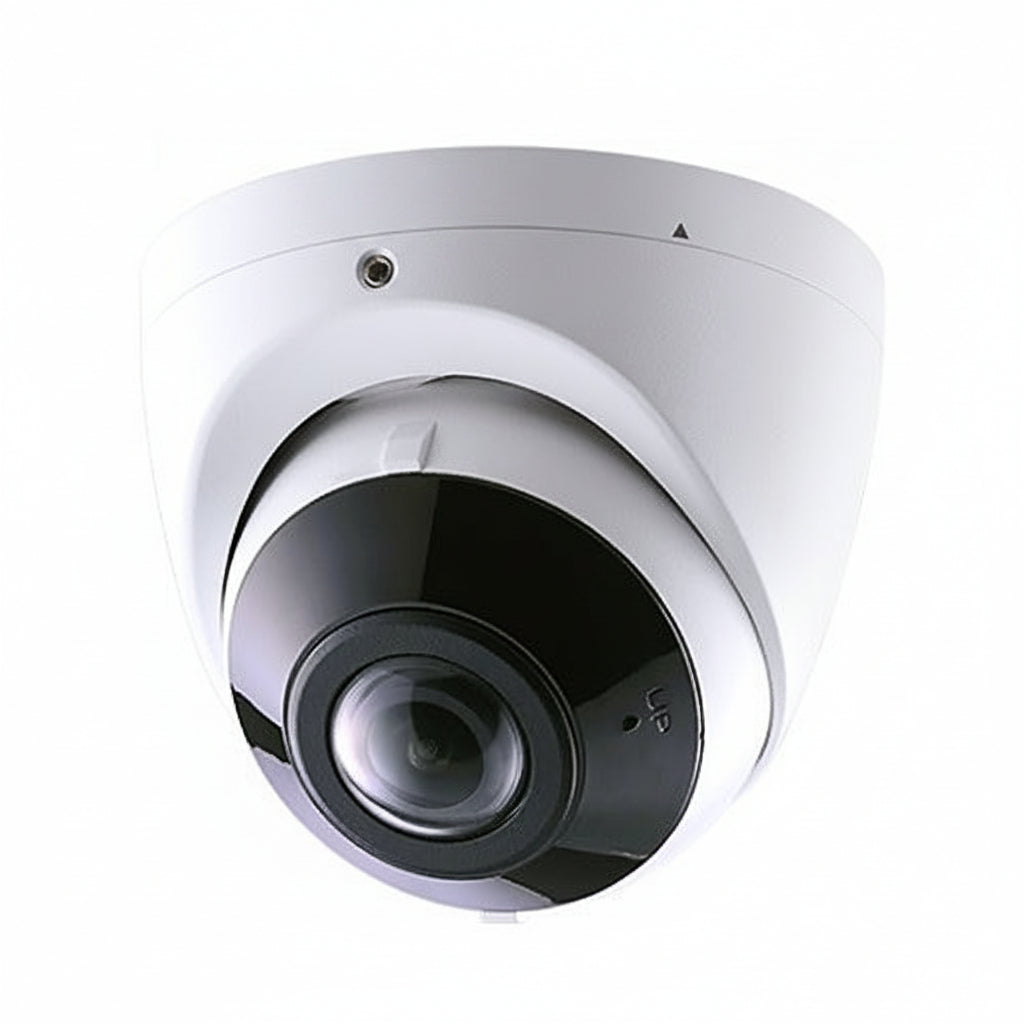

GeoVision GV-EBDP8800 8MP H.265 Super Low Lux WDR Pro IR Eyeball Dome IP Camera, 1.68mm Lens, White

The GeoVision GV-EBDP8800 is an 8MP outdoor eyeball dome IP camera with a 1.68mm lens, built to give wide coverage of a property in a single view. It suits installers and businesses who want AI-based human and vehicle detection along a perimeter, plus built-in infrared for after-dark monitoring. The 180° panoramic view, IK10 impact rating and IP67 ingress protection stand out.

Key features

• AI deep learning provides perimeter protection and classifies people and vehicles.
• A 1/2.7″ progressive scan CMOS sensor delivers up to 30fps at 3840 x 2160.
• Minimum illumination of 0.01 lux, plus Intelligent IR reaching up to 20m (65') in darkness.
• Day and Night function uses a removable IR-cut filter.
• Triple streams are available from H.265, H.264 and MJPEG.
• The 180° panoramic view and IP67 rating suit wide outdoor coverage.

Specifications

Brand: GeoVision

Model: 125-EBDP880-0010- GV-EBDP8800

Product Type: Network Camera

Effective Camera Resolution: 8MP

Lens: 1.68mm

Color: White

Indoor/Outdoor: Outdoor

Durability: Impact Resistant

Impact Protection Rating: IK10

Ingress Protection: IP67

IR Distance: Up to 20m (65')

Installation notes

Choose a mounting spot with a clear, unobstructed view of the area you want covered, and keep the lens and IR window free of nearby surfaces that could reflect infrared back into the image. Seal the cable entry properly to preserve the outdoor rating, and check the AI detection and night image during commissioning.
