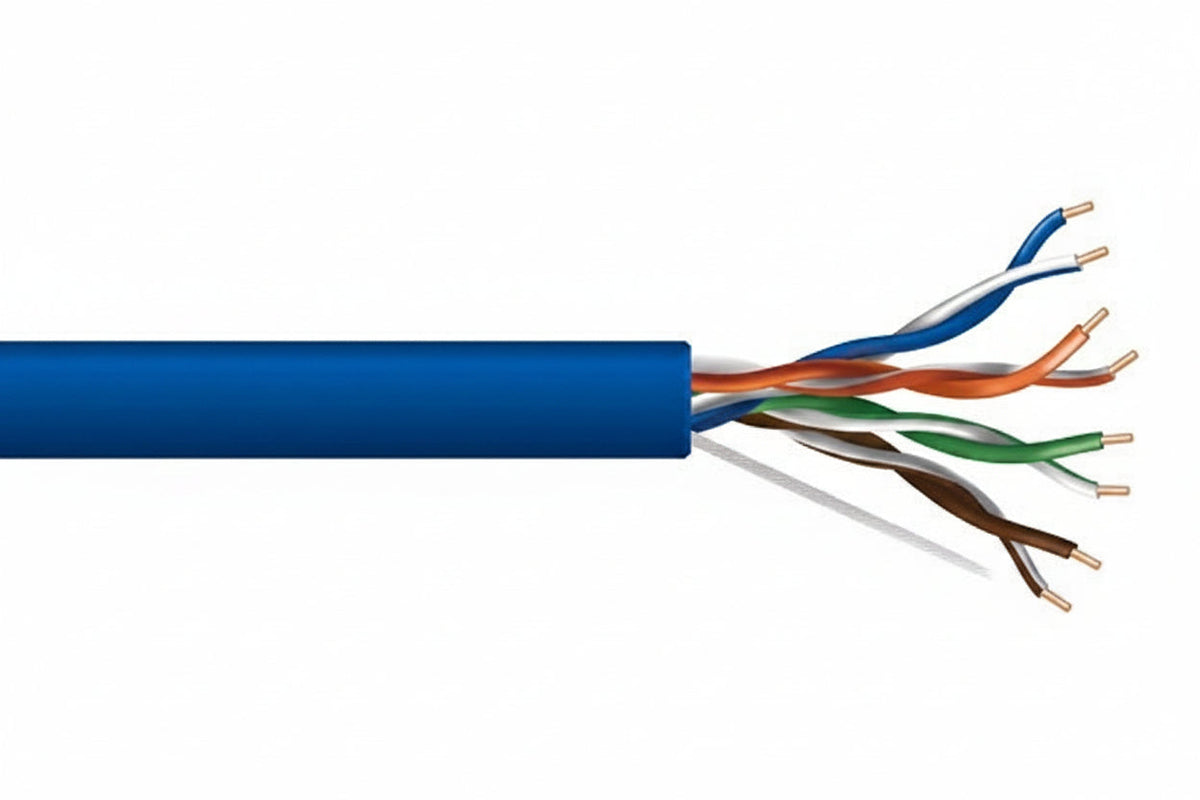

Genesis 63611106 23/4-Pair Cat 6 Unshielded (U/UTP) Networking Cable, Plenum, CMP, FT6, 1000' (304.8 m) Pull Box, Blue

The Genesis 63611106 is a 1000' (304.8 m) pull box of blue Cat 6 unshielded (U/UTP) networking cable, rated plenum (CMP, FT6) for indoor runs. It uses 23 AWG solid bare copper conductors in four pairs, which suits installers pulling structured cabling through air-handling spaces. FEP insulation and countdown length markings make it practical to pull and track on larger jobs.

Key features

• Bare copper conductors support strong signal transmission with low voltage drop.
• FEP insulation is paired with a PVC jacket.
• A rip cord lets you strip and remove the jacket efficiently.
• Countdown length markings make it easy to see how much cable you have used and how much remains.
• It is rated for 300V and for temperatures from -20 °C to 75 °C.
• It is REACH/RoHS compliant.

Specifications

Brand: Genesis

Model: 63611106

Product type: Ethernet Cables

Category: Cat 6

Rating: Plenum, CMP, FT6

Length: 1000' (304.8 m) pull box

Color: Blue

Indoor/Outdoor: Indoor

Shielding: No (U/UTP)

Armored: No

Number of pairs: 4

Number of conductors: 8

Conductor material: Bare Copper

Solid or stranded: Solid

American Wire Gauge: 23AWG

Insulation material: FEP

Impedance: 100 Ohm

Voltage rating: 300V

Temperature rating: -20 °C to 75 °C

Environmental certification: RoHS

TAA compliant: No

Country of origin: VN

Weight: 31.80 lb

Installation notes

Keep pulling tension and bend radius within the manufacturer's limits, and avoid sharp edges or kinks in the cable path. Use the countdown markings to cut runs to length and leave enough slack at each end for termination and testing.
