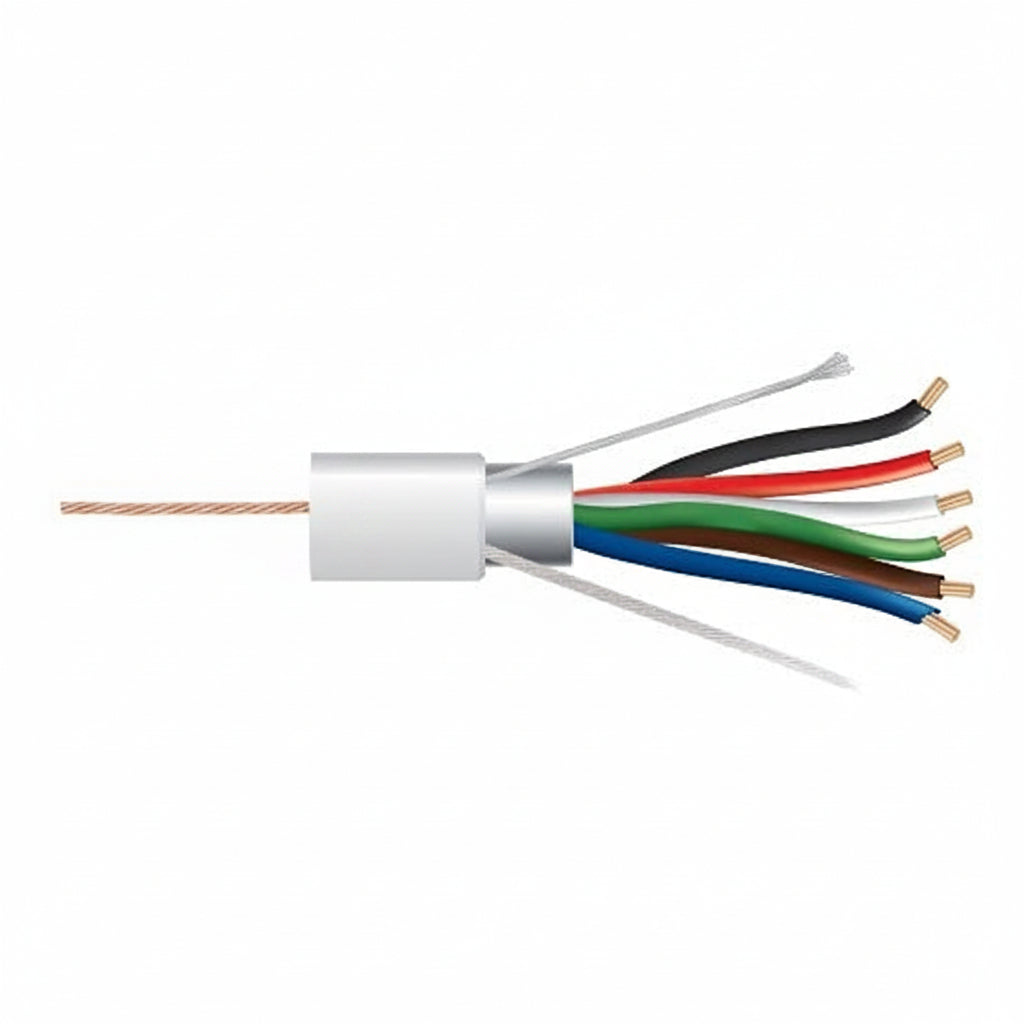

Genesis 32061112 22/6 Stranded Shielded Cable, Plenum, CMP, FT6, 1000' (304.8 m) Pull Box, Natural

The Genesis 32061112 is a 22 AWG, 6-conductor stranded shielded control cable in a plenum-rated CMP, FT6 jacket, supplied as a 1000' (304.8 m) pull box in natural. It suits installers running access control and other low-voltage control wiring indoors, including above ceilings where plenum rating is needed. Bare copper conductors, a foil shield over all conductors and countdown length markings make it practical to pull and track on the job.

Key features

• Bare copper conductors give good conductivity and low voltage drop.
• Low-smoke PVC insulation is used on the conductors.
• A foil shield covers all conductors.
• A rip cord makes it quicker to strip and remove the jacket.
• Countdown length markings let you see how much cable you have used and how much remains.
• It is rated for 300 volts and for -20 °C to 75 °C, and is REACH/RoHS compliant.

Specifications

Brand: Genesis

Model: 32061112

Product type: Security & Control Cables

Rating: Plenum, CMP, FT6

Length and packaging: 1000' (304.8 m) pull box

Color: Natural

Gauge: 22 AWG

Number of conductors: 6

Construction: Stranded

Conductor material: Bare copper

Insulation material: LS-PVC

Shielding: Yes

Armored: No

Voltage rating: 300 V

Temperature rating: -20 °C to 75 °C

Indoor/Outdoor: Indoor

Environmental certification: RoHS

TAA compliant: Yes

Country of origin: US

Weight: 23.40 lb

Installation notes

Terminate the foil shield according to your system's grounding practice, and keep the cable away from sources of electrical noise where you can. Use the rip cord to open the jacket cleanly, and follow the countdown markings to plan your runs and avoid running short.
