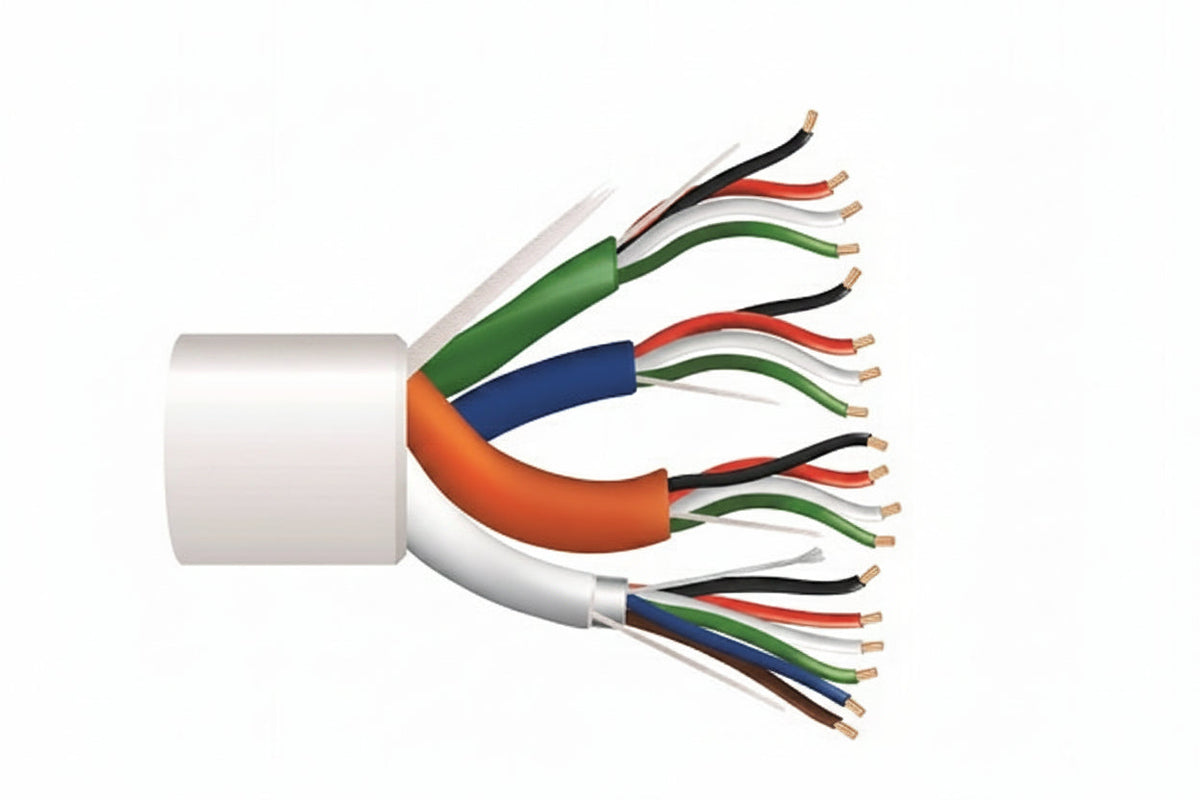

Genesis 31991001 22/6 Stranded Shielded + 22/4 Stranded + 22/4 Stranded + 18/4 Stranded Composite Access Control Cable, Plenum, CMP, FT6, 1000' (304.8 m) Reel, White

The Genesis 31991001 is a 1000' (304.8 m) reel of white composite access control cable that bundles four cable runs into one jacket: a shielded 22/6 stranded run, two 22/4 stranded runs and an 18/4 stranded run. It suits installers pulling reader, lock and power wiring for an access control door in a single pass. The plenum-rated (CMP, FT6) jacket, shielded card reader component and countdown length markings stand out.

Key features

• Bare copper conductors give good conductivity and low voltage drop.
• Low-smoke PVC insulation is used on the conductors.
• The card reader component is shielded.
• A rip cord makes it easier to strip and remove the jacket.
• Countdown length markings help you track how much cable you have used and how much is left.
• It is rated for 300 volts and for -20 °C to 75 °C, and it is REACH/RoHS compliant.

Specifications

Brand: Genesis

Model: 31991001

Product type: Security & Control Cables

Construction: 22/6 stranded shielded + 22/4 stranded + 22/4 stranded + 18/4 stranded composite

Rating: Plenum, CMP, FT6

Length and packaging: 1000' (304.8 m) reel

Color: White

American wire gauge: 22AWG

Number of conductors: 18

Solid or stranded: Stranded

Conductor material: Bare copper

Insulation material: LS-PVC

Shielding: Yes

Armored: No

Voltage rating: 300 V

Temperature rating: -20 °C to 75 °C

Environmental certification: RoHS

TAA compliant: Yes

Country of origin: US

Installation notes

Terminate the shield on the card reader run at the controller end only, following the reader manufacturer's guidance, and keep the cable away from sources of electrical noise. Use the rip cord to open the jacket without nicking the conductors, and label each run at both ends before you terminate.
