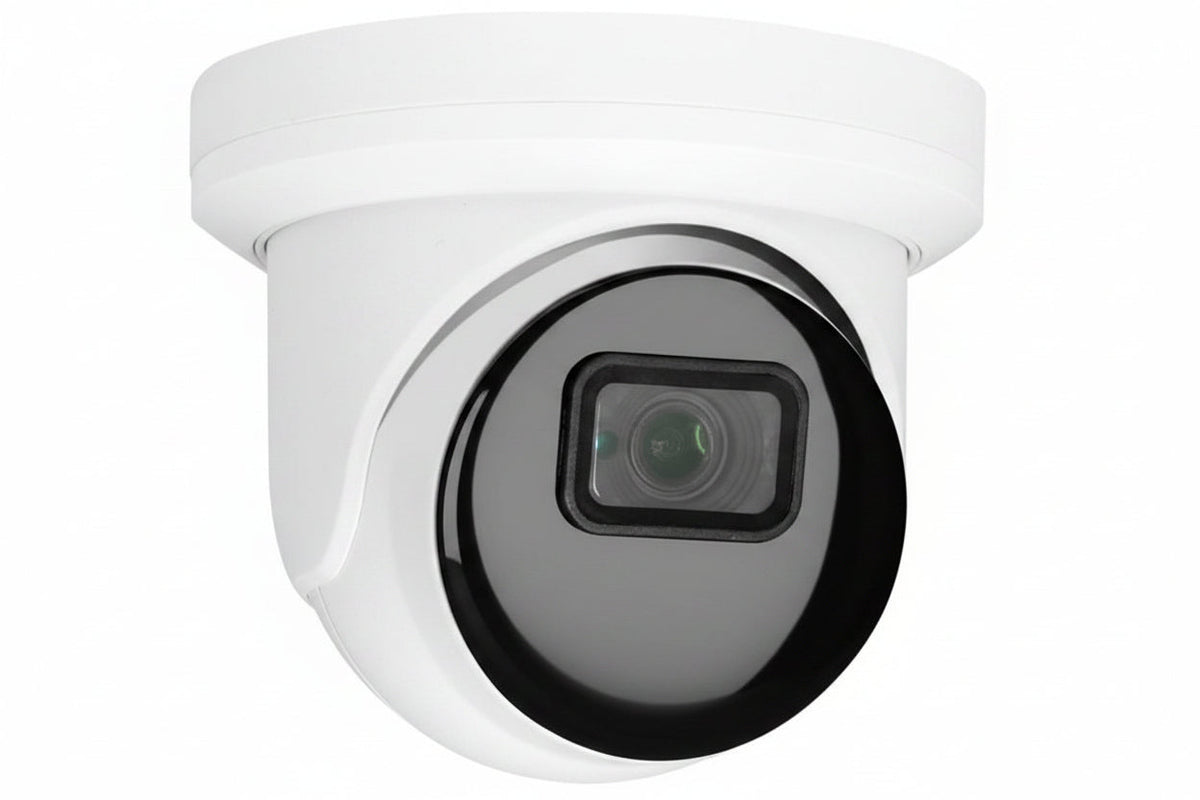

AVYCON AVC-TE51F28 5MP HD-TVI Turret Camera, 2.8mm Fixed Lens, NDAA Compliant, White

The AVYCON AVC-TE51F28 is a 5MP HD-TVI turret camera with a fixed 2.8mm lens, built for outdoor video surveillance on analog or HD-over-coax recorders. A DIP switch lets you change between HD-TVI, CVI, AHD and analog CVBS output, which suits installers working with mixed recorder types. It is NDAA compliant and has Smart IR night vision, an IP67 rating and a white finish.

Key features

• Records at 5MP (2592 x 1944) over coax.
• Outputs HD-TVI, CVI, AHD or analog CVBS, selected with a DIP switch.
• True Day and Night operation uses an ICR, with Smart IR illumination reaching 66′.
• DNR, WDR and BLC help with image quality in difficult lighting.
• IP67 ingress protection makes it suitable for outdoor mounting.
• Runs on DC12V.

Specifications

Model: AVC-TE51F28

Brand: AVYCON

Product series: HD-TVI

Product type: Surveillance Camera

Maximum video resolution: 2592 x 1944

Image sensor type: CMOS

Lens type: Fixed

Focal length: 2.8mm

Maximum frame rate: 30fps

Video signal format: NTSC

Night vision: Yes, Infrared (IR)

Night vision distance: 66′

Wide dynamic range: Yes

Indoor/Outdoor: Outdoor

Ingress protection rating: IP67

Durability: Waterproof

Mount type: Ceiling Mount

Connectivity technology: Wired

Diameter: 4.00″

Height: 2.60″

NDAA compliant: Yes

Country of origin: CN

Installation notes

Set the DIP switch to match your recorder's video format before final mounting, and confirm the picture at the recorder first. Because this is a fixed-lens camera, check the field of view from the intended location before drilling, and aim it away from direct light sources to get the most from the IR illumination and WDR.
