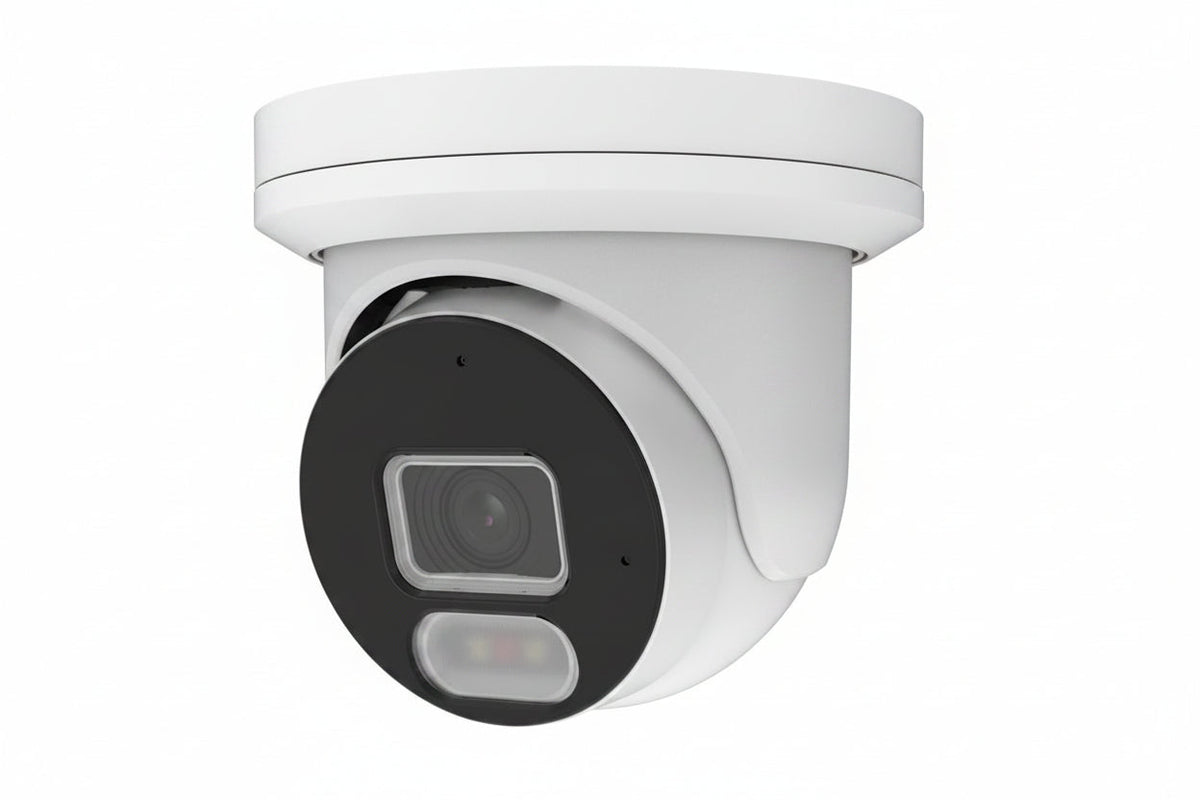

AVYCON AVC-NBE81F28 8MP IR Turret IP Camera, 2.8mm Fixed Lens

The AVYCON AVC-NBE81F28 is an 8MP IP turret camera with a fixed 2.8mm lens, built for outdoor and low-light video surveillance. It uses both a white light LED and an infrared LED, so it can switch between color and infrared night imaging. With PoE or 12VDC power, local microSD storage and IP67 protection, it suits installers and businesses that want a flexible camera for a wide range of sites.

Key features

• Records 8MP (3840 x 2160) video at up to 15fps.
• Pairs a white light LED with an infrared LED for night coverage.
• Has a fixed 2.8mm lens with an F1.6 aperture.
• Includes a microSD card slot that accepts cards up to 256GB.
• Runs on PoE or 12VDC, with IP67 ingress protection for outdoor use.
• Supports remote monitoring through the AVYCON ONE mobile app and AVYCON CMSONE software.

Specifications

Brand: AVYCON

Model: AVC-NBE81F28

Product Type: Network Camera

Effective Camera Resolution: 8MP

Maximum Video Resolution: 3840 x 2160

Maximum Frame Rate: 15fps

Image Sensor Type: CMOS

Lens Type: Fixed

Lens: 2.8mm, F1.6

Maximum Aperture: f/1.6

Focal Length: 3.6mm

Maximum Focal Length: 3.60mm

Field of View: Diagonal

Video Formats: H.264 / AVC

Longest Shutter Speed: 1/5 Second

Shortest Shutter Speed: 1/20000 Second

Minimum Illumination: 0.0090lux

Night Vision: Yes

Ingress Protection Rating: IP67

Input Voltage: 12V

Power: PoE / 12VDC

Storage: Built-in Micro SD card slot, up to 256GB

Maximum Operating Temperature: 140°F

Minimum Operating Temperature: -31°F

Cloud Capabilities: Cloud Enabled

Installation notes

Choose a mounting spot that gives the fixed lens the view you need, and aim the camera before final tightening, since the lens can't be zoomed. Where possible, power it from a PoE switch to keep cabling to a single run, and seal the cable entry points so the IP67 rating holds up outdoors.
