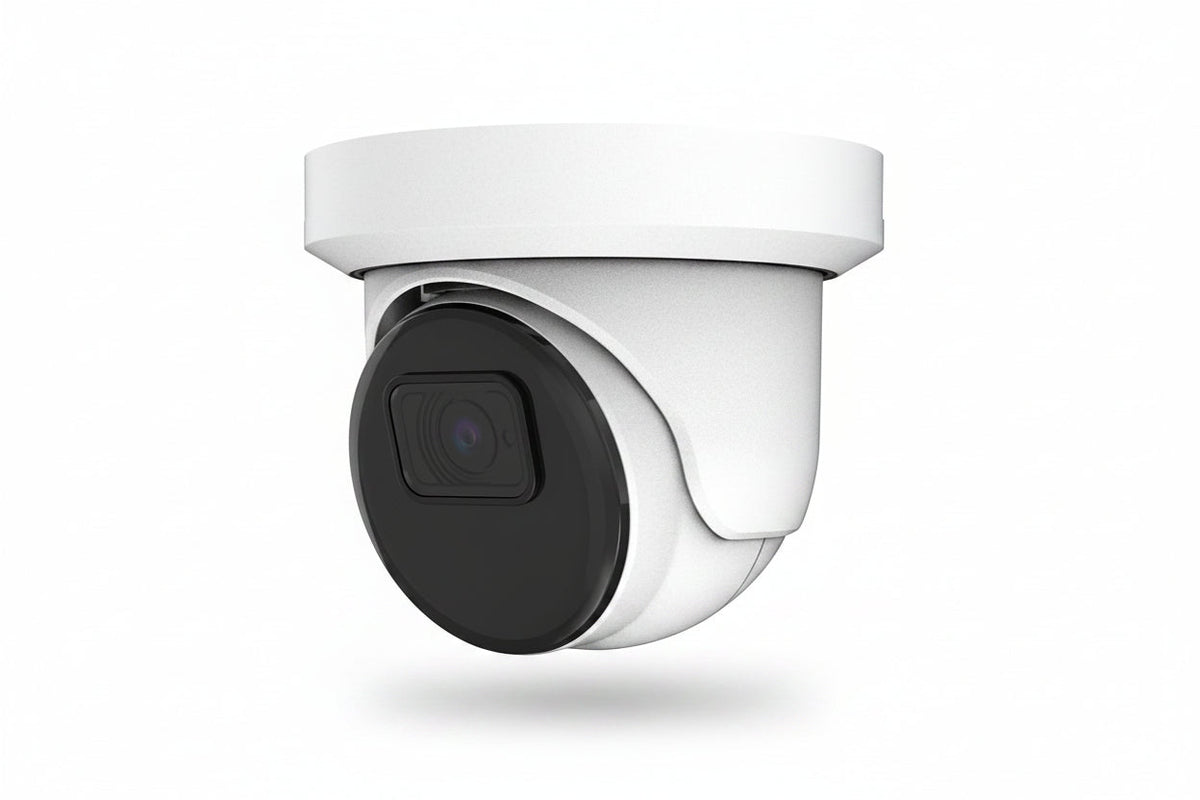

AVYCON AVC-NSE81F28 8MP WDR Turret IP Camera, 2.8mm Fixed Lens, White

The AVYCON AVC-NSE81F28 is an 8MP IP turret camera with a fixed 2.8mm lens, built for outdoor video surveillance in a white housing. It records 4K UHD (3840 x 2160) at 30fps and uses infrared night vision, which makes it a fit for installers and businesses that need detailed, wired network coverage. True WDR and an NDAA-compliant listing are the standouts.

Key features

• Captures 8MP video at 3840 x 2160 and 30fps.
• Smart H.265 and H.264 encoding, with triple streams supported.
• True Day and Night ICR with infrared illumination up to 98'.
• 3D DNR, True WDR, HLC, BLC and ROI encoding help with difficult lighting and image quality.
• Remote access works from Windows, macOS, iOS and Android.
• Weather protection is rated IP67 in the feature list.

Specifications

Brand: AVYCON

Model: AVC-NSE81F28

Product type: IP turret camera

Product series: Diversity

Maximum video resolution: 3840 x 2160 (4K UHD)

Maximum frame rate: 30fps

Aspect ratio: 16:9

Image sensor: CMOS

Lens: 2.8mm fixed, diagonal field of view

Night vision: Infrared (IR), 98'

Maximum illumination: 0.10lux

Shutter speed: 1/5 second to 1/20000 second

Wide dynamic range: Yes

Video formats: H.264 / AVC

Connectivity: Wired, RJ-45 network

Remote management: Yes

Cloud capabilities: Cloud managed

Mount type: Ceiling mount

Indoor/outdoor: Outdoor

Durability: Waterproof

Ingress protection: IP67 (feature list); IP66 (specification listing)

Operating temperature: -22°F to 131°F

NDAA compliant: Yes

Country of origin: CN

Installation notes

Run a network cable to the camera's RJ-45 port and confirm the cable path is sealed against moisture, since this is an outdoor camera. Aim the camera so the infrared range covers the area you want to watch, and check the image at night during commissioning.
