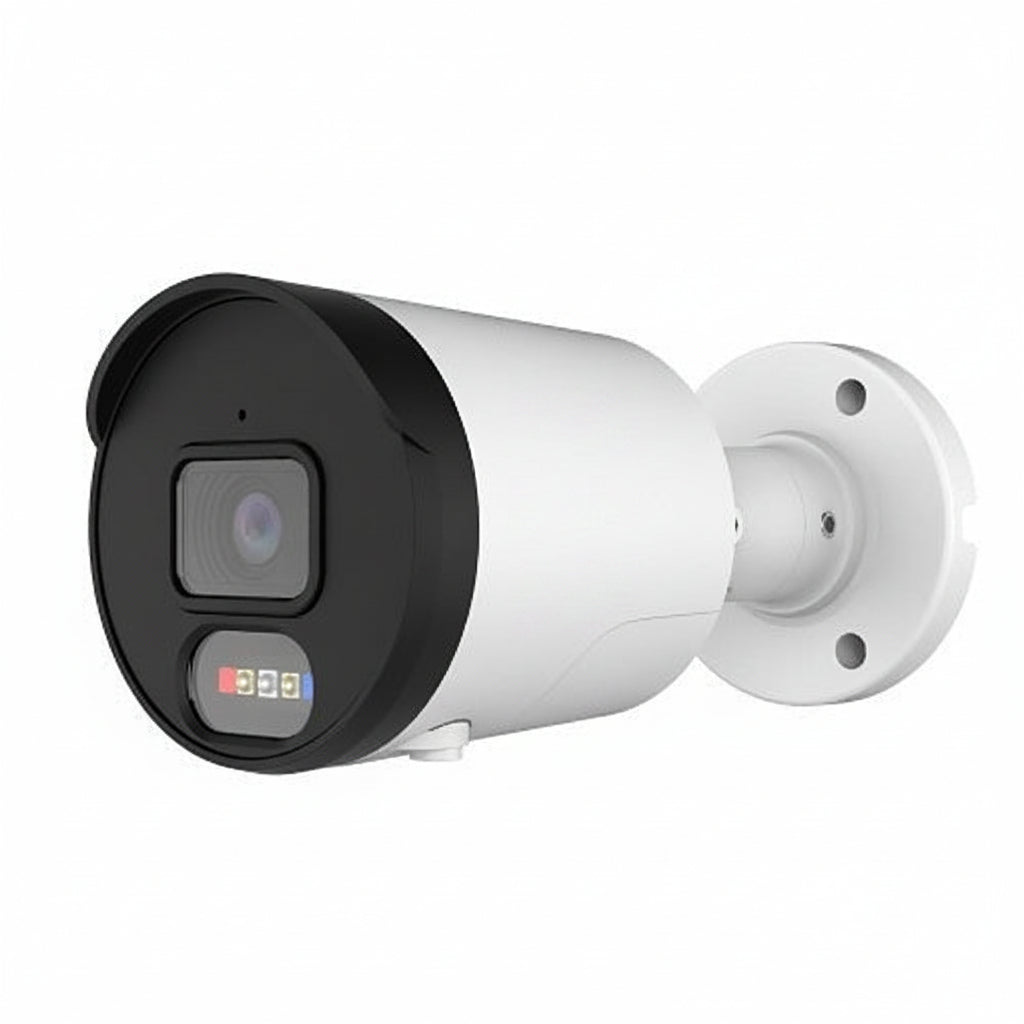

AVYCON AVC-NAB81F28 Diversity Series 8MP Smart Defender Bullet IP Camera, 2.8mm Fixed Lens

The AVYCON AVC-NAB81F28 is an 8MP Smart Defender bullet IP camera from the Diversity Series, fitted with a 2.8mm fixed lens. It watches outdoor and indoor areas for installers, businesses and homeowners who want on-camera deterrents and detection in a single unit. The white light LED, red and blue strobe, and built-in microphone and speaker set it apart from a plain bullet camera.

Key features

• Full color Smart Defender design with a white light LED and a blue and red strobe light.
• Built-in microphone and speaker for audio at the camera.
• Detects intrusion, tripwire crossing, loitering, and region entrance and exiting.
• Micro SD card slot records video and captures still images on the camera.
• IP67 ingress protection, with power by PoE or 12V DC.
• Remote monitoring through the AVYCON ONE mobile app and AVYCON CMSONE.

Specifications

Brand: AVYCON

Model: AVC-NAB81F28

Series: Diversity

Product type: Network Camera

Form factor: Bullet

Effective resolution: 8MP

Maximum video resolution: 3840 x 2160

Maximum frame rate: 15fps

Video format: H.264 / AVC

Image sensor: CMOS

Lens: Fixed, included

Focal length: 2.8mm

Field of view (horizontal): 110.0°

Field of view (vertical): 58.00°

Field of view type: Diagonal

Night vision: Infrared (IR)

Minimum illumination: 0.0070lux

Shutter speed: 1/5 second (longest), 1/20000 second (shortest)

Input voltage: 12V DC

Operating temperature: -31°F to 140°F

Height: 16.56″

Weight: 0.63lb

Remote management: Yes

Cloud: Cloud enabled

Installation notes

Because the camera accepts PoE, a single network cable can carry both data and power, which simplifies the run to the mounting location. Aim the camera so the detection zones and tripwire lines cover the areas you care about, then test the light, strobe and audio before leaving the site.
