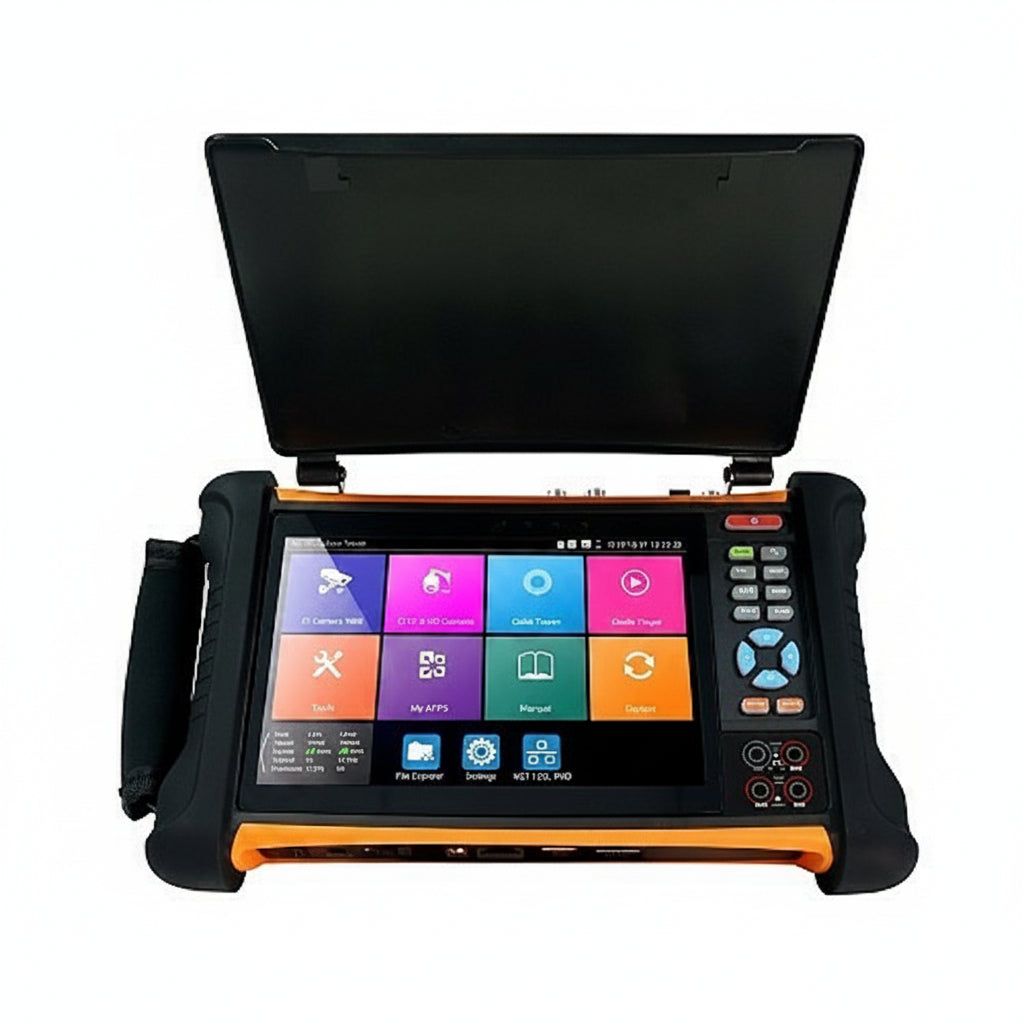

AVYCON AIVO-70A8KM 7" H.265 All-in-One Tester for CCTV Installation and Troubleshooting

The AVYCON AIVO-70A8KM is a 7″ all-in-one tester for CCTV installation and troubleshooting. It lets installers check HD analog cameras (HD-CVI, HD-TVI and AHD) and IP cameras on one handheld unit, and it can also supply power to the camera under test. It suits field technicians who want a single tool for commissioning and diagnosing mixed analog and IP systems.

Key features

• The 7″ touch screen has a 1920x1200 resolution.
• It tests HD-CVI, HD-TVI and AHD cameras up to 8MP (4K) and supports CoC/UTC control.
• It automatically recognizes HD-CVI, HD-TVI and AHD formats and resolutions.
• It decodes H.265 and H.264 video up to 4K for testing IP cameras.
• It provides 12VDC at 3A, 24VDC at 2A and 802.3at/af PoE output of up to 25.5W.
• Wi-Fi is supported, including creating a Wi-Fi hotspot, and the built-in ONVIF tool can change IP camera settings and generate reports.

Specifications

Brand: AVYCON

Model: AIVO-70A8KM

Product type: CCTV Tester

Screen: 7″ touch screen, 1920x1200

HDMI input: Up to 4K / 30fps

HDMI output: Up to 4K / 30fps

VGA input: Up to 1920x1200 / 60 fps

Input voltage: 12V DC

Battery included: Yes

Width: 9.44″

Depth: 1.81″

Height: 6.06″

Installation notes

Before connecting a camera, check which power output it needs (12VDC, 24VDC or PoE) so you do not apply the wrong supply. Let the tester detect the video format and resolution first, then save an ONVIF report for IP cameras so you have a record of the settings at commissioning.
