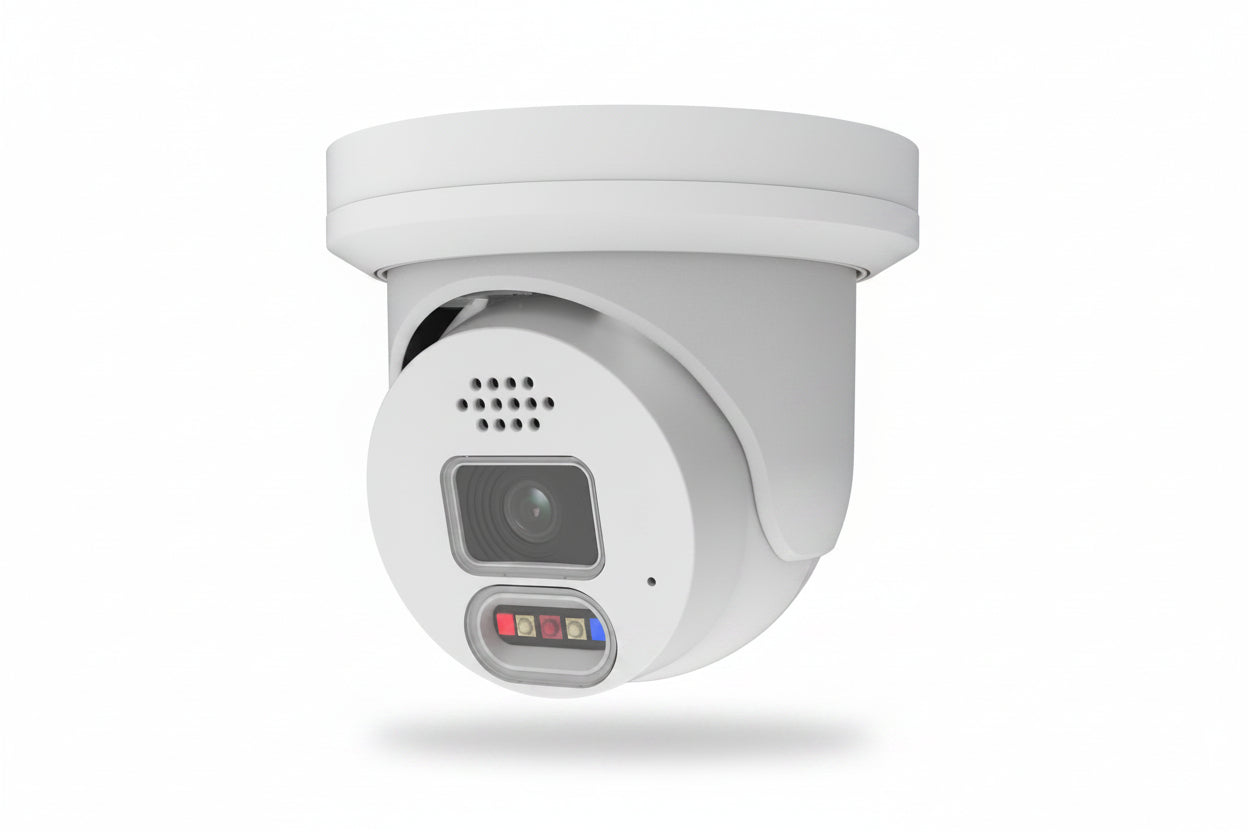

AVYCON AVC-NAE81F28 Diversity Series 8MP Smart Defender Turret IP Camera, 2.8mm Fixed Lens

The AVYCON AVC-NAE81F28 is an 8MP Diversity Series Smart Defender turret IP camera with a 2.8mm fixed lens. It suits installers and business or home users who need a full color camera that can also deter and talk back, thanks to its white light LED, red and blue strobe, and built-in microphone and speaker. Onboard detection (intrusion, tripwire, loitering and region entrance/exiting) and IP67 ingress protection round out the package.

Key features

• Full color Smart Defender camera with a white light LED and a blue and red strobe light.
• Built-in microphone and speaker for audio at the camera.
• Detects intrusion, tripwire crossings, loitering, and region entrance or exiting.
• Has a micro SD card slot for video and still image capture.
• Powers from PoE or 12V DC and carries an IP67 ingress protection rating.
• Supports remote monitoring through the AVYCON ONE mobile app and AVYCON CMSONE.

Specifications

Brand: AVYCON

Model: AVC-NAE81F28

Product Series: Diversity

Product Type: Network Camera

Form Factor: Turret

Effective Camera Resolution: 8MP

Maximum Video Resolution: 3840 x 2160

Maximum Frame Rate: 15fps

Image Sensor Type: CMOS

Video Formats: H.264 / AVC

Lens Included: Yes

Lens Type: Fixed

Focal Length: 2.8mm

Field of View (Horizontal): 110°

Field of View (Vertical): 58.0°

Field of View: Diagonal

Night Vision Type: Infrared (IR)

Minimum Illumination: 0.01lux

Shortest Shutter Speed: 1/20000 Second

Longest Shutter Speed: 1/5 Second

Input Voltage: 12V DC

Minimum Operating Temperature: -31°F

Maximum Operating Temperature: 140°F

Remote Management: Yes

Cloud Capabilities: Cloud Enabled

Height: 3.5″

Width: 4.0″

Weight: 0.68lb

Installation notes

Aim the camera at the area you want covered and mount it where the white light and strobe will not shine into windows or neighboring property. If you power it over PoE, confirm the switch or injector can supply the camera before you run the full cable, and seal the cable entry so the IP67 rating is not undermined.
