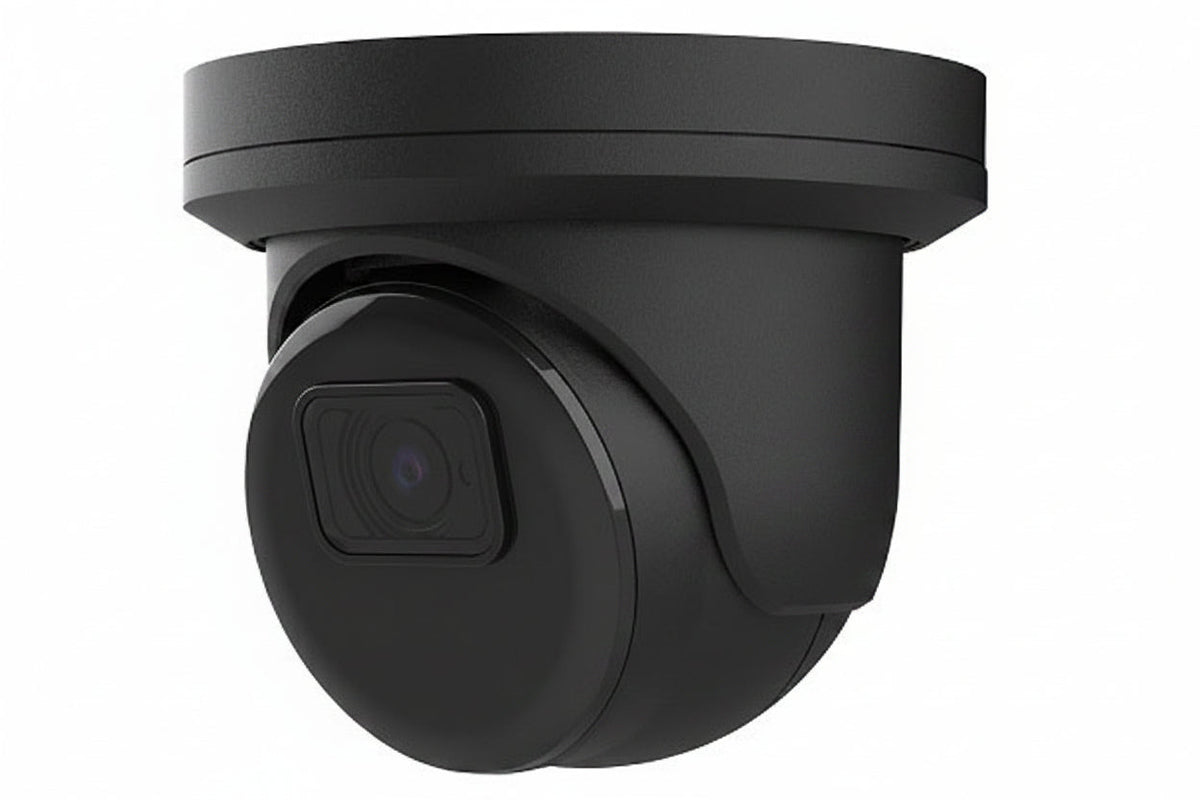

AVYCON AVC-NPE81F28-B EVO Series 8MP H.265+ Turret Eyeball IP Camera with 2.8 mm Fixed Lens, Black

The AVYCON AVC-NPE81F28-B is an 8MP network turret eyeball camera from the EVO Series, built for outdoor video surveillance with night vision. It suits installers, businesses and homeowners who want 4K UHD detail from a fixed 2.8mm lens, and it records locally to a micro SD card. Built-in audio pickup, H.265+ compression and IP67 protection round out the package.

Key features

• Records 8MP (3840x2160) video at up to 20fps.
• Supports H.265+/H.265, H.264+/H.264 and MJPEG encoding.
• Uses 3D DNR, WDR, HLC, BLC and ROI encoding to help with difficult lighting and bandwidth.
• Has a built-in micro SD card slot that accepts cards up to 256GB, plus a built-in microphone.
• Switches between day and night modes automatically with an ICR filter, and includes intelligent analytics.
• Carries an IP67 rating for outdoor use.

Specifications

Brand: AVYCON

Model: AVC-NPE81F28-B

Product Series: EVO

Product Line: AVC

Product Type: Network Camera

Color: Black

Effective Camera Resolution: 8MP

Maximum Video Resolution: 3840 x 2160

Graphics Mode: 4K UHD

Aspect Ratio: 16:9

Maximum Frame Rate: 20fps

Image Sensor Type: CMOS

Lens Type: Fixed

Lens Included: Yes

Lens Mount Type: M12

Focal Length: 2.8mm

Maximum Aperture: f/1.6

Field of View: Diagonal

Minimum Illumination: 0.0090lux

Longest Shutter Speed: 1/5 Second

Shortest Shutter Speed: 1/20000 Second

Night Vision: Yes

Wide Dynamic Range: Yes

Features: Built-in MIC

Cloud Capabilities: Cloud Managed

Ingress Protection Rating: IP67

Durability: Weather Resistant

Form Factor: Wall Mount

Mount Type: Ceiling Mount

Input Voltage: 12V DC

Minimum Operating Temperature: -31°F

Maximum Operating Temperature: 140°F

Operating Humidity: 95%

Height: 2.56″

Diameter: 3.90″

Weight: 0.91lb

Installation notes

Mount it on a solid wall or ceiling surface and aim it before final tightening, since the 2.8mm lens is fixed and framing depends on camera position. Confirm the 12V DC supply is correct for the cable run, and seal any cable entry points to keep the IP67 rating effective outdoors.
