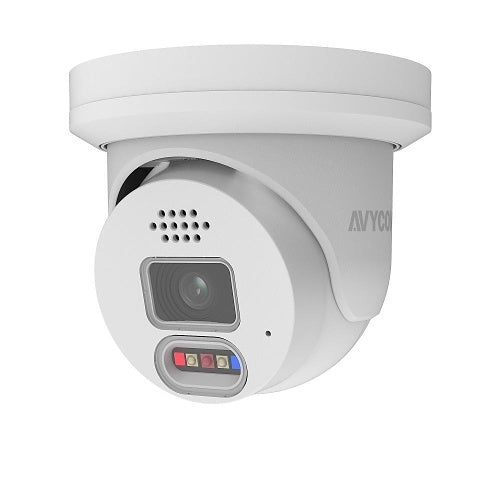

AVYCON AVC-NAE41F28 4MP Smart Defender Turret IP Camera, H.265+

The AVYCON AVC-NAE41F28 is a 4MP IP turret camera from the Smart Defender line, built for video surveillance with on-camera deterrence and two-way audio. It suits installers and business or home users who want full-color imaging plus built-in white light and red/blue strobe lights in a single weatherproof unit. AI detection for intrusion, tripwire, loitering and region entry/exit sets it apart from basic turret cameras.

Key features

• Records 4MP (2560 x 1440) video at 25fps using H.265 compression.
• Pairs a 2.8mm fixed F1.0 lens with full-color Smart Defender imaging.
• Includes a white light LED and a blue and red strobe light on the camera.
• Has a built-in microphone and speaker, plus a Micro SD card slot that accepts cards up to 256GB.
• Runs AI detection for intrusion, tripwire, loitering and region entrance/exiting.
• Can be powered by PoE or 12V DC and is rated IP67 against dust and water.

Specifications

Brand: AVYCON

Model: AVC-NAE41F28

Product Type: Network Camera

Product Series: Diversity

Effective Camera Resolution: 4MP

Maximum Video Resolution: 2560 x 1440

Maximum Frame Rate: 25fps

Aspect Ratio: 16:9

Graphics Mode: QHD

Image Sensor Type: CMOS

Lens Type: Fixed

Lens Included: Yes

Lens Mount Type: M12

Focal Length: 2.8mm

Maximum Aperture: f/1

Field of View (Horizontal): 95.0°

Field of View (Vertical): 51.00°

Field of View: Diagonal

Night Vision: Yes

Night Vision Type: Infrared (IR)

Number of IR LEDs: 1

Minimum Illumination: 0.0020lux

Longest Shutter Speed: 1/5 Second

Shortest Shutter Speed: 1/20000 Second

Storage Type: SD Card

Cloud Capabilities: Cloud Enabled

Ingress Protection Rating: IP67

Input Voltage: 12V DC

Minimum Operating Temperature: 31°F

Maximum Operating Temperature: 140°F

Height: 3.46″

Depth: 3.96″

Weight: 0.68lb

Color: White

Environmental Certification: FCC

Environmentally Friendly: Yes

Installation notes

Choose a mounting spot where the 2.8mm fixed lens covers the target area, since the field of view cannot be adjusted by zoom. Aim the camera away from direct light sources, and plan a PoE cable run or a 12V DC supply before mounting.
