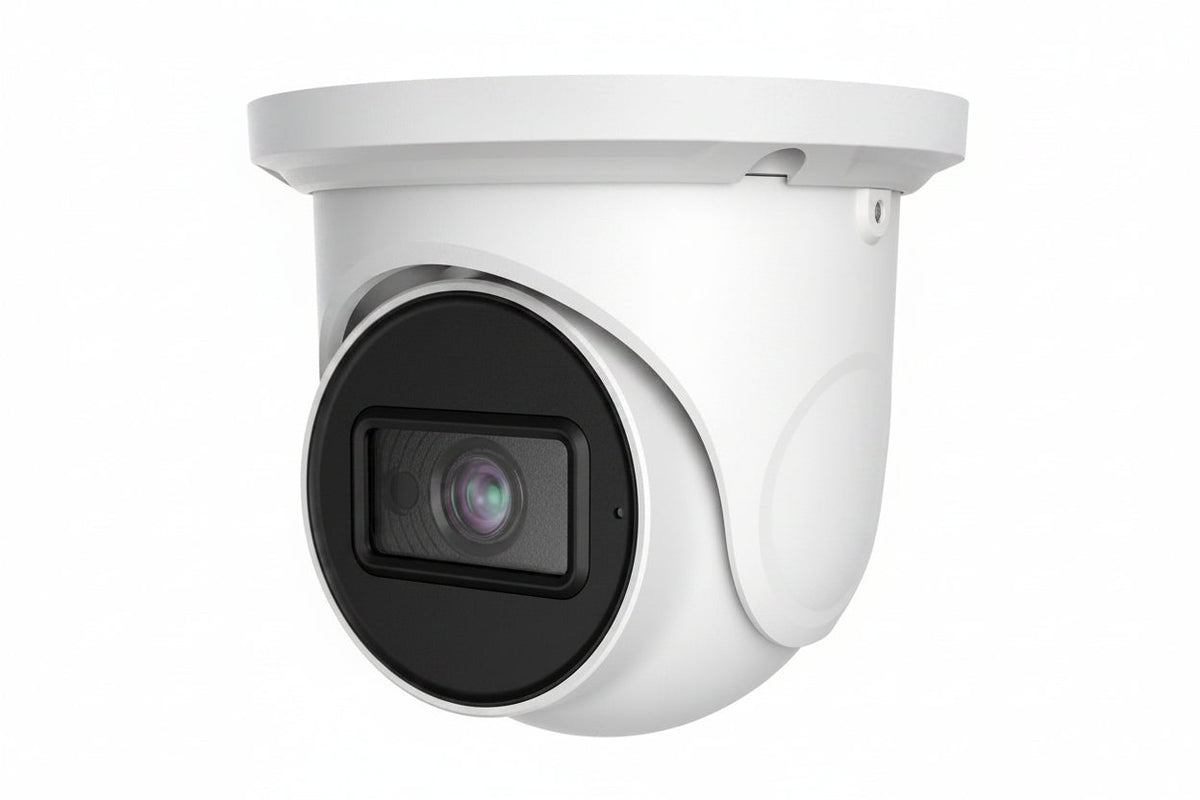

AVYCON AVC-ELN41FT/2.8 Diversity Series 4MP H.265 Waterproof IR Turret IP Camera, 2.8mm Fixed Lens, White

The AVYCON AVC-ELN41FT/2.8 is a 4MP H.265 IP turret camera from the Diversity Series. It has a 2.8mm fixed lens and infrared night vision, and its IP67 housing is waterproof. It suits installers and business or home users who need a wired, ceiling-mounted camera with on-board analytics and memory card storage.

Key features

• Intelligent analytics are built into the camera.
• Infrared night vision reaches 100 feet.
• Wide dynamic range and 3D noise reduction help with image quality.
• The IP67 rating and waterproof build suit outdoor mounting.
• The 2.8mm fixed lens has a 50° vertical field of view.
• Video can be stored on a memory card, and the camera supports remote management.

Specifications

Brand: AVYCON

Model: AVC-ELN41FT/2.8 (AVCELN41FT28)

Product Line: Diversity

Product Type: Network Camera

Form Factor: Turret

Color: White

Effective Camera Resolution: 4MP

Maximum Video Resolution: 2560 x 1440

Maximum Frame Rate: 30fps

Aspect Ratio: 16:9

Image Sensor Type: CMOS

Lens Type: Fixed (included)

Lens Mount Type: M12

Focal Length: 2.8mm

Maximum Aperture: f/1.6

Field of View: Diagonal

Field of View (Vertical): 50.00°

Shutter Speed: 1/2 second (longest) to 1/100000 second (shortest)

Wide Dynamic Range: Yes

Features: 3D Noise Reduction

Night Vision: Yes, Infrared (IR)

Night Vision Distance: 100.00'

Connectivity: Wired, Network (RJ-45)

Input Voltage: 12V DC

Storage Type: Memory Card

Remote Management: Yes

Mount Type: Ceiling Mount

Durability: Waterproof

Ingress Protection Rating: IP67

Operating Temperature: -22°F to 140°F

Operating Humidity: 95%

Environmental Certification: EU RoHS

Diameter: 3.80″

Weight: 1.01lb

Installation notes

Mount the camera on a solid surface, and aim it away from bright lights and reflective surfaces that could wash out the infrared night image. Run the RJ-45 network cable and the 12V DC power feed to the camera, and seal the cable entry points so the weatherproof housing stays protected.
