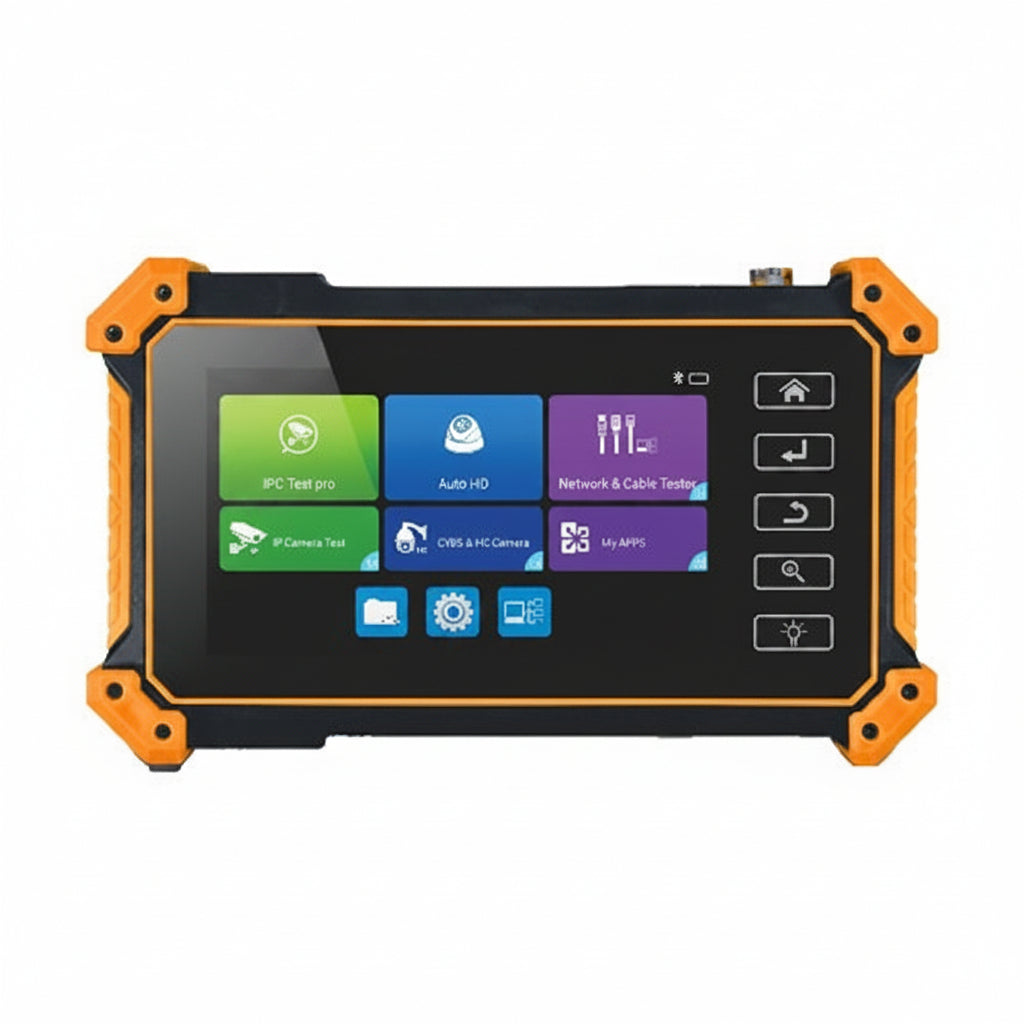

AVYCON AIVO-54T4K 5.4" H.265 All-in-One Tester for CCTV Installation and Troubleshooting

The AVYCON AIVO-54T4K is a 5.4″ touch-screen all-in-one tester for installing and troubleshooting CCTV systems. It handles HD analog cameras (HD-CVI, HD-TVI and AHD, up to 8MP/4K) as well as IP cameras, so one tool covers both kinds of jobs. It suits installers who want to check cameras, power them and test cabling on site without carrying separate meters.

Key features

• The 5.4″ touch screen has a 1920 x 1152 resolution.
• It automatically recognizes HD-CVI, HD-TVI and AHD formats and resolutions, and supports CoC/UTC control.
• It decodes H.265 and H.264 up to 4K for testing IP cameras.
• HDMI input supports up to 4K at 30fps, and VGA input supports up to 1920 x 1200 at 60fps.
• It can power cameras with 12VDC at 3A or 802.3at/af PoE up to 25.5W.
• The built-in ONVIF tool can change IP camera settings and generate reports, and the tester also checks Ethernet cable and RJ-45 terminations.

Specifications

Brand: AVYCON

Model: AIVO-54T4K

Product type: CCTV Tester

Screen: 5.4″ touch screen, 1920 x 1152

HDMI: Yes

VGA: Yes

Input voltage: 12V DC

Battery included: Yes

Width: 7.20″

Depth: 1.44″

Installation notes

Check that the battery is charged before heading to the job, and confirm the camera's power requirements before choosing 12VDC or PoE output so you do not apply the wrong supply. Use the cable and termination tests to verify runs and RJ-45 ends before you mount cameras, which can save a return trip.
