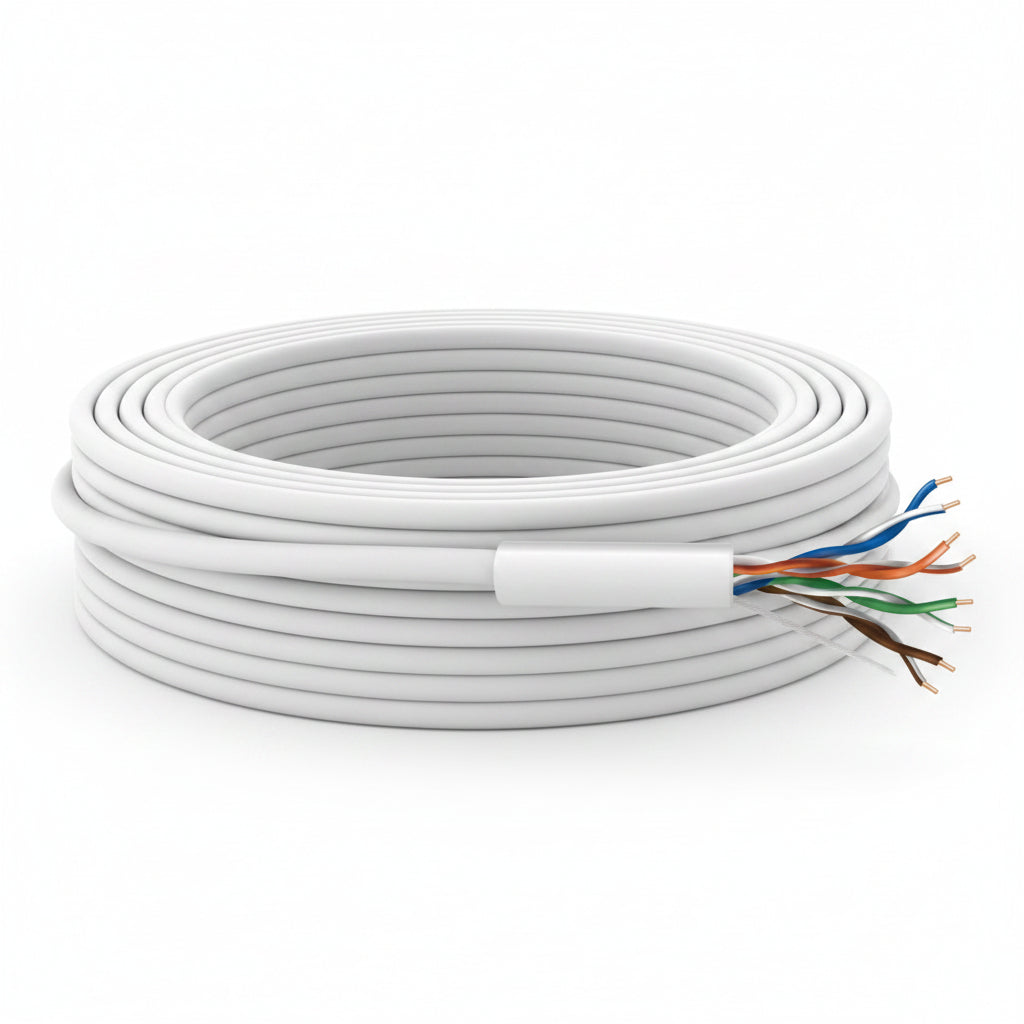

Genesis 50885501 24/4-Pair Cat 5e Unshielded (U/UTP) Plenum Cable, Plenum, CMP, FT6, 500' (152.4 m) Pull Box, White

The Genesis 50885501 is a 500' (152.4 m) pull box of white Cat 5e unshielded (U/UTP) plenum cable, rated CMP and FT6, with 24 AWG solid bare copper conductors in 4 pairs. It carries Ethernet data for indoor structured cabling runs, including spaces where plenum-rated cable is needed. It suits installers who want a pull box with countdown length markings and a rip cord for jacket stripping.

Key features

• Bare copper conductors support good signal transmission with low voltage drop.
• FEP insulation is used on the conductors.
• A rip cord makes it easier to strip and remove the jacket.
• Countdown length markings help you track how much cable you have used and how much is left.
• The cable is rated for 300 volts and for -20 °C to 75 °C.
• It is REACH/RoHS compliant.

Specifications

Brand: Genesis

Model: 50885501

Product name: Cat.5e U/UTP Network Cable

Product type: Ethernet Cables

Rating: Plenum, CMP, FT6

Length and packaging: 500' (152.4 m) Pull Box

Color: White

Indoor/Outdoor: Indoor

Shielding: No

Armored: No

Number of pairs: 4

Number of conductors: 8

Conductor count: 4

Conductor material: Bare Copper

Solid or stranded: Solid

American Wire Gauge: 24AWG

Insulation material: FEP

Impedance: 100 Ohm

Voltage rating: 300 Volts

Temperature rating: -20 °C to 75 °C

Environmental certification: RoHS

TAA compliant: No

Country of origin: VN

Installation notes

Pull the cable from the box without kinking it or exceeding a gentle bend radius, and use the countdown markings to cut each run to length. Keep the cable away from power wiring where possible, and test every run after termination.
