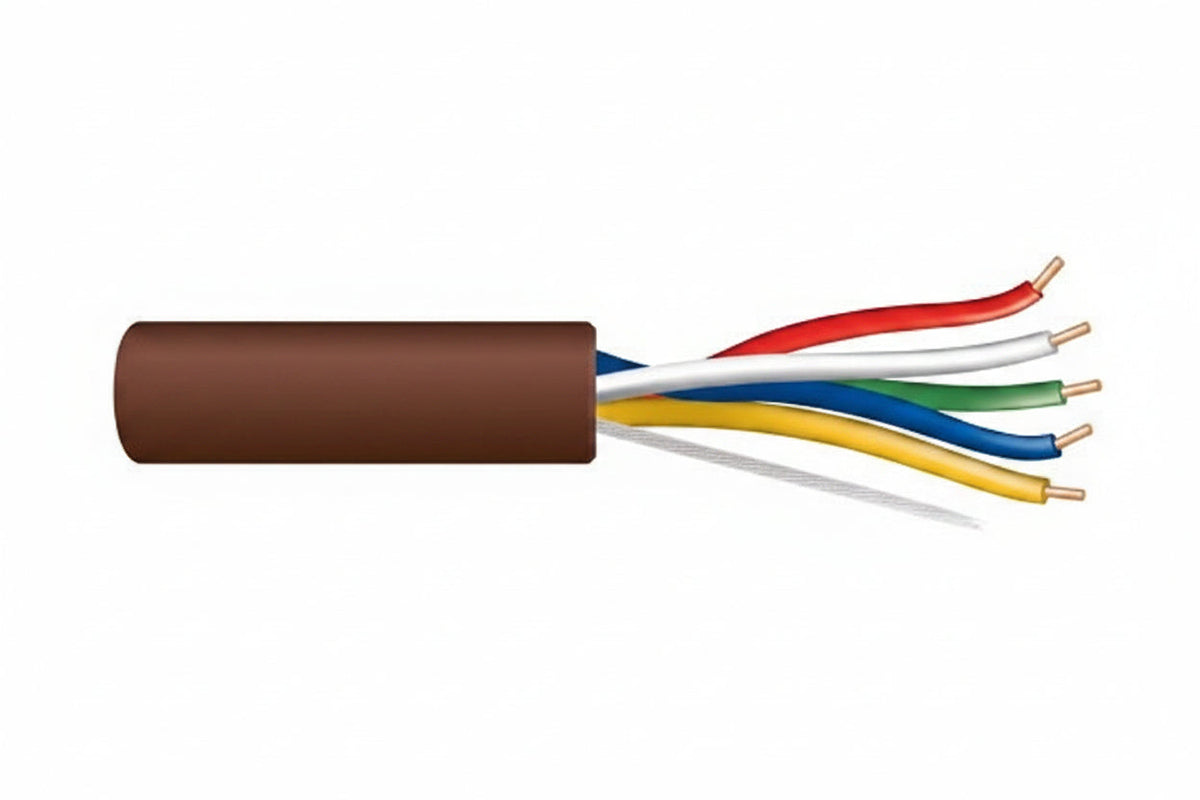

Genesis 47130907 18/5 Solid Unshielded Thermostat Cable, General Purpose, CL2, 250' (76.2 m) Speed Bag, Brown

The Genesis 47130907 is an 18/5 solid, unshielded thermostat cable with a general purpose CL2 rating, supplied as a 250' (76.2 m) speed bag in brown. It carries five solid bare copper conductors and is built for indoor thermostat wiring runs. The rip cord and sequential length marking make it easier to strip and keep track of how much cable you have used.

Key features

• Five solid 18 AWG bare copper conductors give good conductivity and low voltage drop.
• Polypropylene insulation sits under a PVC jacket.
• A built-in rip cord lets you strip and remove the jacket efficiently.
• Sequential length marking makes it simple to track usage.
• Rated for 150 volts and for temperatures from -20 °C to 60 °C.
• REACH/RoHS compliant.

Specifications

Brand: Genesis

Model: 47130907

Product Type: Thermostat Cable

American Wire Gauge: 18 AWG

Number of Conductors: 5

Conductor Material: Bare Copper

Solid or Stranded: Solid

Shielding: No

Armored: No

Insulation Material: Polypropylene (PP)

Jacket: PVC

Rating: General Purpose, CL2

Voltage Rating: 150 V

Temperature Rating: -20 °C to 60 °C

Length: 250' (76.2 m)

Packaging: Speed Bag

Color: Brown

Indoor/Outdoor: Indoor

Environmental Certification: RoHS

TAA Compliant: Yes

Country of Origin: US

Weight: 7.80 lb

Installation notes

This cable is rated for indoor use only, so keep runs inside the building and out of wet or exposed locations. Use the rip cord to open the jacket cleanly, and check the length markings before cutting so you pull only what the run needs.
