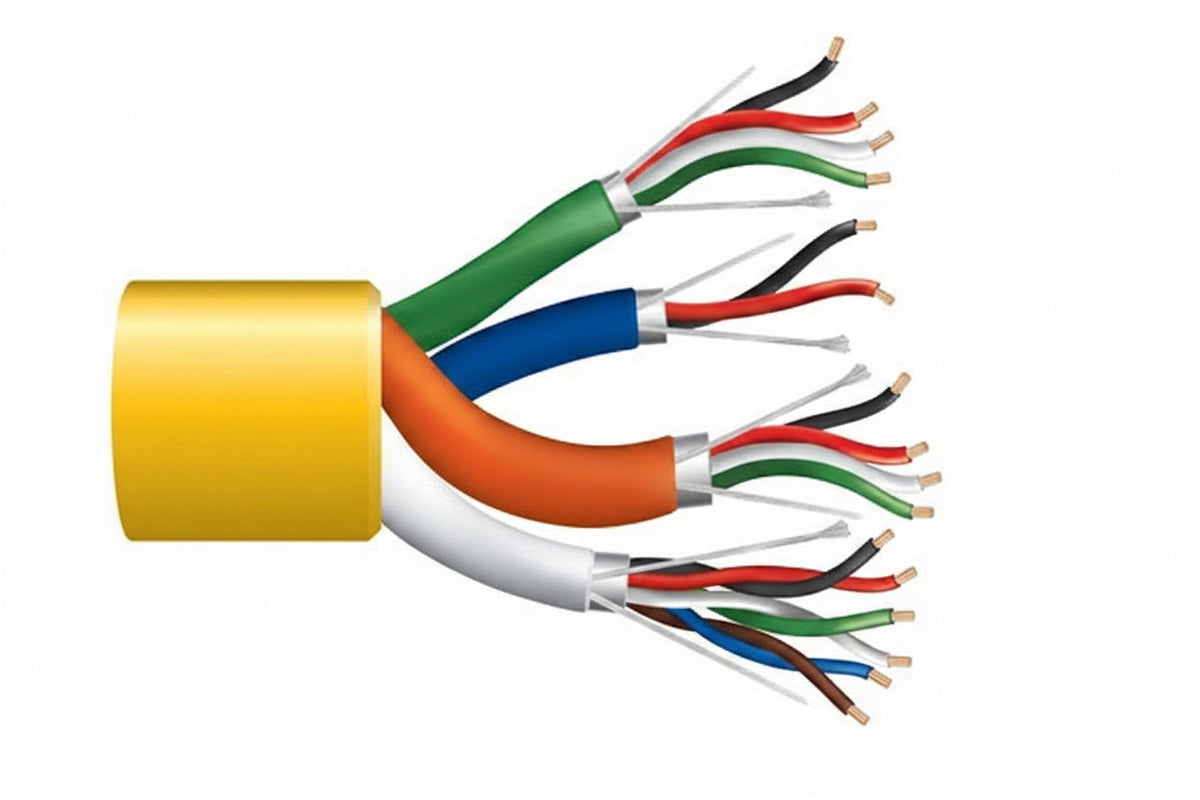

Genesis 32965002 22/6 Shielded + 22/4 Shielded + 22/2 Shielded + 18/4 Shielded Composite Access Control Cable, Plenum, CMP, FT6, 500' (152.4 m) Reel, Yellow

The Genesis 32965002 is a plenum-rated composite access control cable that bundles four shielded runs (22/6, 22/4, 22/2 and 18/4) under one overall jacket, so a single pull wires a standard access point. It suits installers running door control and card reader cabling through air-handling spaces. The shielding on every component and the countdown length markings on the 500' (152.4 m) reel are what set it apart.

Key features

• Bare copper conductors give good conductivity and low voltage drop.
• Every component is shielded, which helps in electrically noisy environments.
• Low-smoke PVC insulation is used on the conductors.
• A rip cord makes it quicker to strip and remove the jacket.
• Countdown length markings let you track how much cable you have used and how much remains.
• The cable is REACH/RoHS compliant.

Specifications

Brand: Genesis

Model: 32965002

Product Type: Security & Control Cables

Components: 22/6 Shielded + 22/4 Shielded + 22/2 Shielded + 18/4 Shielded

Rating: Plenum, CMP, FT6

Length: 500' (152.4 m) Reel

Color: Yellow

Number of Conductors: 16

American Wire Gauge: 22AWG

Conductor Material: Bare Copper

Solid or Stranded: Stranded

Insulation Material: LS-PVC

Shielding: Yes

Armored: No

Indoor/Outdoor: Indoor

Voltage Rating: 300 Volts

Temperature Rating: -20 °C to 75 °C

Environmental Certification: RoHS

TAA Compliant: Yes

Country of Origin: US

Weight: 50.20 lb

Installation notes

Terminate the shield on each component according to your system's grounding practice, and keep the cable clear of power wiring where possible. Use the rip cord to open the jacket rather than cutting into it, so the shielded components inside stay undamaged.
