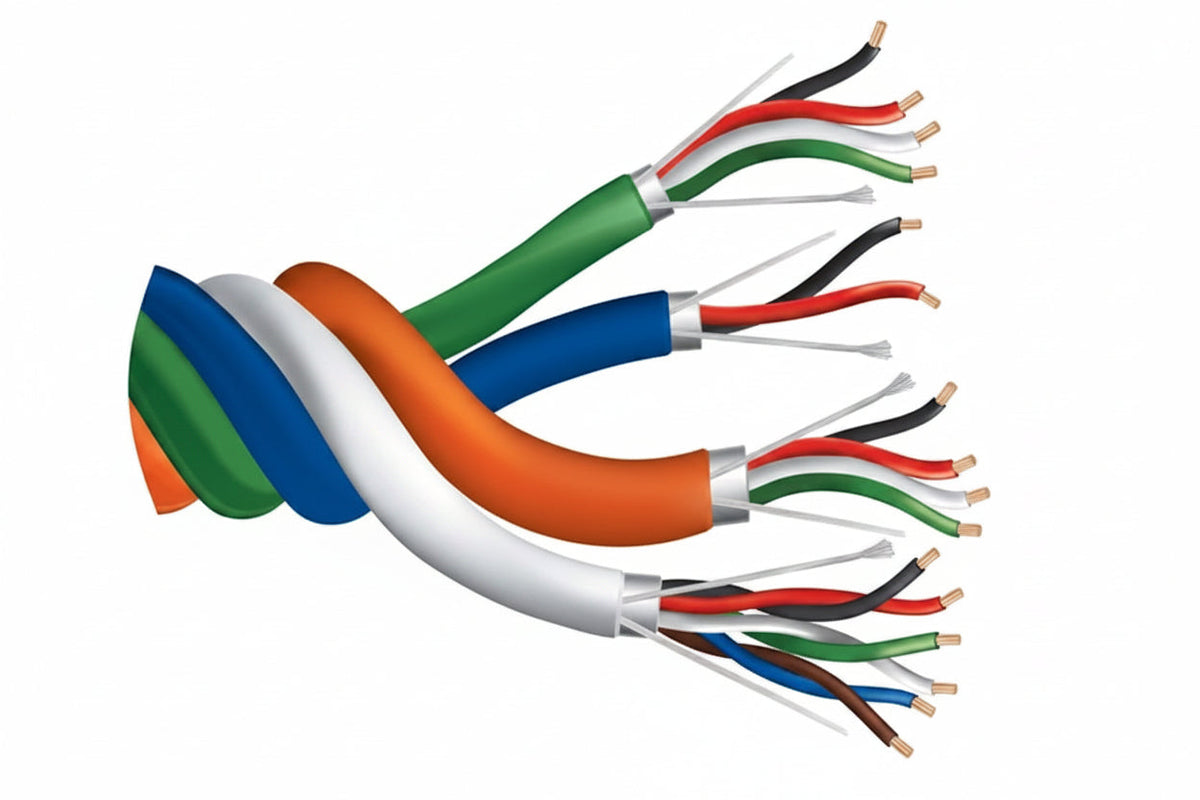

Genesis 32955099 22/6 Shielded + 22/4 Shielded + 22/2 Shielded + 18/4 Shielded Profusion Access Control Cable, Plenum, CMP, FT6, 500' (152.4 m) Reel, Unjacketed

The Genesis 32955099 is a 500' (152.4 m) reel of unjacketed, plenum-rated (CMP, FT6) access control cable from the Profusion line. It bundles 22/6 shielded, 22/4 shielded, 22/2 shielded and 18/4 shielded components into one unified pull that separates at the access point without an overall jacket. It suits installers running access control wiring through indoor plenum spaces, and its fully shielded components stand out in electrically noisy environments.

Key features

• Bare copper conductors give excellent conductivity and low voltage drop.
• Every component is shielded for extra protection in noisy environments.
• Low-smoke PVC insulation is used on the conductors.
• A rip cord makes jacket stripping and removal more efficient.
• Countdown length markings make it easy to track usage and remaining cable.
• The cable is rated for 300 volts and for -20 °C to 75 °C.

Specifications

Brand: Genesis

Model: 32955099

Product Line: Profusion Access Control Cable

Product Type: Security & Control Cables

Rating: Plenum, CMP, FT6

Length: 500' (152.4 m) Reel

Jacket: Unjacketed

Color: Blue

Conductor Material: Bare Copper

Conductor Count: 16

American Wire Gauge: 22AWG

Solid or Stranded: Stranded

Insulation Material: LS-PVC

Shielding: Yes

Armored: No

Indoor/Outdoor: Indoor

Voltage Rating: 300 V

Temperature Rating: -20 °C to 75 °C

Environmental Certification: RoHS

Compliance: REACH/RoHS

TAA Compliant: Yes

Country of Origin: US

Weight: 47.00 lb

Installation notes

Pull the bundle as a single unit and use the rip cord to open it where the components need to break out at the access point. Keep the shielded components properly terminated and away from noisy power runs, and watch the countdown markings to plan cut lengths.
