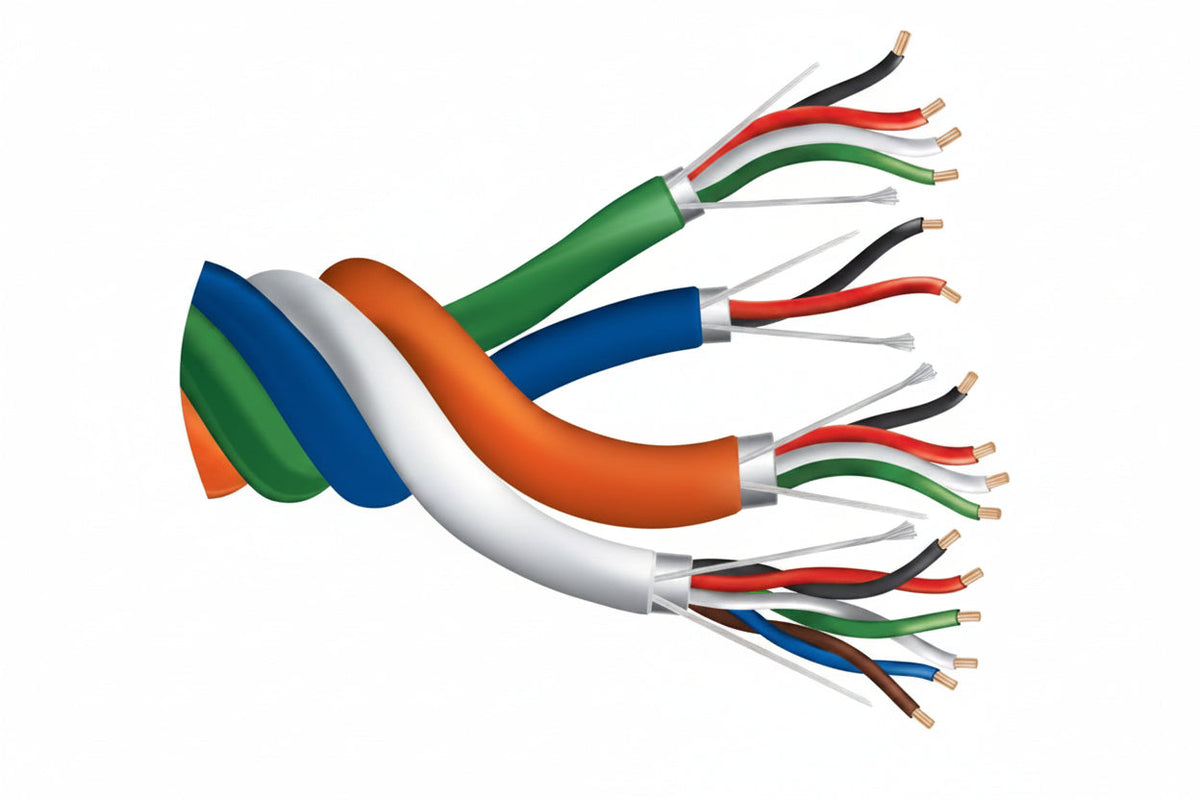

Genesis 32951099 22/6 Shielded + 22/4 Shielded + 22/2 Shielded + 18/4 Shielded Profusion Access Control Cable, Plenum, CMP, FT6, 1000' (304.8 m) Reel, Unjacketed

The Genesis 32951099 Profusion Access Control Cable bundles four individually shielded components (22/6, 22/4, 22/2 and 18/4) into one unjacketed, plenum-rated (CMP, FT6) run on a 1000' (304.8 m) reel. It suits installers pulling access control wiring through air-handling spaces who want a single unified bundle that separates easily at the access point instead of dealing with an overall jacket. Shielding on every component and countdown length markings are what set it apart.

Key features

• Bare copper conductors give good conductivity and low voltage drop.
• Every component is shielded, which helps in electrically noisy environments.
• A rip cord makes jacket stripping and removal more efficient.
• Countdown length markings make it easy to track cable used and remaining.
• Low-smoke PVC insulation is used, and the cable is REACH/RoHS compliant.
• It is rated for 300 volts and for temperatures from -20 °C to 75 °C.

Specifications

Brand: Genesis

Model: 32951099

Product line: Profusion Access Control Cable

Construction: 22/6 Shielded + 22/4 Shielded + 22/2 Shielded + 18/4 Shielded

Rating: Plenum, CMP, FT6

Length and packaging: 1000' (304.8 m) reel

Jacket: Unjacketed

Number of conductors: 16

American wire gauge: 22AWG

Conductor material: Bare copper

Solid or stranded: Stranded

Insulation material: LS-PVC

Shielding: Yes

Armored: No

Color: Blue

Indoor/outdoor: Indoor

Voltage rating: 300 V

Temperature rating: -20 °C to 75 °C

Environmental certification: RoHS

TAA compliant: Yes

Country of origin: US

Weight: 88.20 lb

Installation notes

Because the bundle has no overall jacket, handle it carefully during the pull and separate the components only at the access point. Terminate the shields according to good practice for each device, and keep the run away from sources of electrical noise where you can.
