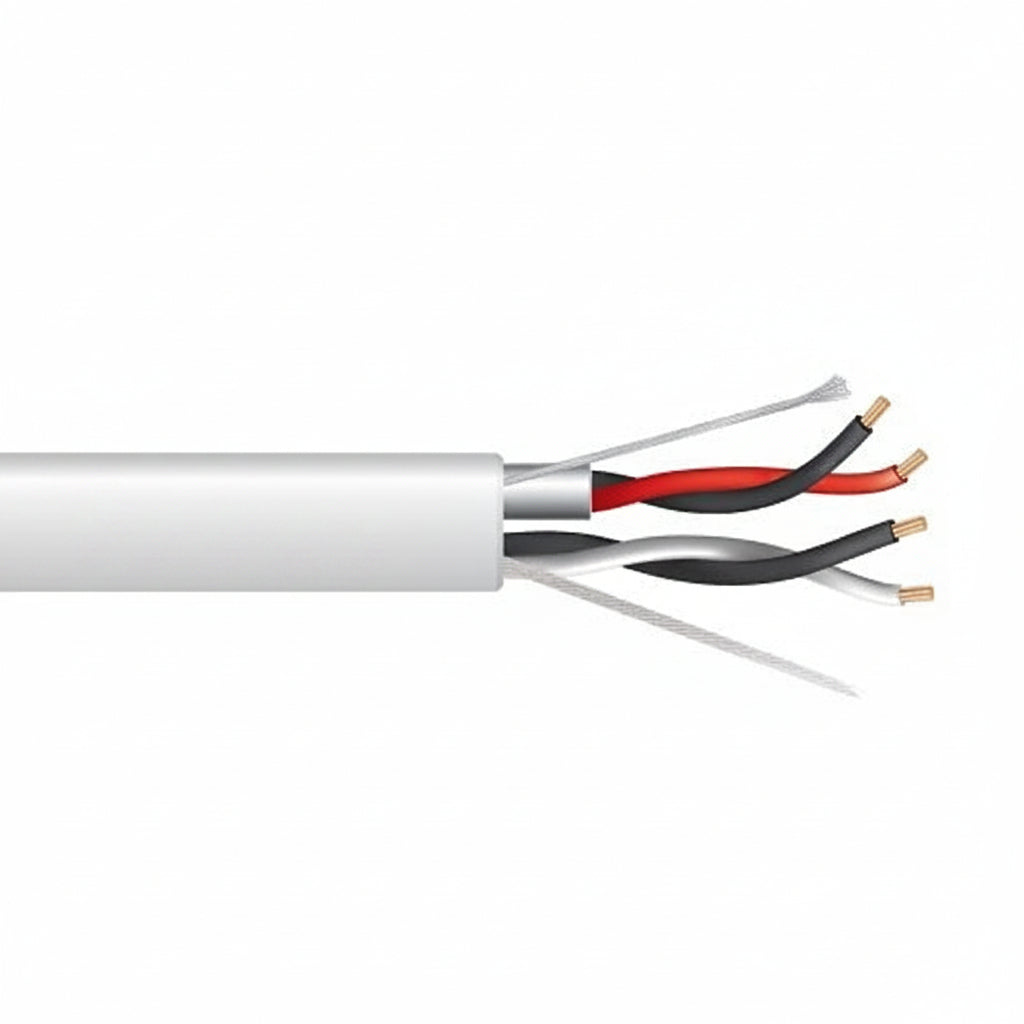

Genesis 32705512 22/2-Pair Stranded 1-Pair Shielded Cable, Plenum, CMP, FT6, 500' (152.4 m) Pull Box, Natural

The Genesis 32705512 is a 22 AWG, 2-pair stranded cable with a foil shield over one pair, supplied as a 500' (152.4 m) pull box in natural. It has a plenum (CMP, FT6) rating and carries low-voltage signals for security, controls, audio and other indoor applications. It suits installers who need a shielded pair alongside an unshielded pair in one jacket, with bare copper conductors and a rip cord that helps with jacket stripping.

Key features

• Bare copper conductors give good conductivity and low voltage drop.
• Low-smoke PVC insulation is used on the conductors.
• A foil shield covers one of the two pairs.
• A rip cord makes it quicker to strip and remove the jacket.
• Countdown length markings let you track how much cable you have used and how much is left.
• The cable is rated for 300 volts and for -20 °C to 75 °C, and it is REACH/RoHS compliant.

Specifications

Brand: Genesis

Model: 32705512

Product type: Networking Cable

Rating: Plenum, CMP, FT6

Length and packaging: 500' (152.4 m) pull box

Jacket color: Natural

Conductor gauge: 22 AWG

Conductor type: Stranded

Conductor material: Bare copper

Number of pairs: 2

Number of conductors: 4

Shielding: Yes, foil shield over one pair

Insulation material: LS-PVC

Armored: No

Indoor/Outdoor: Indoor

Voltage rating: 300 V

Temperature rating: -20 °C to 75 °C

Environmental certification: RoHS

TAA compliant: Yes

Country of origin: US

Weight: 9.60 lb

Installation notes

Confirm which pair is shielded before terminating, and connect the shield at the appropriate end according to the equipment's instructions. Pull the cable from the box without kinking it, and keep it clear of power wiring where possible.
