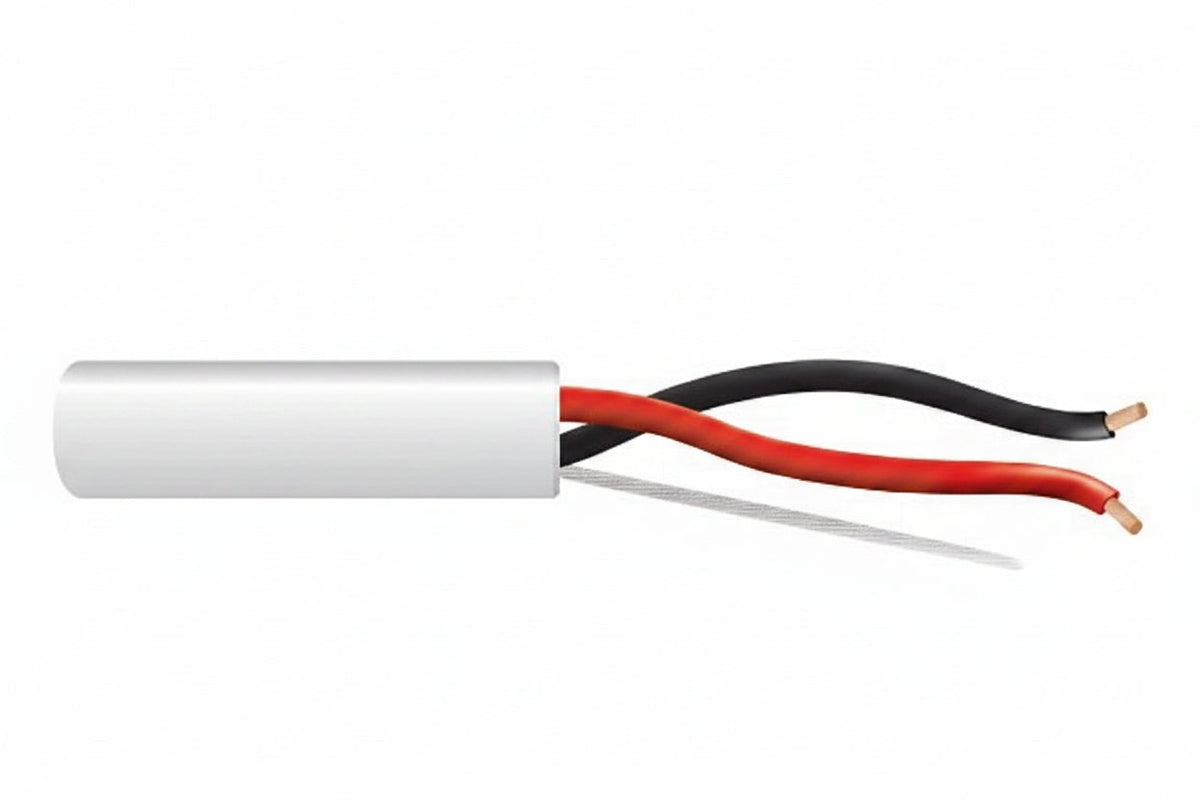

Genesis 31215512 16/2 Stranded Unshielded Cable, Plenum, CMP, FT6, 500' (152.4 m) Pull Box, Natural

The Genesis 31215512 is a 16/2 stranded, unshielded control cable with a plenum (CMP, FT6) rating, supplied in a 500' (152.4 m) pull box in natural. It carries low-voltage control and security signals through indoor spaces, including air-handling areas, and suits installers who need plenum-rated 16 AWG two-conductor cable. Bare copper conductors, a rip cord and countdown length markings make it easier to pull, strip and track on the job.

Key features

• Bare copper conductors give good conductivity and low voltage drop.
• Low-smoke PVC insulation covers the conductors.
• A rip cord lets you strip and remove the jacket efficiently.
• Countdown length markings show how much cable you have used and how much remains.
• It is rated for 300 volts and for temperatures from -20 °C to 75 °C.
• It is REACH and RoHS compliant.

Specifications

Brand: Genesis

Model: 31215512

Product Type: Security & Control Cables

Gauge/Conductors: 16/2

American Wire Gauge: 16 AWG

Number of Conductors: 2

Number of Pairs: 1

Solid or Stranded: Stranded

Conductor Material: Bare Copper

Insulation Material: LS-PVC

Shielding: No

Armored: No

Rating: Plenum, CMP, FT6

Length: 500' (152.4 m)

Packaging: Pull Box

Color: Natural

Indoor/Outdoor: Indoor

Voltage Rating: 300 V

Temperature Rating: -20 °C to 75 °C

Environmental Certification: RoHS

TAA Compliant: Yes

Country of Origin: US

Weight: 12.60 lb

Installation notes

This is an indoor-only cable, so keep it out of outdoor runs. Pull it from the box without kinking, and use the countdown markings to cut runs to length with minimal waste.
