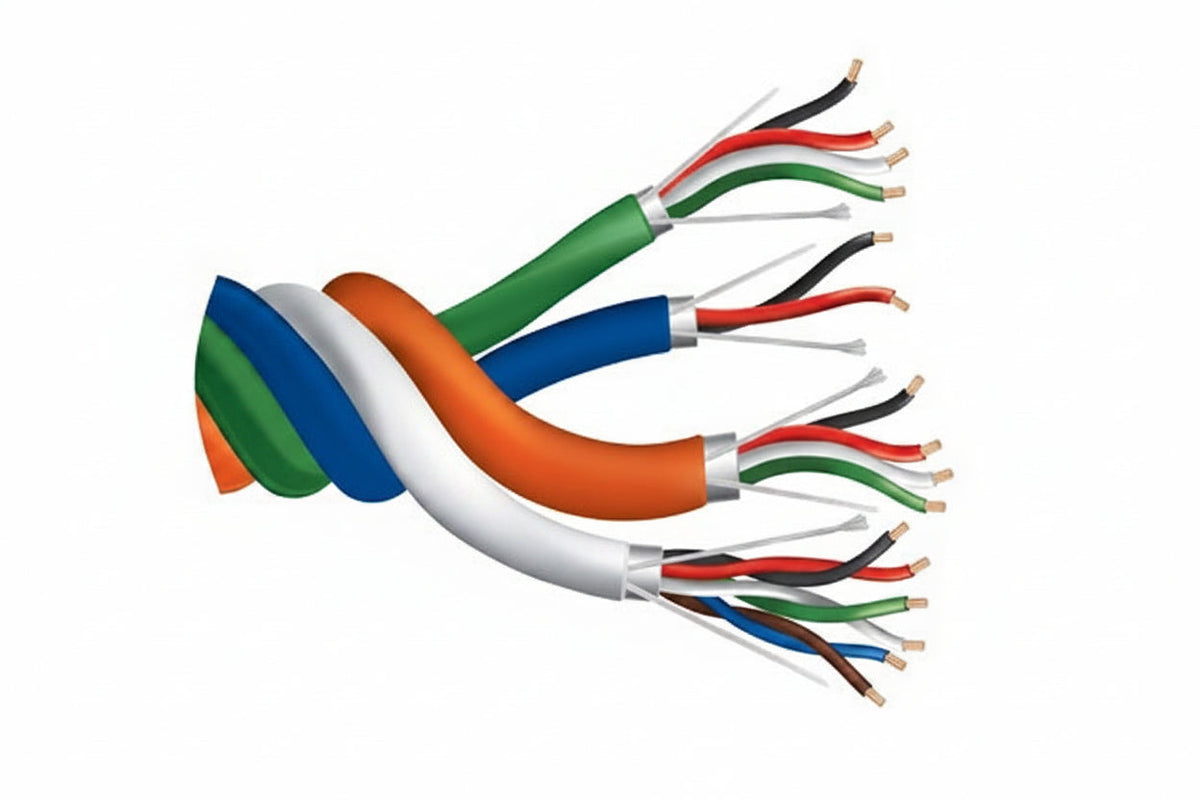

Genesis 22955099 22/6 Stranded Shielded + 22/4 Stranded Shielded + 22/2 Stranded Shielded + 18/4 Stranded Shielded Profusion Access Control Cable, Riser, CMR, FT4, 500' (152.4 m) Reel, Unjacketed

The Genesis 22955099 is a 500' (152.4 m) reel of Profusion access control cable that bundles four shielded stranded groups (22/6, 22/4, 22/2 and 18/4) into one unjacketed riser-rated (CMR, FT4) pull. It suits installers running access control wiring who want a single bundle through the pull that separates easily at the access point. The all-components shielding helps in electrically noisy environments, and the countdown length markings make it easy to track what is left on the reel.

Key features

• Bare copper conductors give excellent conductivity and low voltage drop.
• Every component is shielded for added protection in noisy environments.
• A durable rip cord makes stripping and removing the jacket more efficient.
• Countdown length markings show how much cable you have used and how much remains.
• Polypropylene insulation and a PVC jacket are rated for 300 volts and -20 °C to 75 °C.
• The cable is sunlight resistant (UV) rated and REACH/RoHS compliant.

Specifications

Brand: Genesis

Model: 22955099

Product line: Profusion Access Control Cable

Configuration: 22/6 + 22/4 + 22/2 + 18/4, stranded, shielded

Number of conductors: 16

Conductor material: Bare copper

Wire gauge: 22 AWG

Insulation: Polypropylene (PP)

Shielding: Yes

Armored: No

Rating: Riser, CMR, FT4

Voltage rating: 300 V

Temperature rating: -20 °C to 75 °C

Color: Blue

Indoor/Outdoor: Indoor

Packaging: 500' (152.4 m) reel, unjacketed

Environmental certification: RoHS

TAA compliant: Yes

Country of origin: US

Weight: 39.70 lb

Installation notes

Keep the bundle together through the pull and separate the components at the access point, using the rip cord to open the jacket cleanly. Terminate the shields according to good practice for the equipment you are connecting, and use the countdown markings to plan runs and avoid waste.
