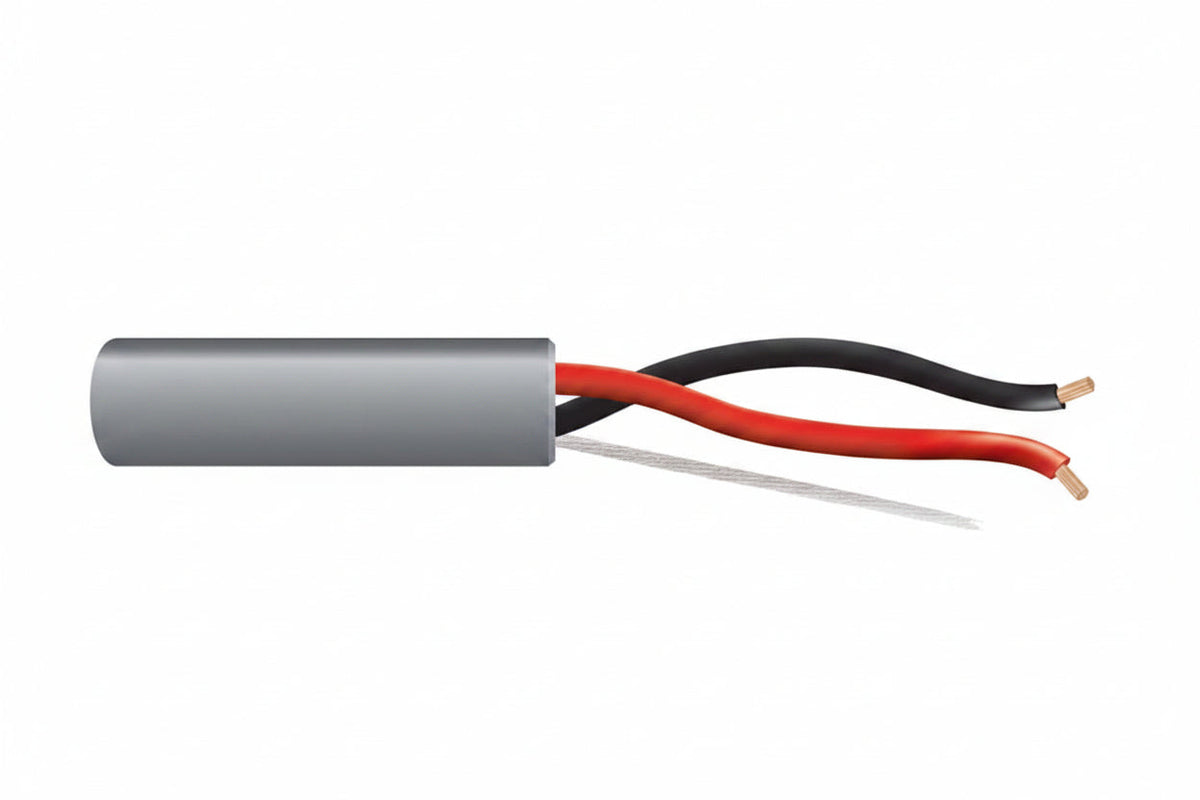

Genesis 21141109 18/2 Stranded Unshielded Cable, Riser, CMR, FT4, 1000' (304.8 m) Pull Box, Gray

The Genesis 21141109 is an 18/2 stranded, unshielded control cable with a gray PVC jacket, supplied in a 1000' (304.8 m) pull box. It is a riser-rated (CMR, FT4) cable for indoor control and security runs, suited to installers who need a single 2-conductor 18 AWG cable for low-voltage wiring. The bare copper conductors help keep voltage drop low, and the countdown length markings make it easy to track how much cable is left.

Key features

• Bare copper conductors give good conductivity and low voltage drop.
• Polypropylene insulation sits under a PVC jacket.
• A rip cord makes it quicker to strip and remove the jacket.
• Countdown length markings show how much cable you have used and how much remains.
• The cable is rated for 300 volts and for temperatures from -20 °C to 75 °C.
• It is UV (sunlight) resistant rated and REACH/RoHS compliant.

Specifications

Brand: Genesis

Model: 21141109

Product Type: Security & Control Cables

Construction: 18/2, 18 AWG, stranded

Number of Conductors: 2

Number of Pairs: 1

Conductor Material: Bare Copper

Insulation Material: PP

Jacket: PVC

Shielding: No

Armored: No

Rating: Riser, CMR, FT4

Voltage Rating: 300 V

Temperature Rating: -20 °C to 75 °C

Indoor/Outdoor: Indoor

Color: Gray

Length and Packaging: 1000' (304.8 m) Pull Box

Environmental Certification: RoHS

TAA Compliant: Yes

Country of Origin: US

Weight: 15.60 lb

Installation notes

Pull cable straight from the box to avoid kinks and twists, and keep the bend radius gentle through conduit and around corners. Use the rip cord to open the jacket cleanly, and confirm the cable rating suits the space before running it.
