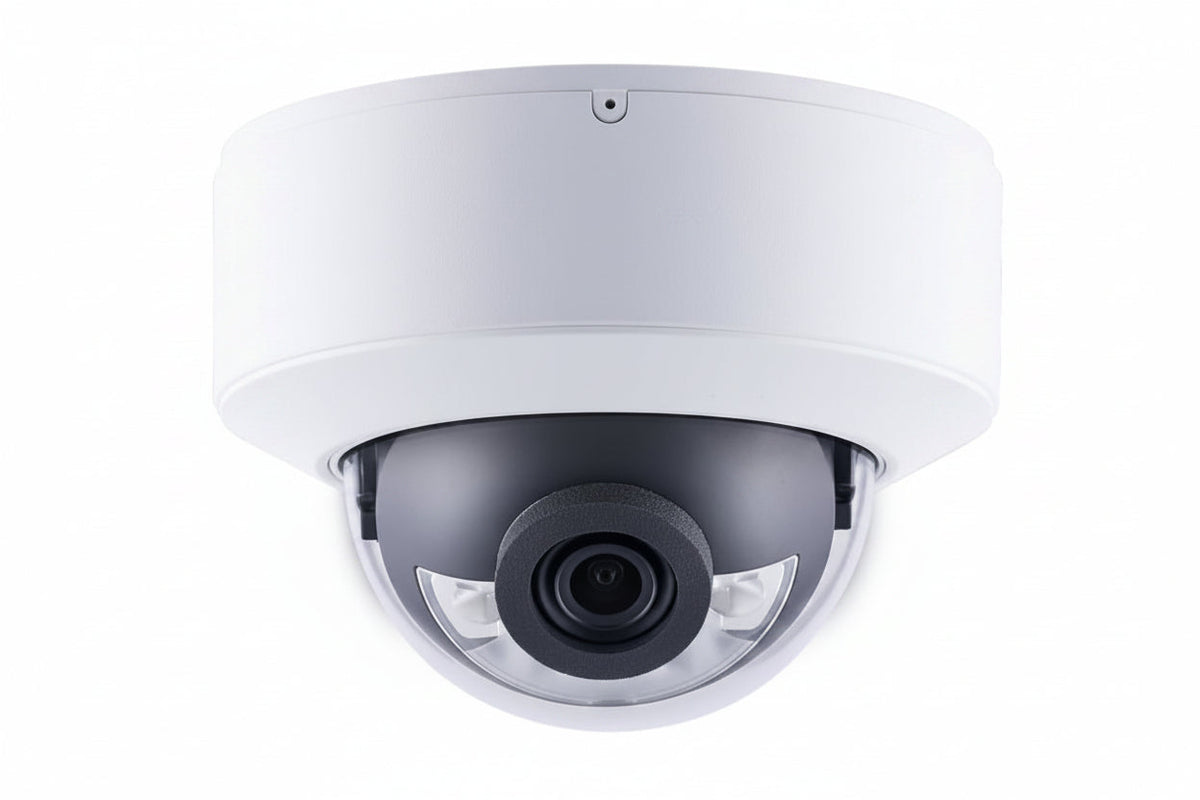

GeoVision 125-GDRF480-2F10 AI 4MP Super Low Lux WDR Pro Full Color LED IR Mini Rugged IP Dome Camera, 2.8mm Fixed Lens, White

The GeoVision 125-GDRF480-2F10 is a 4MP mini rugged IP dome camera in white, built for video surveillance in low-light and high-contrast scenes. It suits installers and businesses that want AI-based human and vehicle detection for perimeter protection, along with full-color night imaging from its white LED illumination. A 0.005 lux minimum illumination and IP67 rating are what set it apart.

Key features

• AI deep learning handles perimeter protection and classifies detections as human or vehicle.
• A 1/3″ progressive scan CMOS sensor delivers up to 30 fps at 2560 x 1440.
• Triple streams are available in H.265, H.264 and MJPEG.
• Smart White LED and IR illumination each reach up to 30 m (100 ft), with Intelligent IR.
• Wide Dynamic Range Pro (WDR Pro) helps with scenes that mix bright and dark areas.
• IP67 ingress protection suits outdoor placement.

Specifications

Brand: GeoVision

Model: 125-GDRF480-2F10

Product type: Mini Rugged Dome IP Camera

Effective resolution: 4MP

Sensor: 1/3″ progressive scan CMOS

Lens: 2.8mm fixed

Frame rate: Up to 30 fps at 2560 x 1440

Minimum illumination: 0.005 lux

Video compression: H.265, H.264, MJPEG (triple streams)

IR distance: Up to 30 m (100 ft)

Smart White LED distance: Up to 30 m (100 ft)

Ingress protection: IP67

Color: White

Installation notes

Because the lens is fixed, aim the camera and check the field of view before final mounting so the target area is covered. Seal the cable entry and any outdoor connections properly, and avoid pointing the camera at reflective surfaces close to the lens, which can bounce back the IR or white LED light.
