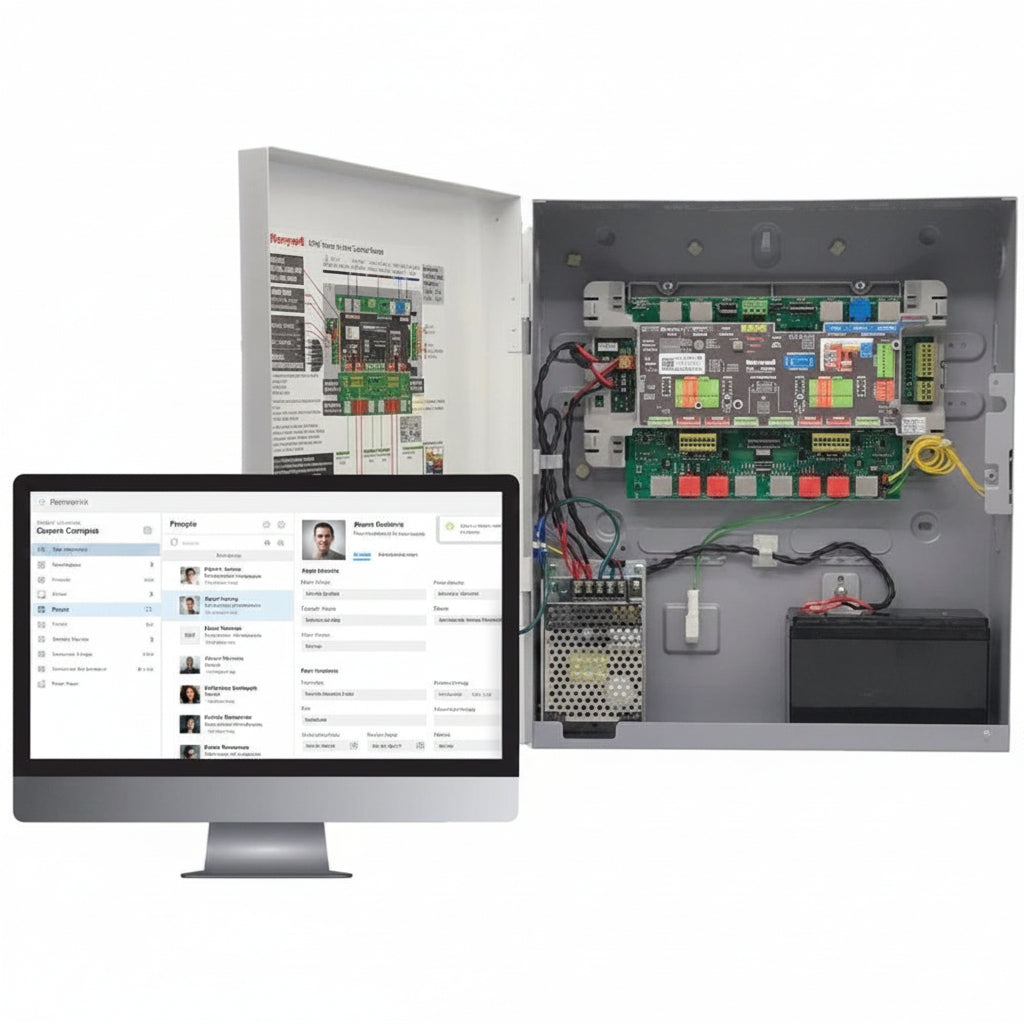

Honeywell MPA4MPSU 4-Door MPA4 Controller and Metal Enclosure, PSU, Includes 4-MPA2RJ, 4-MPA2S5 and MPA2BAT7 (US)

The Honeywell MPA4MPSU is a four-door access controller from the MAXPRO line, supplied with a metal enclosure and power supply. It handles door access control for four doors and suits installers and businesses who want a networked panel that also works with existing readers. Its OSDP and 256-bit AES encrypted communications, along with PoE+ or mains power, are the main points that set it apart.

Key features

• An installation app helps make setup quick and easy.
• Communications are secured end to end over OSDP and protected with 256-bit AES encryption.
• Wiegand support allows the panel to be retrofitted into existing installations.
• A Fire Alarm Control Panel (FACP) input can open all doors.
• IP-based hardware powered by PoE+ or mains removes the need for additional network module wiring.
• Cascade mode lets you connect a new panel to the previous one instead of wiring back to the first.

Specifications

Brand: Honeywell

Model: MPA4MPSU

Product Line: MAXPRO

Product Type: Door Access Control Panel

Product Model: MPA4

Number of Doors: 4

Country of Origin: US

Installation notes

Mount the enclosure in a secure, accessible location such as a utility or IT room, close to the doors it will serve and to a suitable power source or PoE+ network connection. Plan the cable routes for readers and the network before mounting, and test each door and the FACP input during commissioning.
